NEP10-V2 Mini IP Gateway SRT/HTTP/ UDP/HLS/RTMP/RTSP/UDP/RTP IP Stream Converter

Model Number:  NEP10-V2

Brand: Softel

MOQ: 1

gou  4 Data ports for input/output

gou  Support IP anti-jitter function

gou  Support about 8-12 HD/SD programs

Product Detail

Technical Parameters

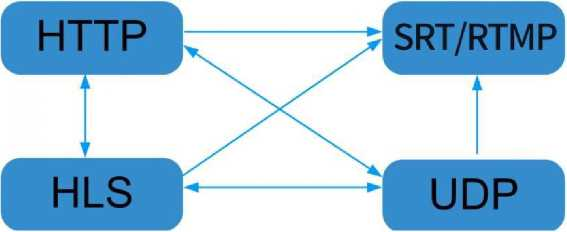

IP Protocol Conversion

Download

01

Product Description

Brief Introduction

The portable IP Gateway NEP10-V2 is a device which is used for the protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over SRT, HTTP,UDP, RTP, RTSP and HLS protocol. The system can achieve the integration by receiving a variety of commercial streaming media services. Also, the system can provide streaming media services directly.



Functional Features

- 4 Data ports for input/output
- Data ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS
                        IP out over SRT, HTTP, HLS RTP/RTSP and RTMP (Unicast)
- Support IP anti-jitter function
- Support about 8-12 HD/SD programs (Bitrate:8Mbps) When SRT/HTTP/RTP/RTSP/HLS is converted into UDP (Multicast)
- Control via web-based NMS management through DATA port

NEP10-V2 Mini IP GatNEP10-V2 Mini IP Gateway IP Stream Convertereway IP Stream Converter
Input IP input through DATA1/DATA2 (1000M) over HTTP, UDP(SPTS), RTP(SPTS), RTSP and HLS.
IP output IP out through DATA 1 /DATA2 (1000M) over SRT(Multicast), HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP(Program source should be H.264 and AAC encoding)
System Support about 8-12 HD/SD programs (Bitrate :8Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast)
  Web-based NMS management through DATA port
General Demission 180mmx 110mmx40mm (WxLxH)
Temperature 0-45 °C (operation), -20〜80 °C (storage)
Power Supply AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz

NEP10-V2

NEP10-V2 Mini IP Gateway IP Stream Converter Datasheet.pdf
