Industrial automation is the cornerstone of modern manufacturing and production processes, and the importance of reliable communication networks lies at the heart of this evolution. These networks act as crucial data pathways that connect various components of automated systems. One essential element enabling such seamless communication is the PROFINET cable, which is specifically designed to meet the stringent requirements of industrial Ethernet.
These cables are engineered to withstand harsh environments, provide high-speed data transmission, and ensure minimal downtime—capabilities that are vital for maintaining efficiency and productivity in industrial operations. PROFINET cables are classified into four types: Type A for fixed installation, Type B for flexible installation, Type C for continuous motion with dynamic flexibility, and Type D for wireless infrastructure support. Each type is tailored to specific levels of mechanical stress and environmental conditions. Standardization ensures seamless deployment across industries and suppliers.
This article provides an analysis of the four types of PROFINET cables.
1. Type A: Fixed Installation Cables

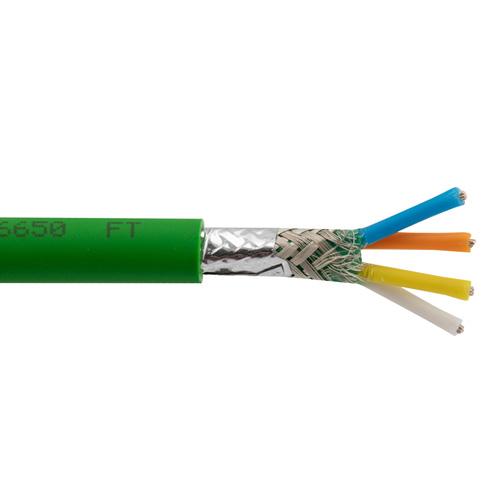

Cat5e bulk Profinet cable, SF/UTP double shielding, 2 pairs, 22AWG solid conductor, industrial outdoor PLTC TPE jacket, green—designed for Type A.
Type A PROFINET cables are designed for fixed setups with minimal movement. They feature solid copper conductors that offer excellent signal integrity and long-term stability. These cables employ robust insulation and shielded twisted pairs to ensure strong electromagnetic compatibility (EMC) protection in environments where interference could disrupt data transmission.
They are typically used in control cabinets, permanently installed equipment, and other static production environments. Their advantages include affordability and reliable performance in fixed installations. However, Type A cables are unsuitable for applications requiring frequent bending or mechanical movement, as solid conductors may fatigue under repeated stress.
2. Type B: Flexible Installation Cables

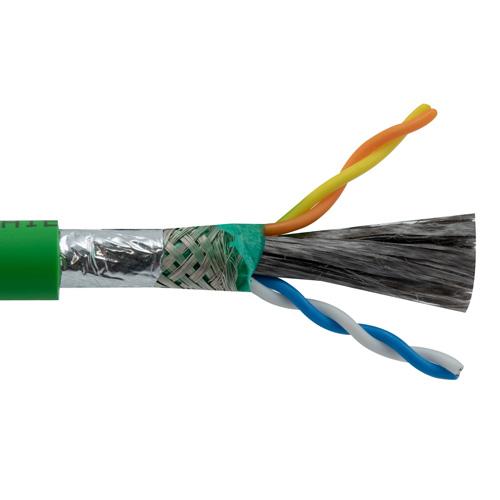

Cat5e bulk Profinet cable, SF/UTP double shielding, 2 pairs, 22AWG stranded conductors, industrial outdoor PLTC-ER CM TPE jacket, green—used for Type B or C.
Compared with Type A, Type B cables use stranded copper conductors to deliver greater mechanical flexibility. They feature durable PUR or PVC jackets that resist oil, chemicals, and moderate mechanical stress. These properties make them ideal for machines with occasional movement, adjustable production lines, or environments where cables may need repositioning during maintenance or reconfiguration.
Type B cables are more adaptable and resilient than fixed-installation cables, but they are not designed for continuous bending or constant movement. Their moderate flexibility provides a balanced solution for semi-dynamic applications without incurring the higher cost of continuous-flex cables.
3. Type C: Continuous-Flex Cables
Type C PROFINET cables are engineered for environments involving continuous motion and high mechanical stress. They contain ultra-fine stranded conductors paired with highly flexible insulation and shielding materials to maintain electrical performance over millions of bending cycles. Reinforced outer jackets offer exceptional durability, enabling these cables to operate reliably in drag chains, robotic arms, and conveyor systems.
Type C cables are commonly used in robotics, automotive assembly lines, and other heavy industrial automation applications where continuous motion is required. Their primary limitation is their higher cost, resulting from specialized construction and materials designed for long service life under extreme wear.
4. Type D: Wireless Infrastructure Cables
Type D cables are designed to support modern wireless architectures that integrate both copper and fiber elements to enhance network adaptability. These cables are typically used to connect wireless access points within smart factories, forming the backbone of IoT and mobile systems. Their design enables hybrid infrastructure deployments that support both wired and wireless connectivity—essential for Industry 4.0 environments focused on flexibility and real-time communication.
The main advantages of Type D cables include improved mobility, scalability, and compatibility with advanced automation networks. However, successful implementation requires careful network design and planning to ensure consistent wireless coverage and avoid signal disruption in complex industrial spaces.
5. How to Choose the Right PROFINET Cable
There are four major factors to consider when selecting a PROFINET cable:
-
Installation type: fixed, flexible, or continuous motion
-
Environmental conditions: exposure to oil, chemicals, or UV
-
EMC requirements: shielding level needed in noisy environments
-
Future-proofing: selecting higher categories (Cat6/7) for greater bandwidth needs
6. Cross-Industry Applications
PROFINET cables are especially valuable in manufacturing, robotics, process industries, and logistics.
-
Manufacturing: Type A for control panels; Type B for semi-flexible systems
-
Robotics: Type C provides reliability under repetitive motion
-
Process industries: Type A and B for stable connections in chemical and food processing
-
Logistics: Type D supports wireless connectivity for AGVs and smart warehouses
7. Tips Engineers Should Know
L-com provides four useful recommendations:
-
Use Type A for static wiring to reduce costs.
-
Choose Type C for robotics to avoid frequent cable replacement.
-
Select PUR jackets for environments with oil or chemicals.
-
Combine copper and fiber where long-distance high-speed connections are required.
8. Frequently Asked Questions About PROFINET Cable Types
Q1: What are the main differences between PROFINET cable types?
A: The primary difference lies in mechanical flexibility:
Type A is fixed, Type B is flexible, Type C is high-flex, and Type D supports wireless infrastructure.
Q2: Can I use Type A cables in mobile applications?
A: No. Type A is designed for fixed installation. Use Type B or Type C for moving parts.
Q3: Which cable type is best for robotics?
A: Type C is ideal, as it withstands continuous bending.
Q4: Do PROFINET cable types affect data speed?
A: No. Data speed is determined by the cable category (Cat5e, 6, 7).
Cable types (A–D) relate mainly to mechanical stresses and installation environments.
