Servo systems are the backbone of modern automation, robotics, and precision manufacturing. At the heart of these systems lies a critical yet often overlooked component: servo cables. Power cables supply the electrical energy required to operate motors, while feedback cables transmit position data to ensure optimal performance. In addition, encoder cables play a vital role in conveying speed and direction information, significantly enhancing the efficiency and responsiveness of servo systems.
These specialized cables are essential for transmitting power and feedback signals between servo motors, controllers, and encoders, enabling precise motion control. For engineers and technicians involved in advanced machine design and maintenance, a solid understanding of the fundamentals of servo cables is indispensable. As industries continue to adopt automation technologies, in-depth knowledge of servo cables is increasingly important for improving system performance and achieving operational success.
I. What Is a Servo Cable?
Servo cables are specialized industrial cables designed to connect servo motors to their respective drives and controllers. Unlike standard cables, servo cables are engineered to:
-
Handle high voltages and currents (for power transmission)
-
Transmit sensitive control signals (for feedback and encoders)
-
Withstand continuous motion, bending, twisting, and harsh environments
-
Provide excellent shielding to minimize electromagnetic interference (EMI)
These characteristics make servo cables indispensable in industries such as robotics, CNC machining, packaging, textiles, automotive manufacturing, and renewable energy systems.
II. Technical Characteristics of Servo Cables
-
Rated Voltage: Typically 300 V to 1000 V, depending on motor power requirements
-
Shielding: Braided, foil, or hybrid shielding to minimize EMI and RFI
-
Flexibility: Designed for drag-chain applications and continuous motion
-
Insulation Materials:
-
PVC (general purpose)
-
PUR (oil- and chemical-resistant)
-
TPE (high flexibility)
-
-
Standards Compliance: UL, CSA, CE, RoHS certified
III. Types of Servo Cables

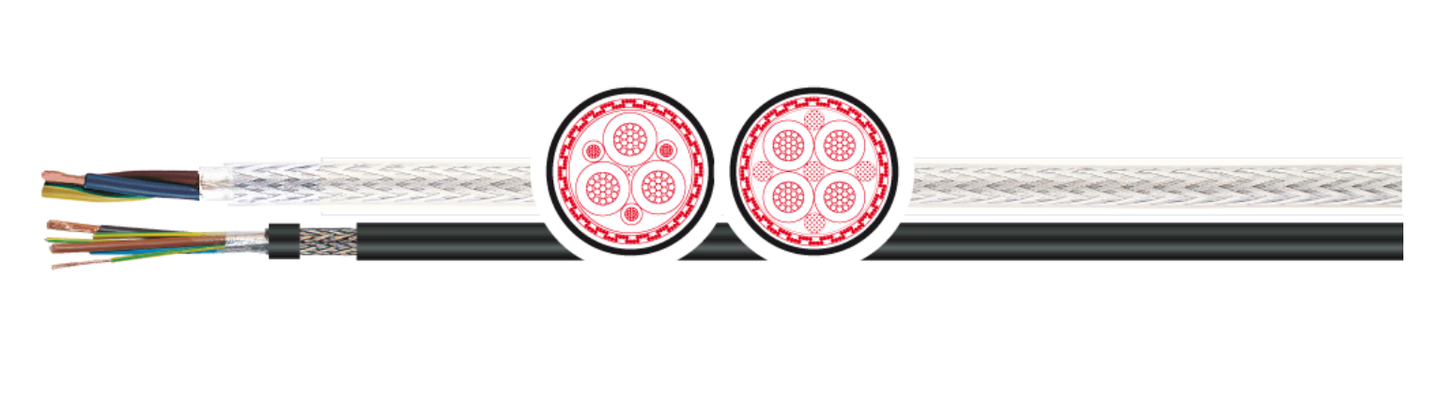

Power Servo Cables
Power servo cables deliver electrical power from the servo drive to the motor. They offer high voltage and current capacity, resistance to oil, heat, and chemicals, and EMC shielding to minimize noise. These cables are commonly used in robotic conveyors, industrial machinery, and CNC equipment.
Feedback Servo Cables
Feedback servo cables transmit critical signals from the motor back to the controller, including position, speed, and torque data. They support low-level analog and digital signals and typically feature double shielding to resist EMI, along with twisted pairs to ensure signal integrity. They are used in closed-loop motion systems that require high precision and stability.
Encoder Servo Cables
Encoder servo cables connect encoders to controllers and transmit digital pulses or absolute position data. They support high-frequency signal transmission and use shielded twisted pairs to reduce crosstalk. Designed for continuous bending in dynamic machinery, they are widely used in robotics, CNC machine tools, and any system requiring precise motor positioning.
IV. Key Differences Between Servo Cables and VFD Cables
Among the various types of cables used in motor control systems, servo cables and variable frequency drive (VFD) cables stand out due to their specific applications and functional characteristics. Although both are integral to motor and drive operation, they serve distinctly different purposes and are designed to meet unique electrical and environmental requirements.
Servo cables are primarily used in closed-loop control systems, where accurate feedback and fast response times are essential to ensure precise motion control of servo motors. In contrast, VFD cables are tailored for variable frequency drives and are designed to efficiently manage the speed and torque of AC motors while minimizing electromagnetic interference.
In short, while both are designed for motor control, they differ in function:
-
Servo cables: Power + feedback/encoder signals
-
VFD cables: Primarily for VFD applications, optimized for power transmission with EMC protection
V. Applications of Servo Cables
Servo cables are used across a wide range of applications. In robotics and automation, they support high-precision motion. In CNC machinery, they enable accurate cutting, drilling, and forming. Textile and packaging machines rely on them for fast, repetitive movements. The automotive industry uses servo cables in robotic arms and conveyor systems. In renewable energy, they support wind turbines and solar tracking systems.
VI. Best Practices for Selecting and Using Servo Cables
When selecting and using servo cables, it is essential to match the cable type with the motor’s voltage and current ratings. Environmental conditions—such as temperature, exposure to oil, and chemicals—should be carefully evaluated. Shielded feedback and encoder cables should be used to prevent electromagnetic interference. For dynamic applications, PUR or TPE jacketed cables with drag-chain ratings are recommended.
Servo cables are critical connectivity components in motion control systems, enabling precise, efficient, and reliable motor operation.
