ndustrial-grade fiber optic transmission often operates in harsh environments where waterproof and dustproof protection is essential. Fiber optic cables with an IP68 rating are designed to withstand these conditions, ensuring stable and reliable performance for sensitive optical transmission. This article provides an overview of this specialized type of fiber optic solution.

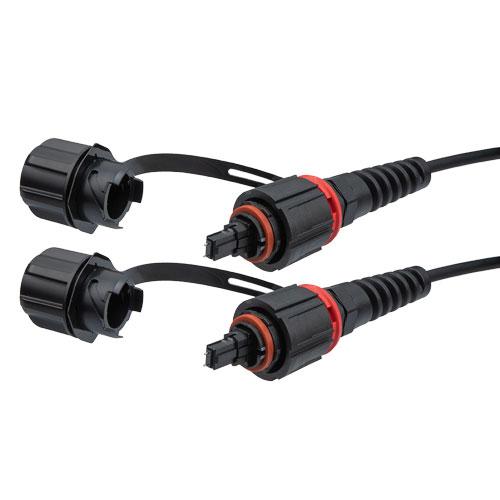

IP68 ODVA-Compatible MPO APC Male to MPO APC Male, 24-Fiber SM OS2, 5mm LSZH Outdoor Fiber Cable
This 24-fiber optic cable assembly features Type B polarity and a secure locking mechanism, delivering low insertion loss and easy installation in LTE, DAS, and mobile base station applications.
The cable assembly adopts a simple bayonet locking system, making it ideal for FTTA applications, including mobile cell towers, contractors, and system integrators. The cable is constructed with an LSZH jacket, offering flame retardancy, waterproof performance, and resistance to chemical corrosion.

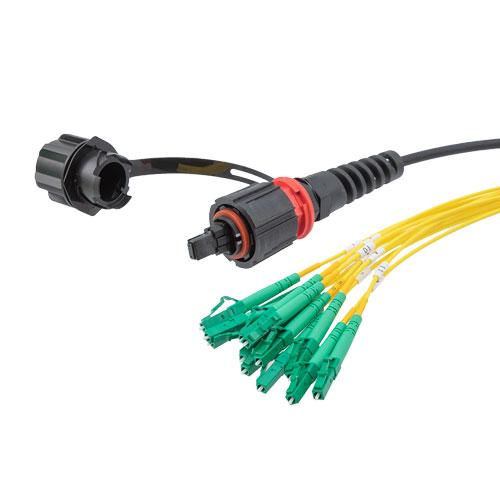

IP68 ODVA-Compatible MPO APC Female to LC APC Fanout, 12-Fiber SM OS2, 5mm LSZH Outdoor Fiber Cable
This ODVA-compatible cable exceeds ODVA requirements for harsh environments. It supports an OSP operating temperature range of -40°C to 70°C.
The cable features a bayonet locking system and maintains low insertion loss, ensuring reliable performance in demanding outdoor deployments.

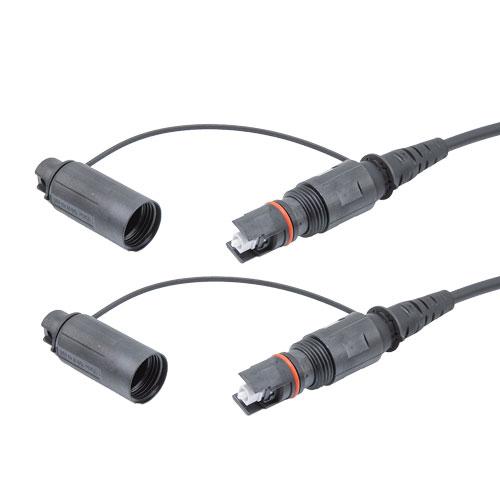

Outdoor Fiber Patch Cable, Simplex SMF (G.657.A2), H-Optic SC/APC to H-Optic SC/APC, 5.0mm LSZH Jacket
This outdoor patch cord (SC/APC to SC/APC) uses G.657.A2 single-mode fiber in a simplex configuration with a 5.0mm LSZH jacket.
It is compatible with Mini-IP and OptiTap connectors and meets IP68 protection standards. The product is designed for all-weather use and offers excellent UV resistance.

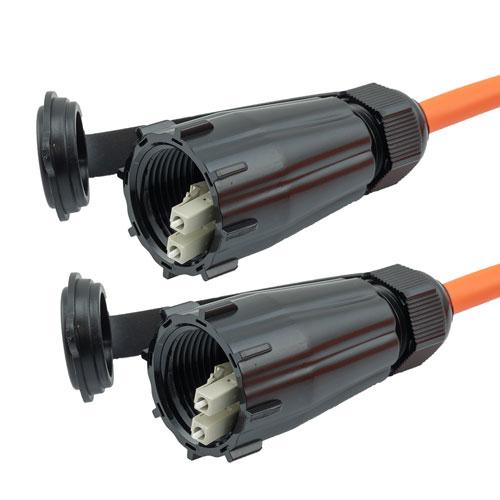

IP68 Waterproof Multimode LC Fiber Patch Cable, OM2
With low attenuation (< 0.3 dB), this cable supports up to 1,000 mating cycles even in harsh industrial environments.
It ensures waterproof and dustproof performance for long-distance fiber connections, making it highly suitable for outdoor applications.
Post time: Apr-02-2026
