SA801HR 5~862MHz Bi-directional Indoor CATV Amplifier
Model Number: SA801HR
Brand: Softel
MOQ: 1
Wide coverage of bidirectional frequency band
Adopt SOT-115 encapsulation RF module on access
High reliable, small distortion and high S/N ratio
01
Product Description
1. Product Summary
It is specialized for construction of the network. High compact circuit and Aluminum-alloy, draw bench of surface, good index and fine outfit.
2. Product feature

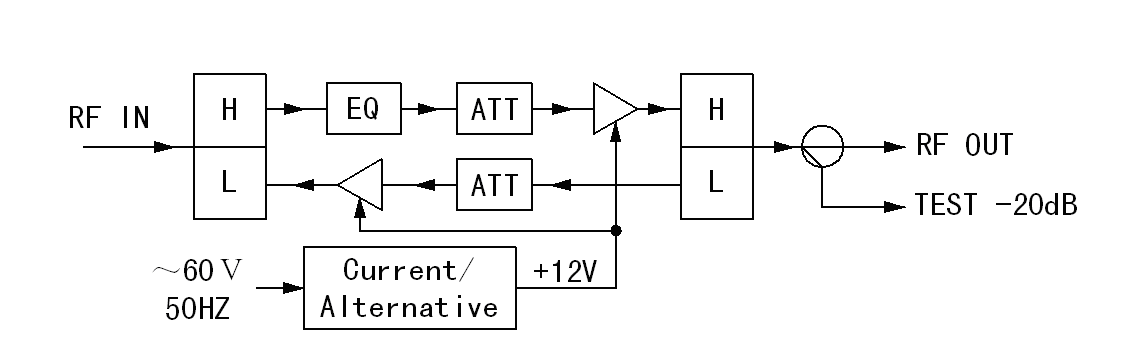

- Adopt SOT-115 encapsulation RF module on access, reliable non-liner. Choose low-noise micro-wave push-pull circuit, small distortion and high S/N ratio.

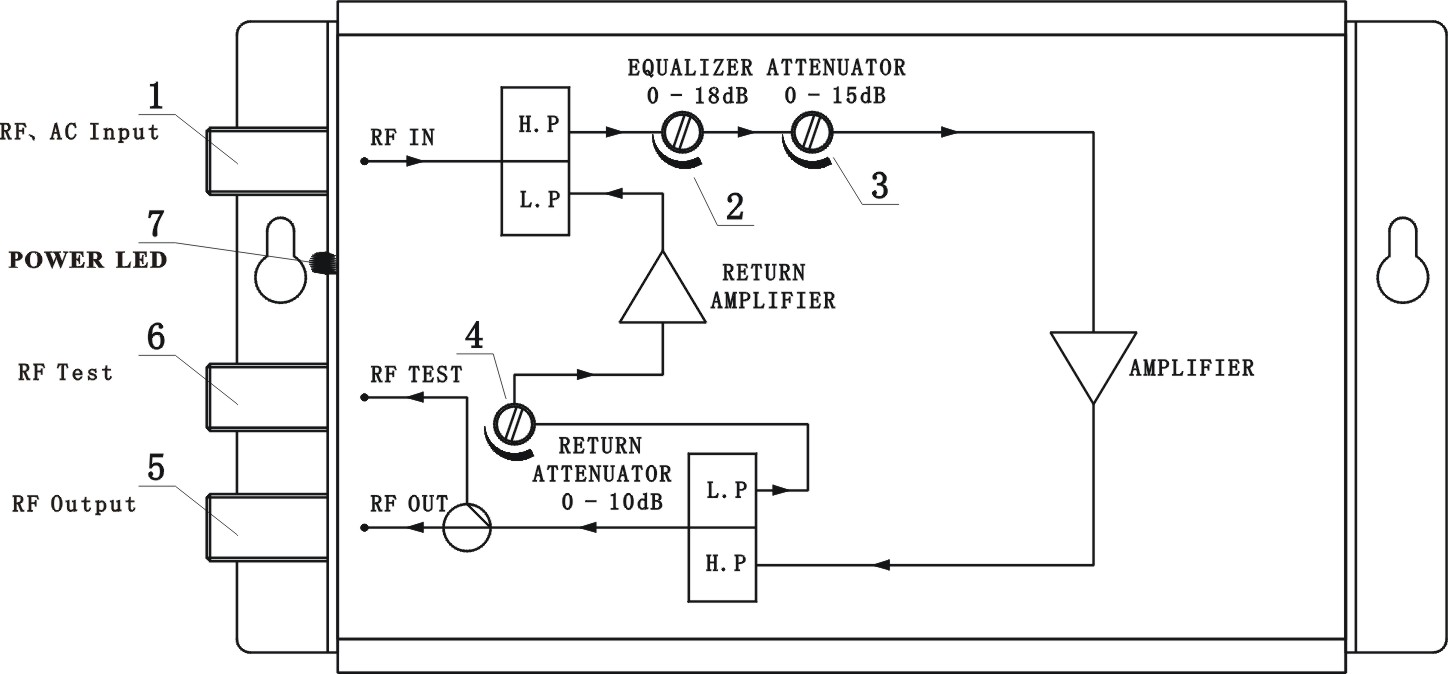

- Set up EQ and ATT on the right place, more convenient of debugging.
- Small power consumption, high reliable, good performance and price ratio.
| SA801HR Bi-directional Indoor User Amplifier | |||
| Forward Transmission | |||
| Frequency Range | MHz | (45) 85~862 | |
| Rated Gain | dB | 30 | |
| Min Fill Gain | dB | ≥30 | |
| Rated Input Level | dBμV | 70±2 | |
| Rated Output Level | dBμV | 100 | |
| Flatness in Band | dB | ±1 | |
| Noise Figure | dB | ≤10 | |
| Return Loss | dB | ≥114 | |
| C/CTB (84 PAL-D) | dB | ≥58 | |
| C/CSO (84PAL-D) | dB | ≥56 | |
| Signal to Alternative Noise Ratio | dB | ≤2% | |
| Gain Stability | dB | ± 1.0 | |
| Voltage Stroke | KV | 5 | |
| Backward Transmission | |||
| Frequency Range | MHz | 5~(30)65(or specified by user) | |
| Rated Gain | dB | 15 | |
| Flatness In Band | dB | ±1 | |
| Noise Figure | dB | ≤12 | |
| Return Loss | dB | ≥16 | |
| MAX Output Level | dBμV | ≥110 | |
| Carrier to second order inter modulation ratio | dB | ≥52 | |
| Carrier to Alternative noise ratio | 2% | ＜2 | |
| General Response | |||
| Power Voltage(50Hz) | V | A:AC (110～250)V ；B： AC(35～60)V | |
| Power consumption | VA | 8 | |
| Impulse Resisting Voltage | Kv | ＞5 | |
| Dimension | Mm | 178(L) x 100 (W) x55(H) | |
