SFT-BLE-M11 1 GHz HFC Bidirectional RF Amplifier
Model Number: SFT-BLE-M11
Brand: Softel
MOQ: 1
1.2GHz bidirectional frequency band design
Plug-in bidirectional filters with multiple splitting frequencies
Cast aluminium enclosure
01
Product Description
1. Product Summary
SFT-BLE-M11 bidirectional amplifier can be used in traditional coaxial cable CATV distribution networks and modern HFC broadband networks. Support DOCSIS system. Suitable for 1 GHz HFC bidirectional networks. This machine adopts low-power and high linearity gallium arsenide technology, effectively improving the distortion index and noise figure of the system, and extending the service life of the system. The integrated die-casting shell has excellent waterproof and shielding performance, and can be used in various environments.
2. Product feature
1.2GHZ two-way frequency range design;

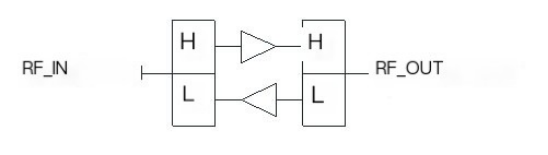

The plug-in bidirectional filter can offer a variety of dividing frequency;
The enclosure adopts casting aluminum material.
| No. | Item | Forward | Reverse | Remarks |
| 1
|
Frequency range (MHz) | **-860/1000 |
5-** |
Frequency segmentation according to the actual situation |
| 2
|
Flatness (dB) | ±1 | ±1 | |
| 3 | Reflection loss (dB) | ≥16 | ≥16 | |
| 4 | Nominal gain (dB) | 14 | 10 | |
| 5 | Noise coefficient (dB) | ＜6.0 | ||
| 6 | Connection method | F connector | ||
| 7 | Input and output impedance (W) | 75 | ||
| 8 | C/CSO (dB) | 60 | —— | 59 way PAL system, 10dBmV |
| 9 | C/CTB (dB) | 65 | —— | |
| 10 | Environmental temperature ( C) | -25 ℃ -+55 ℃ | ||
| 11
|
Equipment size (mm) | 110 length × 95 width × 30 height | ||
| 12
|
Equipment weight (kg) | Max 0.5 kg | ||
