SFT-T1S Gigabit Coaxial to RJ45 Converter Slave
Model Number: SFT-T1S
Brand: Softel
MOQ: 1
Supports 1 bidirectional gigabit coaxial transmission port
Supports coaxial interface bidirectional feeding
Supports 100Mbps/1G adaptive
01
Product Description
Introduction
SFT-T1S type slave device is a 1000Base-T1 subend product designed to meet there quirements of different operators for gigabit coaxial to RJ45 conversion. This model is mature, stable, andcost- effective,integrating gigabit Ethernet switching technology gigabit coaxial and transmission technology. It has the characteristics of high bandwidth, high reliability, and easy installation and maintenance.
Key Features
Supports 1 bidirectional gigabit coaxial transmission port
Supports 100Mbps/1G adaptive, supports coaxial interface bidirectional feeding
| Item | Parameter | Specification |
| Interface specifications | T1 interface | 1* GE coaxial F type port (Metric/ Imperial optional) |
| Supports bidirectional feeding of coaxial cable | ||
| Supports coaxial transmission over 80 meters via Gigabit network | ||
| LAN interface | 1*1000M Ethernet port | |
| Full duplex/half duplex | ||
| RJ45 port ，Support cross direct connection self-adaptation | ||
| Transmission distance 100 meters | ||
| Power interface | +12VDC power interface | |
| Performance specifications | Data transmission performance | Ethernet port： 1000Mbps |
| Packet loss rate：<1*10E-12 | ||
| Transmission delay：<1.5ms | ||
| Physical characteristics | Shell | ABS engineering plastics shell |
| Power supply and consumption | External 12V/0.5A~ 1.5A power adapter (Optional) | |
| Consumption：<3W | ||
| Dimension and weight | Dimension ：104mm(L) ×85mm(W) ×25mm (H) | |
| Weight：0.2kg | ||
| Environmental parameters | Working temperature：0～45℃ | |
| Storage temperature：-40～85℃ | ||
| Working humidity：10%～90% non-condensation | ||
| Storage humidity：5%～95% non-condensation |

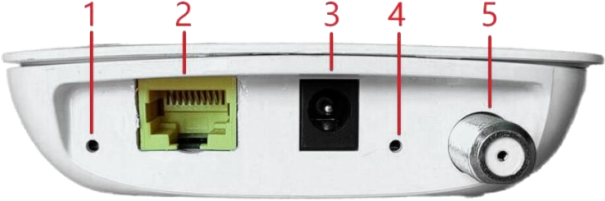

| Number | Mark | Description |
| 1 | RUN | Operating status indicator light |
| 2 | LAN | Gigabit Ethernet port RJ45 |
| 3 | 12VDC | DC 12V power input interface |
| 4 | T1 | 1000Base-T1 operating status indicator light |
| 5 | RF | Gigabit coaxial F type port |
| Identification | Status | Definition |
| RUN | Flashing | POWER ON and normal operation |
| OFF | POWER OFF or abnormal operation | |
| T1 | ON | GE Coaxial interface is connected |
| Flashing | GE Coaxial data is transmission | |
| OFF | GE Coaxial interface is not in use |
Note
(1) 1000Base-T1 series products are used in a one-to-one mode.(One master and one slave are used in conjunction)
(2) The product models are divided into two specifications: -M (master) and -S (slave).
(3) The appearance structure of the master and slave devices is the same, and they are distinguished by model labels.
