SFT358X Integrated Receiver Decoder 4-in-1 DVB-C DVB-T/T2 DVB-S/S2 IRD
Model Number: SFT358X
Brand: Softel
MOQ: 1
4 Tuner inputs (DVB-C, T/T2, S/S2 Optional)
1 ASI & 4 IP (UDP) input for de-mux
Support Diseqc function
01
Product Description
1. Product Overview
SFT358X IRD is SOFTEL’s new design which integrates demodulation (DVB-C, T/T2, S/S2 optional), de-scrambler and multiplexing in one case to convert RF signals into TS output.
It is a 1-U case which supports 4 tuner inputs, 1 ASI and 4 IP inputs. The 4 CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device. BISS function is also embedded to descramble programs.

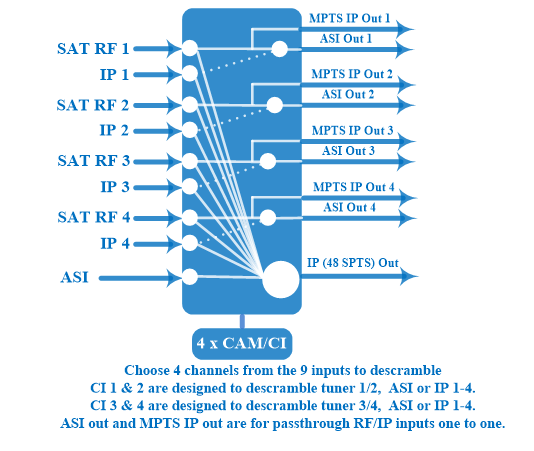

To meet customers’ various requirements, SFT358X is also designed to de-mux programs from any input, and output TS over 48 SPTS.
2. Key features
- 4 Tuner inputs (DVB-C, T/T2, S/S2 Optional)
- 1 ASI & 4 IP (UDP) input for de-mux
- One CAM can decrypt multiple programs from Tuners/ASI/IP
- Support BISS descrambling(Up to 120 Mbps)
- IP (48 SPTS) over UDP and RTP/RTSP output
- 4 groups of independent ASI out for tuner/IP passthrough (one-to-one)
- Support maximum 128 PID mapping per input
- Support Diseqc function
- LCD display, Remote control and Firmware, web NMS management
- Updates via web
- High quality and breakthrough price
| SFT358X 4 in 1 DVB-C DVB-T/T2 DVB-S/S2 IRD | |
| Inputs | 4x RF (DVB-C, T/T2, S/S2 optional), F type |
| 1×ASI input for de-mux, BNC interface | |
| 4xIP input for de-mux (UDP) | |
| Outputs(IP/ASI) | 48*SPTS over UDP, RTP/RTSP. |
| 1000M Base-T Ethernet interface (unicast/multicast) | |
| 4*MPTS over UDP, RTP/RTSP. | |
| 1000M Base-T Ethernet interface, for RF in passthrough (one-to-one) | |
| 4 groups BNC interface | |
| Tuner Section | |
| DVB-C | |
| Standard | J.83A(DVB-C), J.83B, J.83C |
| Input Frequency | 47 MHz~860 MHz |
| Constellation | 16/32/64/128/256 QAM |
| DVB-T/T2 | |
| Input Frequency | 44MHz ~1002 MHz |
| Bandwidth | 6/7/8 M |
| DVB-S | |
| Input Frequency | 950-2150MHz |
| Symbol rate | 1~45Mbauds |
| Signal Strength | - 65- -25dBm |
| Constellation | 1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
| DVB-S2 | |
| Input Frequency | 950-2150MHz |
| Symbol rate | QPSK/8PSK 1~45Mbauds |
| Code rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK |
| System | |
| Local interface | LCD + control buttons |
| Remote management | Web NMS Management |
| Language | English |
| General Spec | |
| Power supply | AC 100V~240V |
| Dimensions | 482*400*44.5mm |
| Weight | 3 kgs |
| Operation temperature | 0~45℃ |
SFT358X 4 in 1 DVB-C DVB-T/T2 DVB-S/S2 IRD Datasheet.pdf
