SR200AF FTTH 1GHz Mini Optical Receiver with Filter
Model Number: SR100AW
Brand: Softel
MOQ: 1
Optical AGC range is -15 ~ -5dBm
Support optical filter, compatible with WDM network
Ultra low power consumption
01
Product Description
Introduction
SR200AF optical receiver is a high-performance 1GHz miniature optical receiver designed for reliable signal transmission in fiber-to-the-home (FTTH) networks. With an optical AGC range of -15 to -5dBm and a stable output level of 78dBuV, consistent signal quality is ensured even under different input conditions. Ideal for CATV operators, ISPs, and broadband service providers, it delivers superior performance and ensures smooth and high-quality signal transmission in modern FTTH networks.
Performance Characteristic
- 1GHz FTTH mini optical receiver.
- Optical AGC range is -15 ~ -5dBm, output level is 78dBuV.
- Support optical filter, compatible with WDM network.
- Ultra low power consumption.
- +5VDC power adapter, compact structure.
| SR200AF FTTH Optical Receiver | Item | Unit | Parameter | |
|
Optical |
Optical wavelength | nm | 1100-1600, the type with optical filter: 1550±10 | |
| Optical return loss | dB | >45 | ||
| Optical connector type | SC/APC | |||
| Input optical power | dBm | -18 ~ 0 | ||
| Optical AGC range | dBm | -15 ~ -5 | ||
| Frequency range | MHz | 45~ 1003 | ||
| Flatness in band | dB | ±1 | Pin= -13dBm | |
| Output return loss | dB | ≥ 14 | ||
| Output level | dBμV | ≥ 78 | OMI=3.5%, AGC range | |
| MER | dB | >32 | 96ch 64QAM, Pin= -15dBm, OMI=3.5% | |
| BER | - | 1.0E-9 (post-BER) | ||
|
Others |
Output impedance | Ω | 75 | |
| Supply voltage | V | +5VDC | ||
| Power consumption | W | ≤2 | ||
| Operating temperature | ℃ | -20～+55 | ||
| Storage temperature | ℃ | -20～+60 | ||
| Dimensions | mm | 99x80x25 | ||

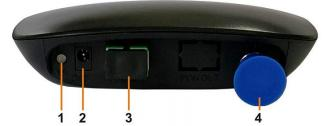

| SR200AF | |
| 1 | Input optical power indication: Red: Pin> +2dBmGreen: Pin= -15～+2dBmOrange: Pin< -15dBm |
| 2 | Power input |
| 3 | Optical signal input |
| 4 | RF output |
