SR804R CATV 4 Way Optical Node Return Path Receiver
Model Number: SR804R
Brand: Softel
MOQ: 1

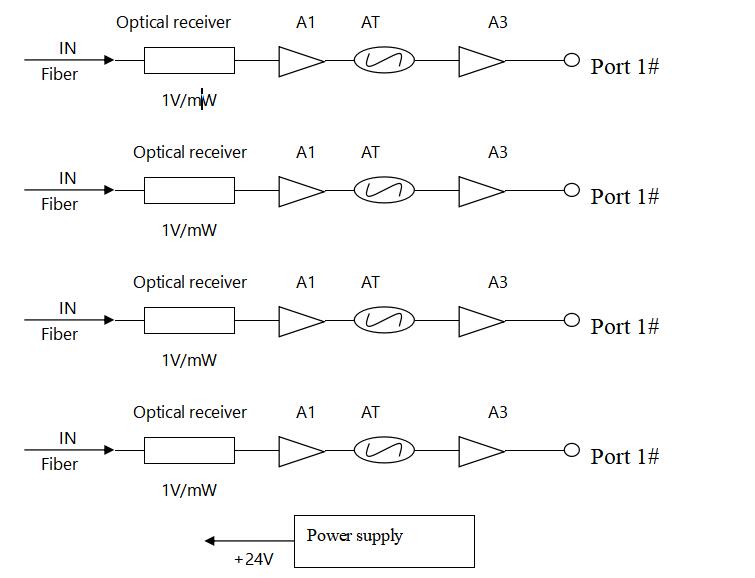

4 Independent Return Optical Receiving Channels
Accept video, audio or the mix of these signals
RF output level can be manually adjusted
01
Product Description
Features
1. Designed for receiving upstream signal and transmitting return signal to distribution hub or head-end.
2. Can accept video, audio or the mix of these signals.
3. RF test point and optical photo current test points for each receiver on the front of the chassis.
4. RF output level can be manually adjusted through the use of an adjustable attenuator on the front panel.
Notes
1. Please don’t now attempt to look into the optical connectors when power applied, eye damage may result.
2. It is prohibited to touch the laser without any anti-static tool.
3. Clean the end of connector with lint free tissue moistened with alcohol before you insert the connector into the receptacle of the SC/APCS adaptor.
4. The machine should be earthed before operation. The earthed resistance should be <4Ω.
5. Please carefully bend the fiber.
| SR804R CATV 4 Way Optical Node Return Path Receiver | |
| Optical | |
| Optical wave length | 1290nm to 1600nm |
| Optical input range | -15dB to 0dB |
| Fiber connector | SC/APC or FC/APC |
| RF | |
| RF output level | >100dBuV |
| Bandwidth | 5-200MHz/5-65MHz |
| RF impedance | 75Ω |
| Flatness | ±0.75Db |
| Manual Att Range | 20dB |
| Output return loss | >16dB |
| Test points | -20dB |
