1U 19″ FTTH 10G Uplink EPON OLT 4 Ports
Model Number: OLT-E4V
Brand: Softel
MOQ: 1
Open to any brands of ONU
SNMP, Telnet, CLl, WEB, SSH v1/v2 Management
Support lPv6 and Layer 2 Protocol
01
Product Description
EPON OLT-E4V completely meets the relative standards of IEEE 802.3x and FSAN. The equipment is a 1U rack-mounted device, providing 1 USB interface, 4 uplink GE ports, 4 uplink SFP ports, and 4 EPON ports. A single port supports a 1:64 splitting ratio. System support 256 EPON terminals accessing in for the most.

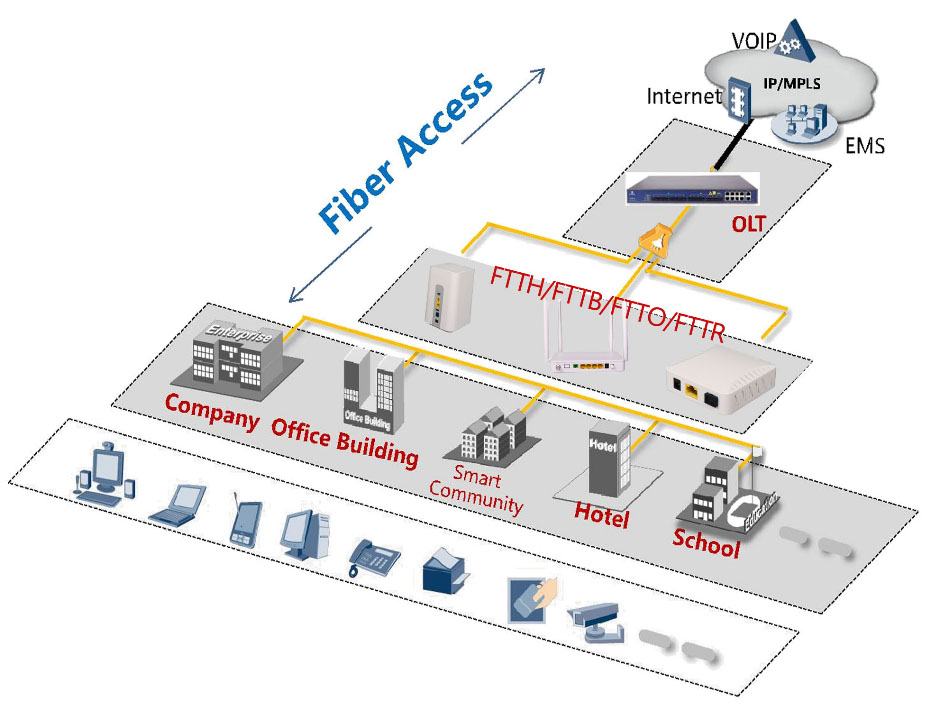

This product meets the requirements in device performance and size of a compact server room as the product has high performance and compact size, is convenient and flexible to use and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability, and reducing power consumption from the perspective of access network and enterprise networks and is applicable to three-in-one broadcast television networks, FTTP (Fiber to the premise), video monitoring networks, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio.
Functional Features
● Meet IEEE 802.3x standard and relative EPON standards of the Communication Industry.
● Support OAM remote management for ONT/ONU, compatible with IEEE 802.3x OAM Protocol.
● 1U height 8PON OLT product in the compact design of Pizza-Box.
Software Functions
Layer 2 Switching Function
OLT equips with very powerful layer 2 Full Wire Speed Switching and completely supports layer 2 protocol. OLT supports varieties of layer 2 functions like TRUNK, VLAN, rate limit, port isolate, queue technology, flow control technology, ACL, and so on, which provides technical guarantee for the development of multi-service integrated.
QOS Guarantee
It can provide various QoS for the EPON systems, which can meet different QoS requirements for delay, jitter, and packet loss rate of different service flows.
Easy-to-Use Management System

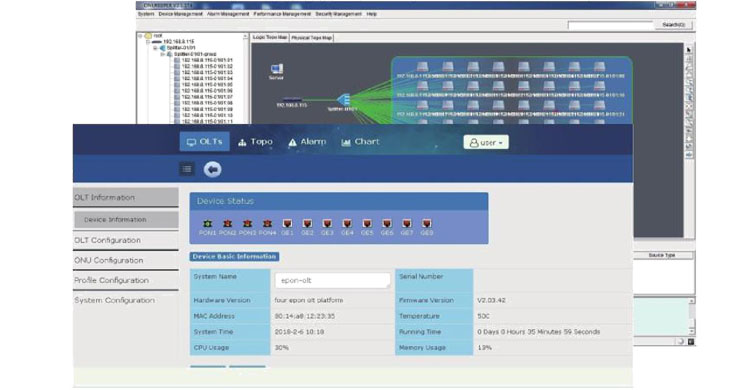

Support management methods of CLI, WEB, SNMP, TELNET, SSH and meet OAM standards, through OAM channel protocol service management can be realized, including ONT function parameter set, QoS parameters, configuration information request, performance statistics, auto-reporting of running events in the system, configuration for ONT from OLT, fault diagnosis and management of performance and safety.
| Item | OLT-E4V | |
| Chassis | Rack | 1U 19 inch standard box |
| Uplink Port | QTY | 8 |
| Copper | 10/100/1000M auto-negotiable,RJ45:4pcs | |
| Optical interface | 4 GE | |
| PON Port | QTY | 4 |
| Physical Interface | SFP Slots | |
| Connector Type | 1000BASE-PX20+ | |
| Max splitting ratio | 1:64 | |
| USB Port | QTY | 1 |
| Connector Type | Type-C | |
| Management Ports | 1 100/1000 BASE-Tx out-band Ethernet port1 CONSOLE local management port | |
| PON Port Specification
(Apply to PON module） |
Transmission Distance | 20KM |
| PON port speed | Symmetrical 1.25Gbps | |
| Wavelength | 1490nm TX, 1310nm RX | |
| Connector | SC/PC | |
| Fiber Type | 9/125μm SMF | |
| TX Power | +2 ～ +7dBm | |
| Rx Sensitivity | -27dBm | |
| Saturation Optical Power | -6dBm | |
| 10Gb SFP+ Port Specification(Apply to 10Gb module） | Transmission Distance | 10KM |
| PON port speed | 8.5-10.51875Gbps | |
| Wavelength | 1310nmTX, 1310nmRX | |
| Connector | LC | |
| Fiber Type | Single mode with dual fiber | |
| TX Power | -8.2~+0.5 dBm | |
| Rx Sensitivity | -12.6dBm | |
| Management Mode | SNMP, Telnet, CLI management mode. | |
| Management Function | Fan Group DetectingPort Status monitoring and configuration management; | |
| Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc; EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc; Online ONU configuration and management User management |
||
| Layer-two Switch | Support port VLan and protocol Vlan Support Vlan tag/Untag ,vlan transparent transmission; Support 4096 VLAN Support 802.3dd trunk RSTP QOS based on port ,VID,TOS and MAC address IGMP Snooping 802.x flow control Port stability statistic and monitoring |
|
| EPON Function | Support port-based rate limitation and bandwidth control; In compliant with IEEE802.3ah Standard Up to 20KM transmission Distance Support data encryption, group broadcasting, port Vlan separation, RSTP, etc. Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-discovery/Link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels. Support power-off alarm function ,easy for link problem detection Support broadcasting storm resistance function Support port isolation between different ports Support ACL and SNMP to configure data packet filter flexibly Specialized design for system breakdown prevention to maintain stable system Support dynamic distance calculation on EMS online Support RSTP,IGMP Proxy |
|
| Layer-three Route | Support static routing protocol Support dynamic RIP protocol Support dhcp-relay functionSupport vlanif interface configuration | |
| Backplane Bandwidth | 58G | |
| Size | 442mm(L)*200mm(W)*43.6mm(H) | |
| Weight | 4.2kg | |
| Power Supply | 220VAC | AC: 100V～240V,50/60Hz |
| -48DC | DC: -40V~-72V | |
| Power Consumption | 60W | |
| Operating Environment | Working Temperature | -15～50℃ |
| Storage Temperature | -40～85℃ | |
| Relative Humidity | 5～90%(non-condensing) | |
