FTTX-PT-B8 Multifunctional 8 Core FTTx Optical Fiber Splliter Distribution Box
Model Number: FTTX-PT-B8
Brand: Softel
MOQ: 10
Total Enclosed Structure
Protection Level up to IP65
Wet-proof, Water-proof, Dust-proof, Anti-aging
01
Product Description
Brief Description
The equipment is a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.
Functional Features
- Total enclosed structure.
- Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, and a protection level up to IP65.
- Clamping for feeder and drop cables, fiber splicing, fixation, storage, distribution...etc all in one.

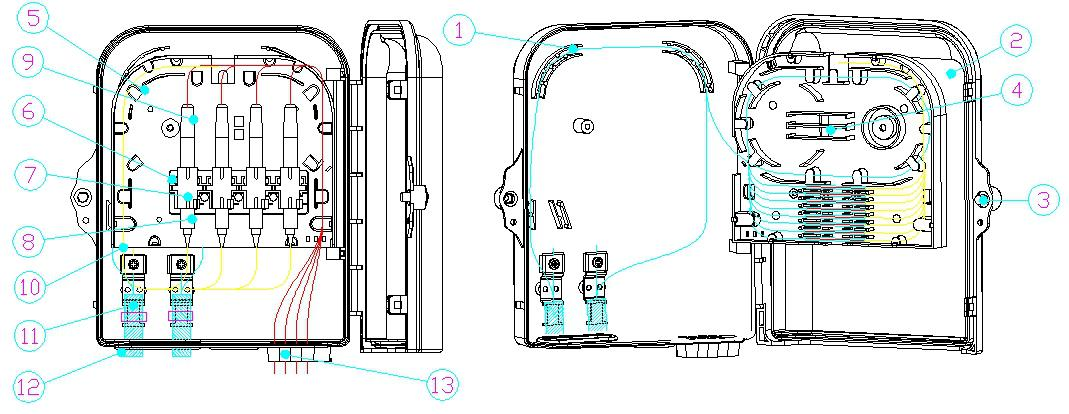

- Cable, pigtails, and patch cords running through their path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
- The distribution panel can be flipped up, and the feeder cable can be placed in a cup-joint way, which makes it easy for maintenance and installation.

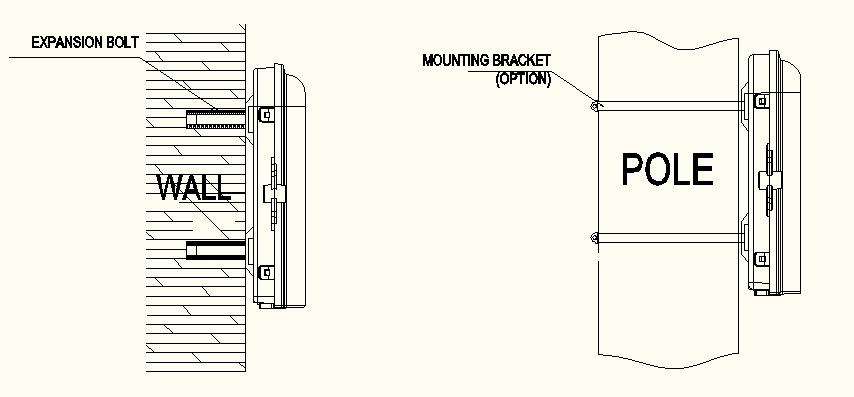

- The Fiber Optical Terminal Box can be installed by way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
| FTTX-PT-B8 Optical Fiber Access Terminal Box | ||
| Material | PC+ABS | |

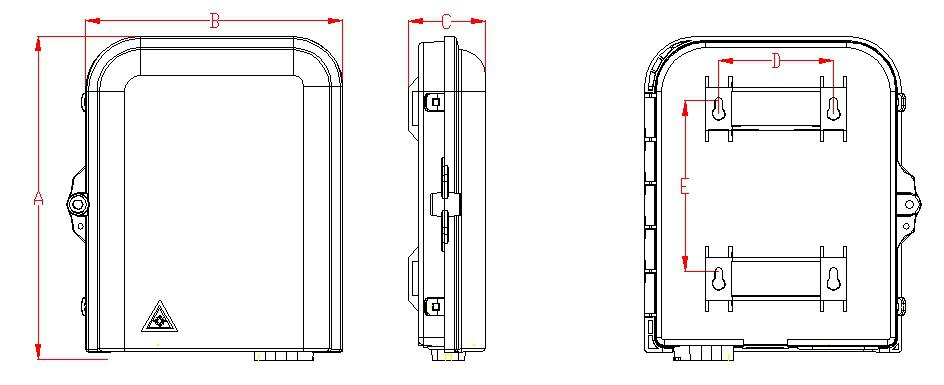

| Size (A*B*C) | 227*181*54.5mm | |
| Max Capacity | SC | 8 |
| LC | 8 | |
| PLC | 8(LC) | |
| Installation Size(Pic 2） | 81*120mm | |
| Environmental requirement | ||
| Working Temperature | -40℃～+85℃ | |
| Relative Humidity | ≤85%(+30℃) | |
| Atmospheric Pressure | 70KPa～106Kpa | |
| Optic Accessory Specs | ||
| Insertion loss | ≤0.2dB | |
| UPC return loss | ≥50dB | |
| APC return loss | ≥60dB | |
| Life of insertion and extraction | ＞1000 times | |
| The grounding device is isolated with the cabinet, and isolation resistance is less than 2X104MΩ/500V（DC）; IR≥2X104MΩ/500V. | ||
| The withstand voltage between the grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover; U≥3000V | ||
