GPON HGU 4GE+CATV+WiFi5 Dual Band 2.4G&5G XPON ONT
Model Number: ONT-4GE-RF-DW
Brand: Softel
MOQ: 1
Comply with EPON and GPON
2.4G/5G WiFi Intelligence Coverage
Support PPPoE/Static IP/DHCP Address Access
01
Product Description
Summary

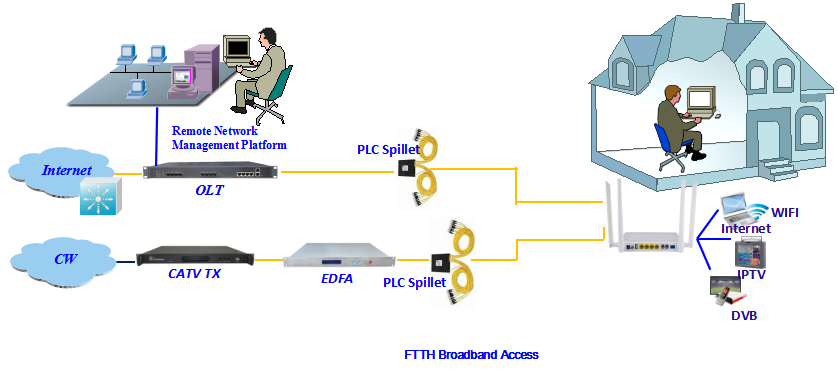

ONT-4GE-RFDW is a GPON optical network unit specially designed for broadband access network, providing data and video services through FTTH/FTTO. As the latest generation of access network technology, GPON achieves higher bandwidth and efficiency through larger variable-length data packets, and efficiently encapsulates user traffic through frame segmentation, providing reliable performance for enterprise and residential services.
ONT-4GE-RFDW is an FTTH/O scene optical network unit device belonging to the XPON HGU terminal. It has 4 10/100/1000Mbps ports, 1 WiFi (2.4G+5G) port, and 1 RF interface, providing high speed and High-quality service to users. It provides high reliability and guaranteed service quality and has easy management, flexible expansion, and networking capabilities.
The ONT-4GE-RFDW is fully compliant with ITU-T technical standards and compatible with third-party OLT manufacturers, driving accelerated growth in fiber-to-the-home (FTTH) deployments worldwide.
Functional Features
- Single-fiber access, provides internet, CATV, WIFI multiple services
- In compliant with ITU - T G. 984 Standard
- Support ONU auto-discovery/Link detection/remote upgrade of software
- Wi-Fi series meet 802.11 a/b/g/n/ac technical standards
- Support VLAN transparent, tag configuration
- Support multicast function
- Support DHCP/Static/PPPOE internet mode
- Support port-binding
- Support OMCI+TR069 remote management
- Support data encryption and decryption function
- Support Dynamic Bandwidth Allocation (DBA)
- Support MAC filter and URL access control
- Support remote CATV port management
- Support power-off alarm function, easy for link problem detection
- Specialized design for system breakdown prevention to maintain a stable system
- EMS network management based on SNMP, convenient for maintenance
| ONT-4GE-RF-DW 4GE+CATV+WiFi5 Dual Band 2.4G&5G XPON ONT | |
| Hardware Data | |
| Dimension | 220mm x 150mm x 32mm(Without antenna) |
| Weight | Approximately 310G |
| Working environment temperature | 0℃～+40℃ |
| Working environment humidity | 5% RH～95% RH, non-condensing |
| Power adapter input level | 90V～270V AC, 50/60Hz |
| Device power supply | 11V～14V DC, 1 A |
| Static power consumption | 7.5 W |
| Maximum power consumption | 18 W |
| Interfaces | 1RF+4GE+Wi-Fi(2.4G+5G) |
| indicator light | POWER/PON/LOS/LAN/WLAN/RF |
| Interface Parameters | |
| PON interface | • Class B+ |
| • -27dBm receiver sensitivity | |
| • Wavelength: Upstream 1310nm; Downstream 1490nm | |
| • Support WBF | |
| • Flexible mapping between GEM Port and TCONT | |
| • Authentication method:SN/password/LOID(GPON) | |
| • Two-way FEC(Forward error correction) | |
| • Support DBA for SR and NSR | |
| Ethernet port | • Stripping based on VLAN Tag/Tag for Ethernet port. |
| • 1:1VLAN/N:1VLAN/VLAN Pass-through | |
| • QinQ VLAN | |
| • MAC address limit | |
| • MAC address learning | |
| WLAN | • IEEE 802.11b/g/n |
| • 2×2MIMO | |
| • Antenna gain: 5dBi | |
| • WMM(Wi-Fi multimedia) | |
| • Multiple SSID multiple | |
| • WPS | |
| RF interface | • Supports standard RF interfaces |
| • Support hd data streaming | |
| 5G WiFi Specifications | |
| Network standard | IEEE 802.11ac |
| Antennas | 2T2R, support MU-MIMO |
| 20M:173.3Mbps | |
| Maximum supported rates | 40M:400Mps |
| 80M:866.7Mbps | |
| Data modulation type | BPSK QPSK 16QAM 64QAM 256QAM |
| Maximum output power | ≤20dBm |
| 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, | |
| Typical channel (Customized) | 108, 112, 116, 120 , 124, 128, 132, 136, |
| 140, 144, 149, 153, 157, 161, 165 | |
| Encryption mode | WPA, WPA2, WPA/WPA2, WEP, NONE |
| Encryption type | AES, TKIP |
