Dual Mode G/EPON ONT-2GF-RFW ONU is specially designed to meet the high-speed broadband needs of FTTO (office), FTTD (desktop), and FTTH (home) telecom operators. This EPON/GPON Gigabit Ethernet product is specially designed to meet SOHO broadband access, video surveillance, and other network requirements.

G/EPON ONT-2GF-RFW ONU adopts mature, stable, and cost-effective technology, which ensures high reliability, easy management, configuration flexibility, and quality of service (QoS) performance, and meets the technical requirements of IEEE802.3ah, ITU-TG .984.x, and other China Telecom EPON/GPON equipment specifications.

The ONT-2GF-RFW CATV ONU includes various powerful features such as bridge and route modes for optimized software operation, 802.1D and 802.1ad bridge for layer 2 operation, 802.1p CoS and 802.1Q VLAN. Additionally, the device guarantees Layer 3 IPv4/IPv6, DHCP client/server, PPPoE, NAT, DMZ, DDNS, IGMPv1/v2/v3, IGMP snooping for multicast management, traffic, and storm control, and Loop detection for increased network security.

The device also supports CATV management, IEEE802.11b/g/n WiFi up to 300Mbps, and authentication functions such as WEP/WAP-PSK(TKIP)/WAP2-PSK(AES). ACL/MAC/URL-based filtering is also included in the device's firewall function. G/EPON ONT-2GF-RFW ONU can be easily managed through the WEB/TELNET/OAM/OMCI/TR069 interface and supports private OAM/OMCI protocol.

It also features unified network management from VSOL OLT, making it a comprehensive and effective solution for all your high-speed broadband needs.





ONT-2GF-RFWB FTTH Dual Mode 1GE+1FE+CATV+WiFi EPON/GPON ONU
Spec. Items Description
PON Interface 1 G/EPON port(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm
Transmitting optical power: 0~+4dBm
Transmission distance: 20KM
Wavelength Tx1310nm,Rx 1490nm and 1550nm
Optical Interface SC/APC connector(signal fiber with WDM)
LAN Interface 1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
WiFi interface Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi
IEEE802.11b/g/n (TX power:20dBm/19dBm/18dBm) Support: multiple SSID Channel:13 Modulation type: DSSS, CCK and OFDM
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
CATV interface RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB
Optical receiving wavelength: 1550±10nm
RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 90dBuV(-7dBm optical input)
AGC range: 0~-7dBm/-2~-12dBm/-6~-18dBm
MER: ≥32dB(-14dBm optical input), >35(-10dBm)
LED 7, For Status of POWER, LOS, PON, GE, FE, WiFi, CATV
Operating condition Temperature: 0℃~+50℃
Humidity: 10%~90%(non-condensing)
Storing condition Temperature: -30℃~+60℃
Humidity: 10%~90%(non-condensing)
Power supply DC 12V/1A
Power supply ≤6.5W
Dimension 185mm×120mm×34mm(L×W×H)
Net weight 0.29Kg
Interfaces and Buttons
PON SC/APC type, single mode optical fiber cable with WDM
GE, FE Connect device with ethernet port by RJ-45 cat5 cable.
RST Press down reset button and keep1-5seconds to make the device restart and recover from the factory default settings.
DC12V Connect with power adapter.
CATV RF connector.
Power On/OFF Turn on/off Power
Software Key Feature
EPON/GPON Mode Dual Mode; It can access EPON/GPON OLTs(HUAWEI,ZTE,FiberHome, etc).
Software Mode Bridging and Routing Mode.
Layer2 802.1D&802.1ad bridge,802.1p Cos,802.1Q VLAN.
Layer3 IPv4/IPv6 , DHCP Client/Server , PPPoE ,NAT , DMZ ,DDNS.
Multicast IGMPv1/v2/v3 , IGMP snooping.
Security Flow & Storm control, Loop Detection.
CATV management Support CATV management.
WiFi IEEE802.11b/g/n (TX power:20dBm/19dBm/18dBm),Up to 300Mbps Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES).
Firewall Filtering Based on ACL/MAC/URL.
O&M WEB/TELNET/OAM/OMCI/TR069, Support private OAM/OMCI protocol and Unified network management of SOFTEL OLT.

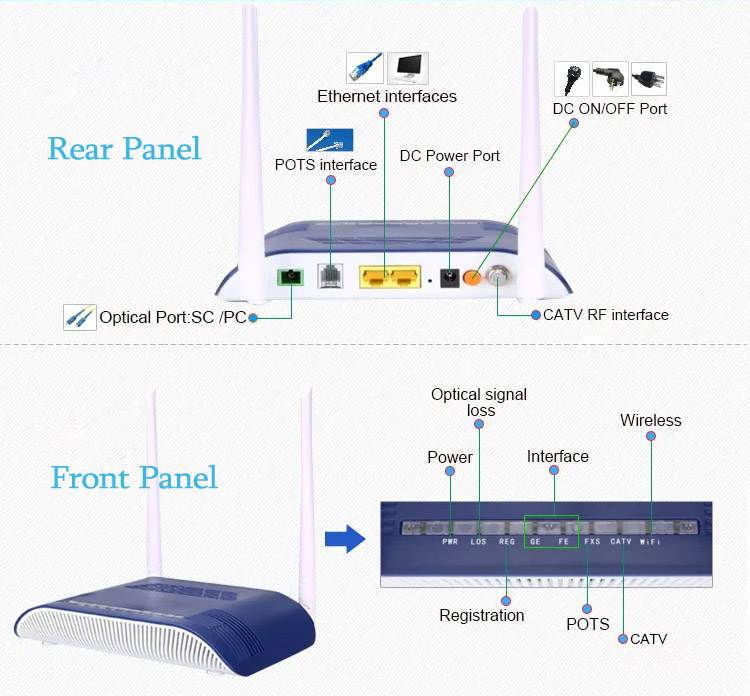

Panel and Interface

LED Mark Status  Description
Power  PWR On Device is powered up.
Off Device is powered down.
Optical signal loss  LOS Blink Device does not receive optical signals.
Off Device has received optical signal.
 Registration   REG On  Device is registered to the PON system.
Off  Device is not registered to the PON system.
Blink  Device is registering.
 Interface   GE, FE On  Port is connected properly.
Off  Port connection exception or not connected.
Blink  Port is sending or/and receiving data.
 Wireless  WiFi On WiFi turned on.
Off Device is power off or WiFi turned off.
Blink WiFi data transmission.
 CATV  CATV On 1550nm wavelength power of input is in normal range.
Off 1550nm wavelength power of input is too low or no input.
Blink 1550nm wavelength power of input is too high.

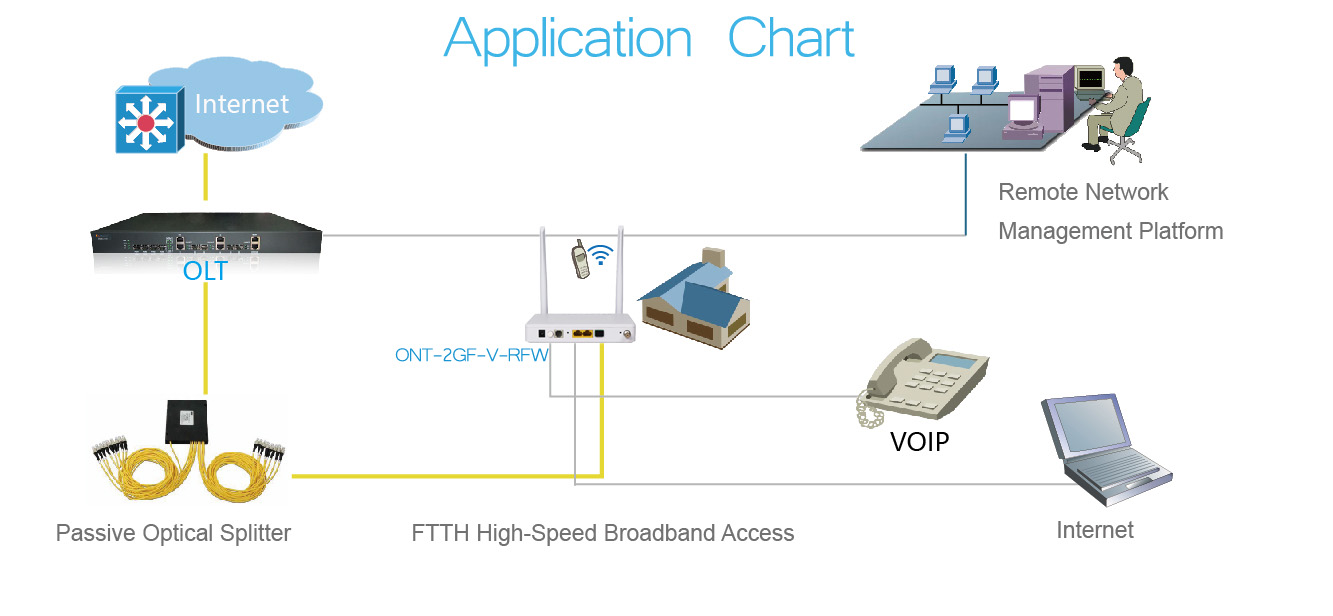

组网图
