ONTX-W618RF 2.4G&5G Dual-frequency CATV 4GE WiFi 6 XG-PON ONU
Model Number: ONTX-W618RF
Brand: Softel
MOQ: 1
Support docking compatibility with OLT of various manufacturers
Support automatically adapt to the EPON or GPON mode used by the peer OLT
Support CATV video service
01
Product Description
Brief Introduction

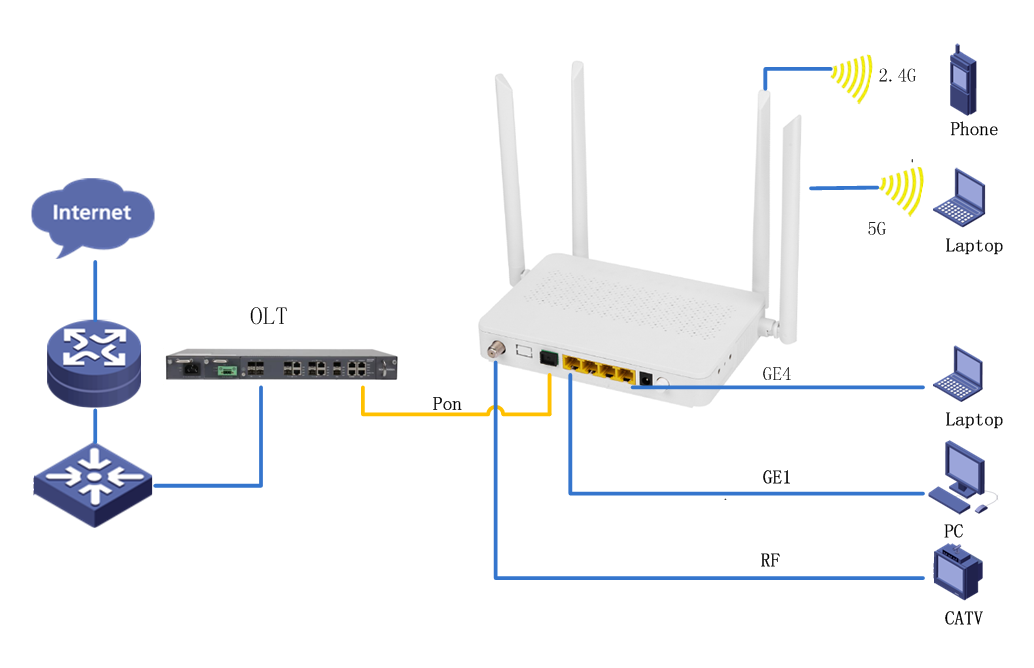

ONTX-W618RF is launched to be oriented to multi-service integration network as an optical network unit device, which belongs to XG-PON HGU terminal for FTTH/O scenario. It configures four 10/100/1000Mbps ports, WiFi6(2.4G+5G) port and RF interface that providing with high-speed data services and high-quality video services to users.
Features
- Compliance with ITU-T G.987.x standard
- Compliance with IEEE802.11 b/g/n/ax 2.4G & IEEE802.11a/n/ac/ax 5G WIFI standard
- Support IPV4 & IPV6 Management and transmission
- Support TR-069 remote configuration and maintenance
- Support Layer 3 gateway with hardware NAT
- Support Multiple WAN with Route/Bridge mode
- Support Layer 2 802.1Q VLAN, 802.1P QoS, ACL etc
- Support IGMP V2 and MLD proxy/ snooping
- Support DDNS, ALG, DMZ, Firewall and UPNP service
- Support CATV interface for video service
- Support bi-directional FEC
| Hardware Specifications | |
| Interface | 1* PON+4*GE+2.4G/5G WLAN+1*RF |
| Power adapter input | 100V-240V AC, 50Hz-60Hz |
| Power Supply | DC 12V/1.5A |
| Indicator light | POWER/PON/LOS/LAN1/ LAN2 LAN3/LAN4/2.4G/5G/RF/OPT |
| Button | Power switch Button, Reset Button, WLAN Button, WPS Button |
| Power Consumption | <18W |
| Working temperature | -20℃～+55℃ |
| Environment humidity | 5% ~ 95%(non-condensing) |
| Dimension | 180mm x 133mm x 28mm(L×W×H Without antenna) |
| Net Weight | 0.31Kg |
| PON Interface | |
| Interface Type | SC/APC |
| Transmission distance | 0～20km |
| Working wavelength | Up 1270nm；Down 1577nm；CATV 1550nm |
| RX Optical power sensitivity | -27dBm |
| Transmission rate | XG-PON: Up 2.5Gbps；Down 10Gbps |
| Ethernet Interface | |
| Interface type | 4* RJ45 |
| Interface parameters | 10/100/1000BASE-T |
| Wireless | |
| Interface type | External 2*2T2R External antenna |
| Antenna gain | 5dBi |
| Interface maximum rate | 2.4G WLAN： 573.5Mbps5G WLAN： 1201Mbps |
| Interface working mode | 2.4G WLAN：802.11 b/g/n/ax5G WLAN：802.11 a/n/ac/ax |
| CATV Interface | |
| Interface type | 1*RF |
| Optical receiving wavelength | 1550nm |
| RF output level | 80±1.5dBuV |
| Input optical power | 0~-15dBm |
| AGC range | 0~-12dBm |
| Optical reflection loss | >14 |
| MER | >31@-15dBm |
