ONT-2GE-RF-DW FTTH Dual Band 2GE+CATV+WiFi XPON ONT

Model Number: ONT-2GE-RF-DW

Brand: Softel

MOQ: 1

gou Support EasyMesh WIFI Function

gou Support 2.4GHz and 5GHz Dual Band WIFI

gou Compliance with IEEE 802.3ah(EPON) & ITU-T G.984.x(GPON)

Product Detail

Technical Parameters

Interface

Network Application

Download

01

Product Description

Overviews

ONT-2GE-RFDW is an advanced optical network unit device, which is specially designed to meet the multi-service integration network. It is a part of XPON HGU terminal, very suitable for FTTH/O scenarios. This cutting-edge device is equipped with a series of carefully selected features to meet the changing needs of users who require high-speed data services and high-quality video services.

With its two 10/100/1000Mbps ports, Dual-band WiFi 5(2.4G+5G) port and radio frequency interface, the ONT-2GE-RFDW is the ultimate solution for all users who need reliable and fast data transmission, seamless video streaming and uninterrupted Internet . The device is very efficient and ensures top-notch quality of service for various services such as video streaming or mass downloads.

In addition, ONT-2GE-RFDW has very good compatibility with other devices and networks, and it is very easy to install and configure. This makes it ideal for users looking for uninterrupted and hassle-free internet access. Meet and exceed China Telecom CTC2.1/3.0, IEEE802.3ah, ITU-T G.984 and other industry standards.

In short, the ONT-2GE-RFDW is an example of cutting-edge technology developed to meet users' growing demands for high-speed data transmission, seamless video streaming, and uninterrupted Internet access. It offers great performance, easy installation and great compatibility, making it the best choice for those looking for premium internet service.



Specific Features

ONT-2GE-RFDW is a highly advanced and optimized optical network unit device that complies with IEEE 802.3ah(EPON) and ITU-T G.984.x(GPON) standards.

The device also complies with IEEE802.11b/g/n/ac 2.4G & 5G WIFI standards, while supporting IPV4 & IPV6 management and transmission.

In addition, ONT-2GE-RFDW is equipped with TR-069 remote configuration and maintenance service, and supports Layer 3 gateway with hardware NAT. The device also supports multiple WAN connections with routed and bridged modes, as well as Layer 2 802.1Q VLAN, 802.1P QoS, ACL, IGMP V2, and MLD proxy/snooping.

Furthermore, ONT-2GE-RFDW supports DDSN, ALG, DMZ, firewall and UPNP services, as well as CATV interface for video services and bi-directional FEC. The device is also compatible with OLTs of various manufacturers, and automatically adapts to the EPON or GPON mode used by the OLT. ONT-2GE-RFDW supports dual-band WIFI connection at 2.4 and 5G Hz frequencies and multiple WIFI SSIDs.

With advanced features like EasyMesh and WIFI WPS, the device provides users with an unrivaled uninterrupted wireless connection. Additionally, the device supports multiple WAN configurations, including WAN PPPoE, DHCP, Static IP, and Bridge Mode.  ONT-2GE-RFDW also has CATV video services to ensure fast and reliable transmission of hardware NAT.

In summary, the ONT-2GE-RFDW is a highly advanced, efficient and reliable device that offers a range of features to provide users with high-speed data transmission, seamless video streaming and uninterrupted internet access. It meets and exceeds industry standards, making it the perfect solution for those looking for top-notch internet service.



ONT-2GE-RF-DW FTTH Dual Band 2GE+CATV+WiFi XPON ONT
Hardware Parameter
Interface  1* G/EPON+2*GE+2.4G/5.8G WLAN+1*RF
Power Adapter Input  100V-240V AC, 50Hz-60Hz
Power Supply  DC 12V/1.5A
Indicator Light  POWER/PON/LOS/LAN1/ LAN2 /2.4G/5G /RF/OPT
Button  Power switch Button, Reset Button, WLAN Button, WPS Button
Power Consumption  <18W
Working Temperature  -20℃~+50℃
Environment Humidity  5% ~ 95% (Non-condensing)
Dimension  180mm x 133mm x 28mm (L×W×H Without antenna)
Net Weight  0.3Kg
PON Interfaces
Interface Type  SC/APC, CLASS B+
Transmission Distance  0~20km
Working Wavelength  Up 1310nm; Down 1490nm; CATV 1550nm
Rx Optical Power Sensitivity  -27dBm
Transmission Rate:
GPON  Up 1.244Gbps; Down 2.488Gbps
EPON  Up 1.244Gbps; Down 1.244Gbps
Ethernet Interfaces
Interface Type  2* RJ45 Ports
Interface Parameters  10/100/1000BASE-T
Wireless Features
Interface Type  External 4*2T2R External antenna
Antenna Gain  5dBi
Interface Maximum Rate
2.4G WLAN  300Mbps
5.8G WLAN  866Mbps
Interface Working Mode
2.4G WLAN  802.11 b/g/n
5.8G WLAN  802.11 a/n/ac
CATV Features
Interface Type  1*RF
Optical Receiving Wavelength  1550nm
Rf Output Level  80±1.5dBuV
Input Optical Power  +2~-15dBm
Agc Range  0~-12dBm
Optical Reflection Loss   >14
MER  >31@-15dBm

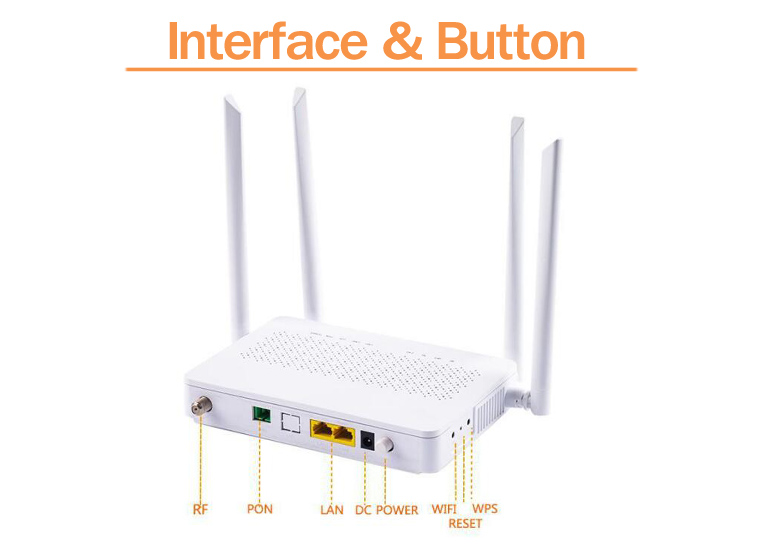

ONT-2GE-RFDW Interface

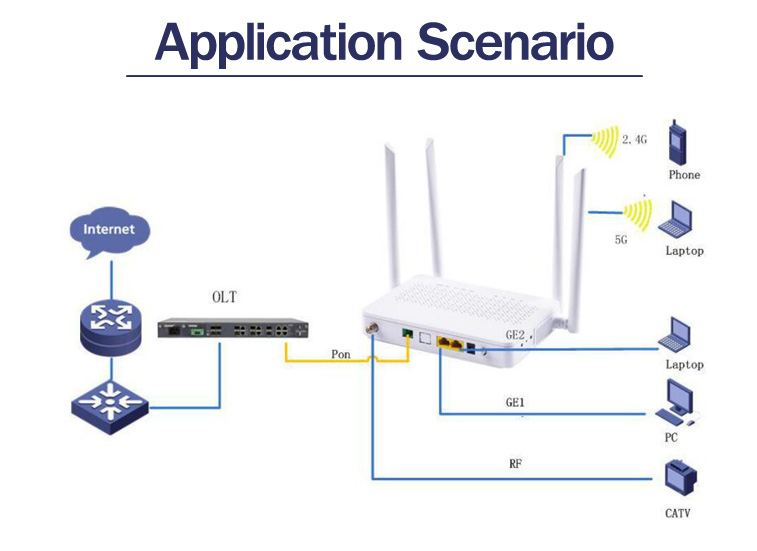

ONT-2GE-RFDW Application Scenario







ONT-2GE-RF-DW FTTH Dual Band 2GE+CATV+WiFi XPON ONT Datasheet.PDF
