OLT-G1V FTTH Single PON Port Mini GPON OLT with 10GE(SFP+) Uplink
Model Number: OLT-G1V
Brand: Softel
MOQ: 1
10GE(SFP+) Uplink
High Performance Chipset
Built-in PON SFP Transceiver, Easy Deployment
01
Product Description
Brief Summary
OLT-G1V is a high-performance, cost-effective box-type GPON OLT, with a single PON port, a splitting ratio of up to 1:128, a maximum transmission distance of 20KM, and an uplink and downlink bandwidth of 1.25Gbps/2.5Gbps.

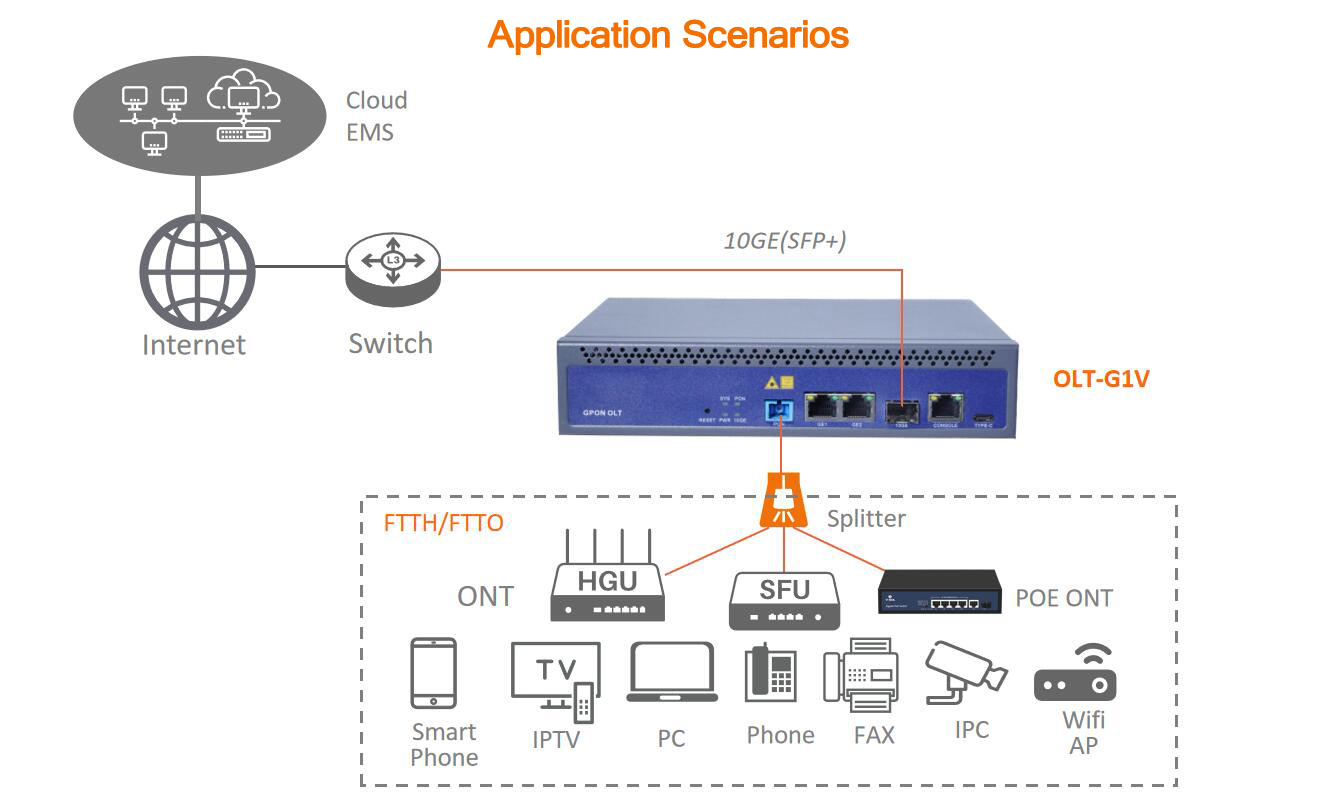

Mini metal case, built-in PON optical module, easy to deploy, high-performance chipset to ensure smooth and efficient operation. The OLT-G1V is ideal for FTTH, SOHO, small business offices, and other application scenarios that require a reliable and economical GPON solution. Additionally, it features 10GE(SFP+) uplinks for more versatile connectivity options.
GPON Function
Tcont DBA, Gemport traffic
In compliant with ITU-T984.x standard
Support data encryption, multi-cast, port VLAN, separation, etc
Support ONT auto-discovery/link detection/remote upgrading
Support VLAN division and user separation to avoid broadcast storm
Support power-off alarm function, easy for link problem detection
Support broadcasting storm resistance

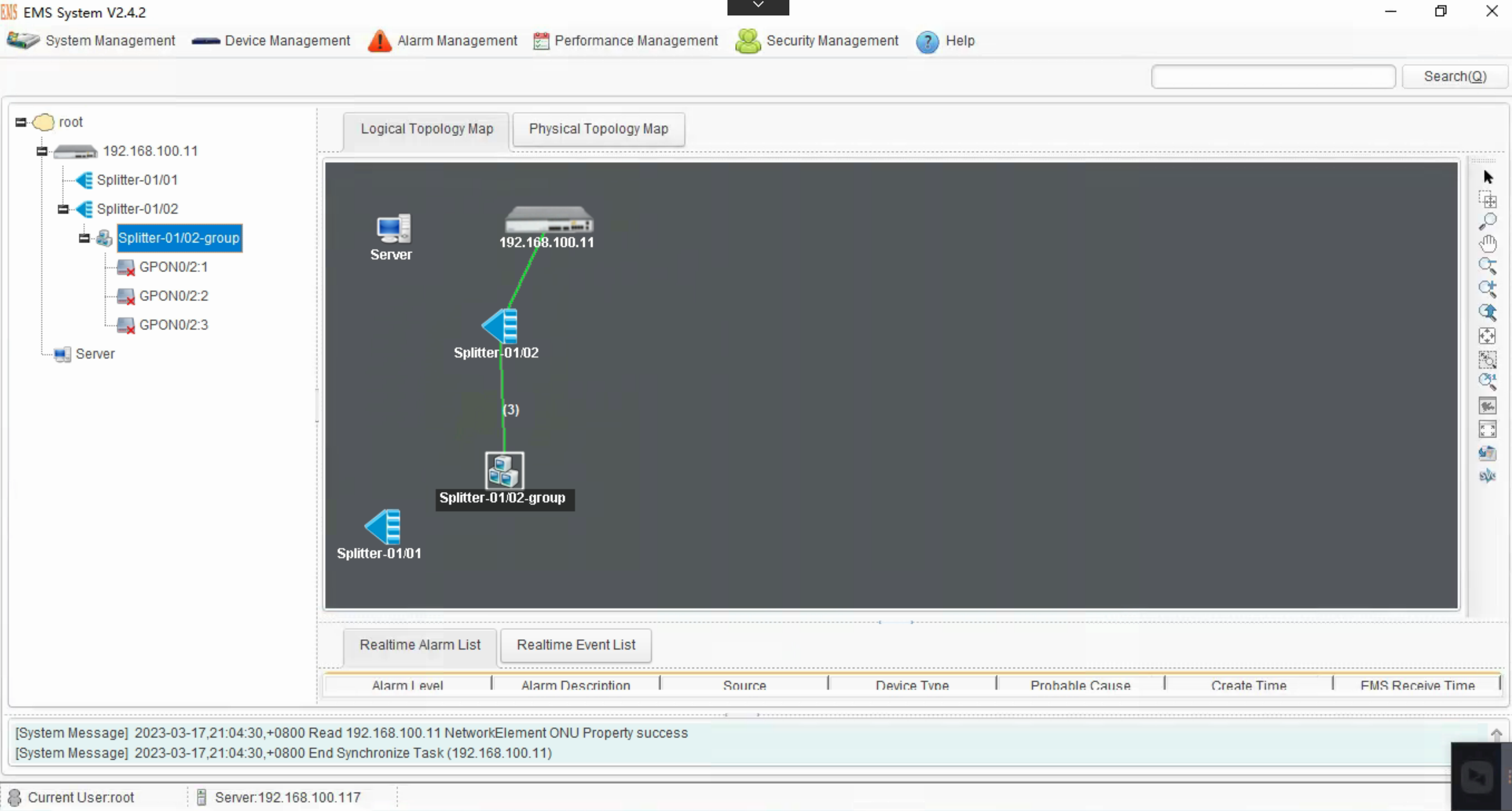

Management Function
User management
Alarm management
Telnet, CLI, WEB are all supported
Customized info is available to show on the Management Page
Port Status monitoring and configuration management

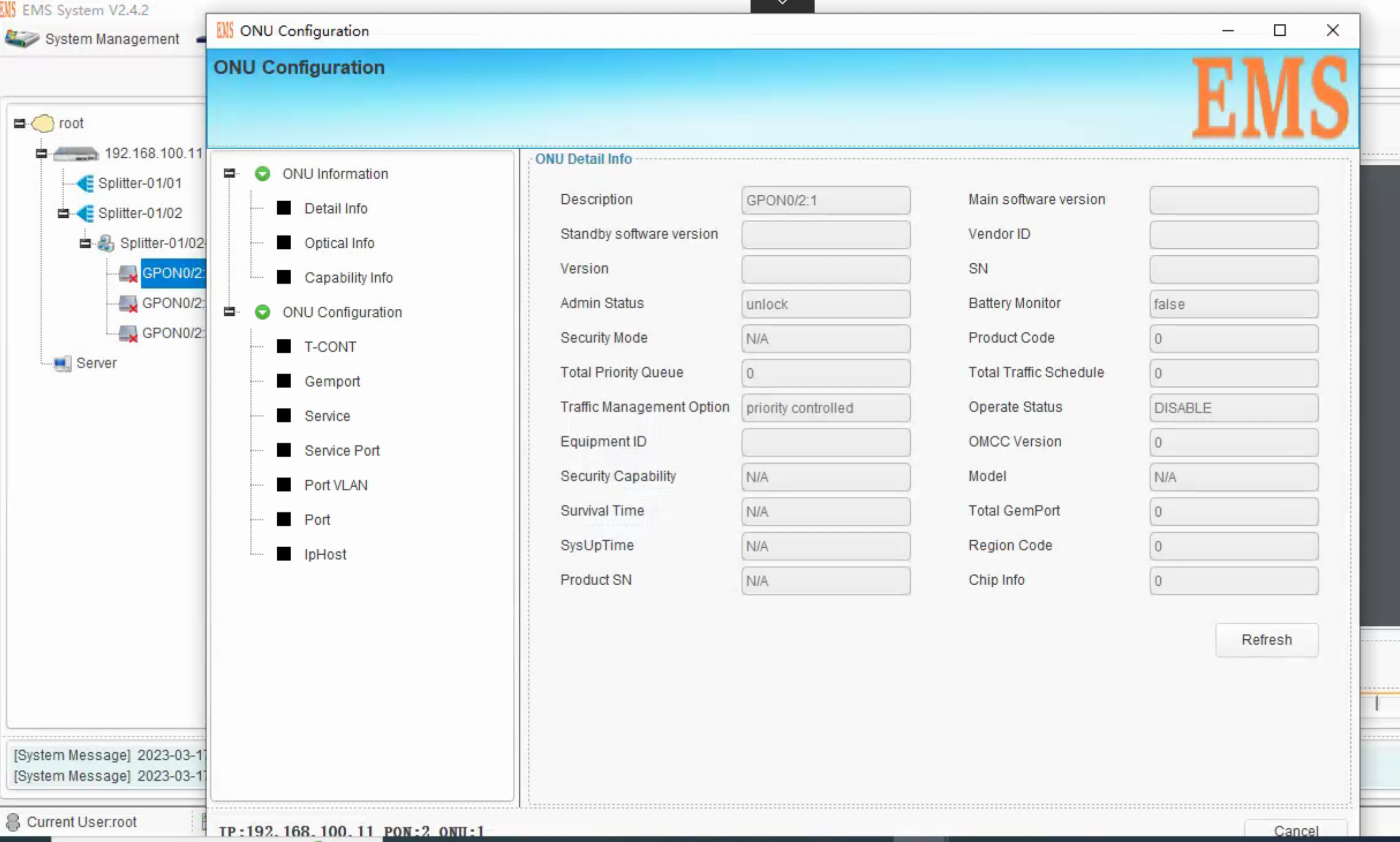

Online ONT configuration and management
Software Upgraded Regularly by remote
Layer2 Switch
1K Mac address, Access control list
Support Port VLAN, up to 4096 VLANs
Support VLAN tag/Un-tag, VLAN transparent transmission
Support storm control based on port
Support port isolation and rate limitation
Support 802.1D and 802.1W, IEEE802.x flowcontrol
Port stability statistic and monitoring
| Hardware Information | ||||
| Dimension (L*W*H) | 224mm*199mm*43.6mm | Working Temperature | 0°C ~+55°C | |
| Weight | Weight | Storage Temperature | -40~+85°C | |
| Power Adapter | DC 12V 2.5A | Relative Humidity | 10~85% (non-condensing) | |
Technical Support
7/24 Online Support
Remote online detection and technical support
Engineers are profession, patient and good at English.
Customized Service
Product appearance and packaging
Product functions and special requirements
Open some software customization functions
Friendly Communication
Warmly services with careful attentions.
Customers solutions are replied in hours
Special and uncommon Inquiries are supported
R&D Investment
Professional R&D team
New features continue to be launched
New technologies are constantly being developedd
Warranty
The strict 3-layer QC procedure
Different products provide 1-2 years warranty
Perfect equipment warranty and maintenance process
| Item | OLT-G1V | |
| Chassis | Rack | 1U |
| Uplink Port | QTY | 3 |
| RJ45(GE) | 2 | |
| SFP(GE)/SFP+(10GE) | 1 | |
| GPON Port Specification | QTY | 1 |
| Fiber Type | 9/125μm SM | |
| Connector | SC/UPC, Class C++, C+++ | |
| GPON port speed | Upstream 1.244Gbps, Downstream 2.488Gbps | |
| Wavelength | TX 1490nm, RX 1310nm | |
| Max splitting ratio | 1:128 | |
| Transmission Distance | 20KM | |
| Management Ports | 1*CONSOLE port, 1*USB Type-C | |
| Backplane Bandwidth (Gbps) | 16 | |
| Port Forwarding Rate(Mpps) | 23.808 | |
| Management Mode | Console/WEB/Telnet/CLI | |
| Lightning protection level | Power supply | 4KV |
| Device Interface | 1KV | |
OLT-G1V FTTH Single PON Port Mini GPON OLT Data Sheet_En.PDF
