ONT-4GE-UW630 FTTH Broadband Access AX3000 WiFi 6 ONU

Model Number:  ONT-4GE-UW630

Brand: Softel

MOQ: 1

gou  Next-Gen Gigabit WiFi6

gou  2.4GHz & 5GHz Dual Band Speed up to 3Gbps

gou Tray-mounted Fiber Structure

Product Detail

Technical Parameters

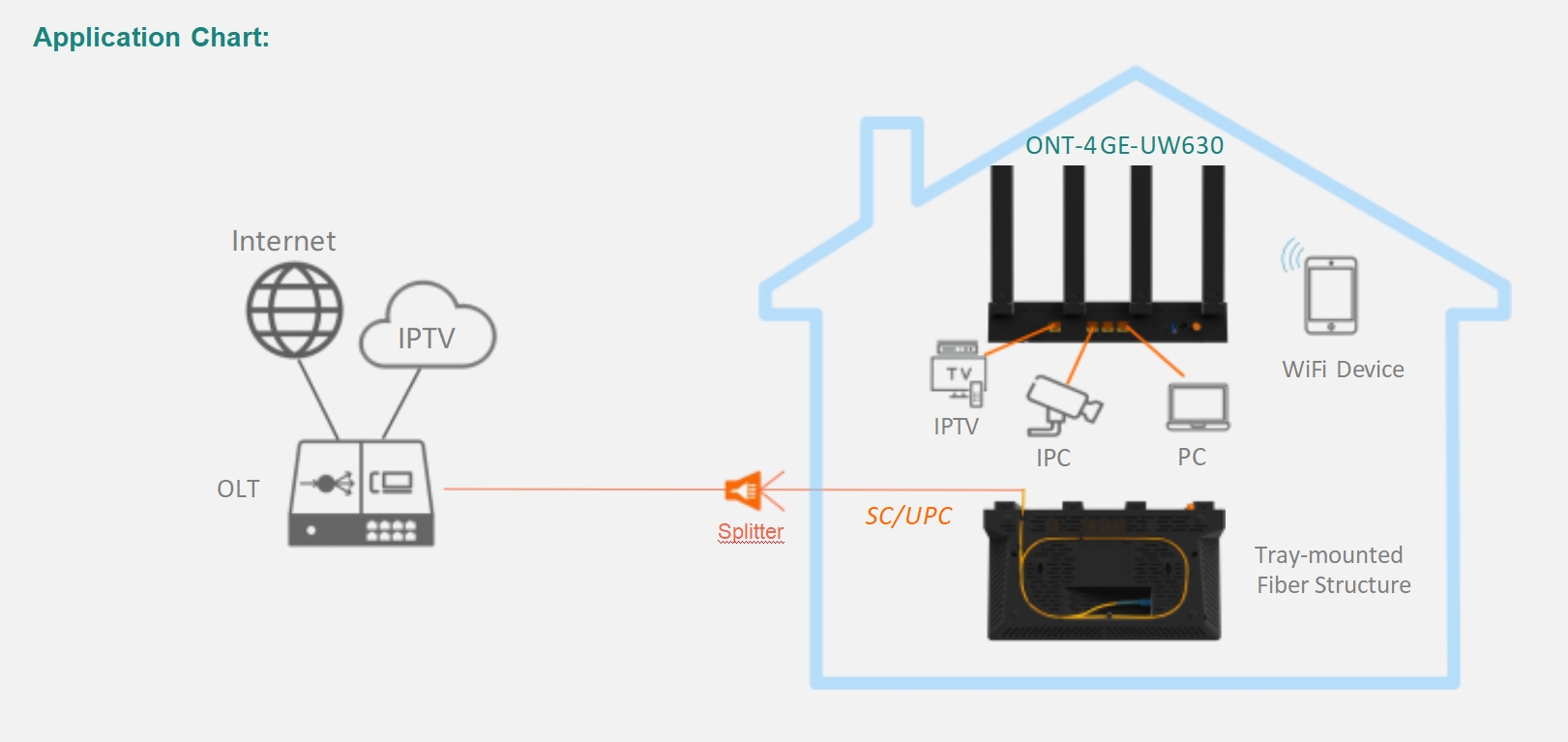

Network Application

Download

01

Product Description



High Performance

Solution



Next-Gen Gigabit WiFi6
2.4GHz & 5GHz Dual Band
Speed up to 3Gbps

Tray-mounted Fiber
Structure
Triple-play Services

Black/White Color Shell
Optional



Brief Introduction

ONT-4GE-UW630 (4GE+WiFi6 XPON HGU ONT) is a broadband access device designed to meet the demands of fixed network operators for FTTH and triple-play services.

This ONT is based on a high-performance chip solution, supporting XPON dual-mode technology (EPON and GPON). With WiFi speeds of up to 3000Mbps, it also supports IEEE 802.11b/g/n/ac/ax WiFi 6 technology and other Layer 2/Layer 3 features, providing data services for carrier-grade FTTH applications. In addition, this ONT supports OAM/OMCI protocols, allowing configuration and management of various services on the SOFTEL OLT, making it easy to manage and maintain, and ensuring QoS for various services. It complies with international technical standards such as IEEE802.3ah and ITU-T G.984.

The ONT-4GE-UW630 comes in two color options for its body shell, black and white. With a bottom disc fiber structure design, it can be placed on a desktop or wall-mounted, adapting effortlessly to various scene styles!

ONT-4GE-UW630 4GE+WiFi6 XPON HGU ONT

Hardware Parameter

Net weight 0.55Kg
Operating
condition
Operating temp: -10 ~ +55。C
Operating humidity: 5 ~ 95% (non-condensed)
Storing
condition
Storing temp: -40 ~ +70。C
Storing humidity: 5 ~ 95% (non-condensed)
Power
adapter
12V/1.5A
Power supply ≤18W
Interface 1XPON+4GE+1USB3.0+WiFi6
Indicators PWR ,PON ,LOS ,WAN ,LAN1~4 ,2.4G ,5G , WPS ,USB
Interface parameter

PON
Interface

• 1XPON port(EPON PX20+ and GPON Class B+)
• SC single mode, SC/UPC connector
• TX optical power: 0~+4dBm
• RX sensitivity: -27dBm
• Overload optical power: -3dBm(EPON) or – 8dBm(GPON)
• Transmission distance: 20KM
• Wavelength: TX 1310nm, RX1490nm
User
interface
• 4×GE, Auto-negotiation,RJ45 ports
Antenna 2.4GHz 2T2R , 5GHz 3T3R
Function Data
Internet
connection
Support Routing Mode
Multicast • IGMP v1/v2/v3, IGMP snooping
• MLD v1/v2 snooping

WIFI

• WIFI6: 802. 11a/n/ac/ax 5GHz, 2.4GHz
• WiFi: 2.4GHz 2×2, 5GHz 3×3, 5
antenna(4*External antenna, 1*Internal
antenna), rate up to 3Gbps,Multiple SSID
• WiFi Encryption: WPA/WPA2/WPA3
• Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM
• Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band
L2 802. 1p Cos,802. 1Q VLAN
L3 IPv4/IPv6, DHCP Client/Server,PPPoE, NAT, DMZ, DDNS
Firewall Anti-DDOS, Filtering Based on ACL/MAC /URL

ONT-4GE-UW630









ONT-4GE-UW630 4GE+WiFi6 XPON HGU ONT Datasheet.pdf
