SFT162x 16 Channels AV to RF Agile Modulator
Model Number: SFT161X
Brand: Softel
MOQ: 1
Support 16 RF channels high-density integration
Support 45~860MHz full frequency range
SAW filtering for maintenance free adjacent channel configuration
01
Product Description
1. Product Overview

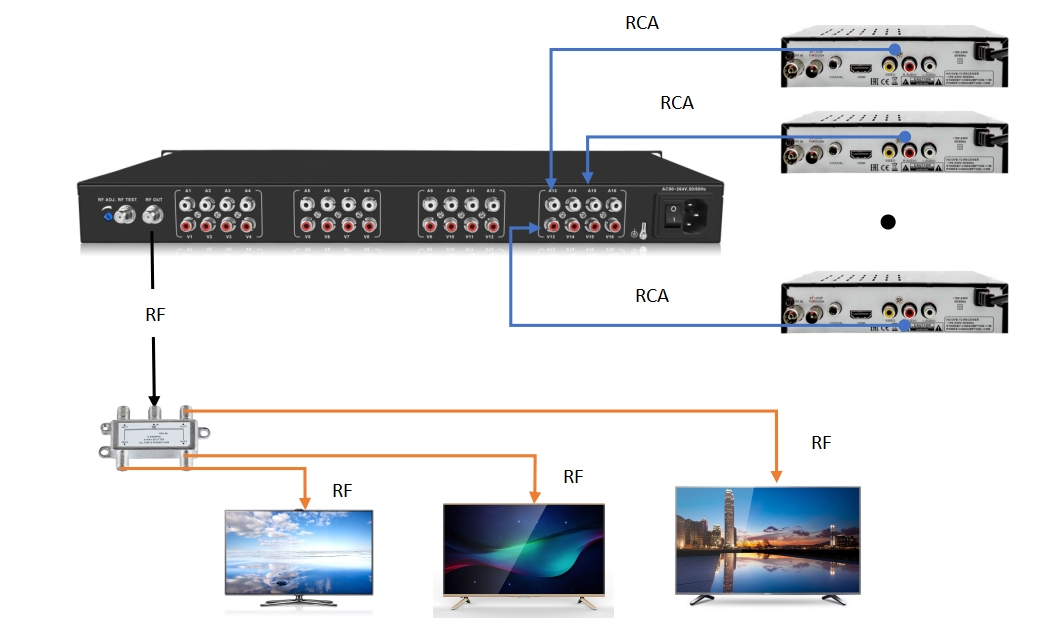

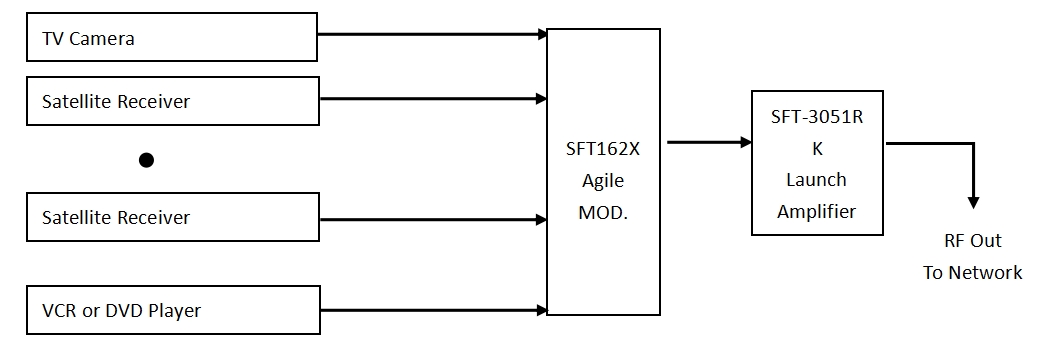

The SFT162X is a professional quality agile modulator with 16 output channels in 1RU size. It is SAW filtered and microprocessor controlled with an output capability of 860MHz. Setup and tuning are easy and simple by the front panel. The unit offers high performance, low cost and compact design for the system operators.
2. Key features
- SAW filtering for maintenance free adjacent channel configuration
- Double I.F loop for superior in band C/N
- Fewer cables and connector but greater reliability
- Rack mountable 1RU space saving shipping cost
- Front panel accessible level controls for easy set-up and adjustment
- Double I.F loop for superior in band C/N
- Fewer cables and connector but greater reliability
- Rack mountable 1RU space saving shipping cost
- Front panel accessible level controls for easy set-up and adjustment
| SFT162x 16 Channels AV to RF Agile Modulator | ||
| OUTPUT | ||
| RF | Output Connector | F Connector @ 75Ohms |
| Output Frequency | 45~860MHz any 16 channels | |
| Output Level | 113 dBµV (Adj.) | |
| Out-band Rejection | ≥60dB | |
| A / V Ratio | -21~ -18 dB (Adj.) | |
| Frequency Stability | ±5kHz | |
| Test Point | -20 dB ±3dB | |
| INPUT | ||
| VIDEO | Video Input Level | 0.6-1.5Vp-p (87.5% Modulation) |
| Input Connector | Yellow RCA Jack | |
| Video C/N | 60dB | |
| AUDIO | Input Level | 0.8Vp-p(25KHz Peak Deviation) |
| Input Connector | White RCA Jack | |
| GENERAL | ||
| POWER AND SIZE | Voltage | AC 90 ~ 264V @ 47~63Hz |
| Power Consumption | 100W | |
| Cooling Fans | 3 | |
| Dimension | 48.4*32.9*4.44 (CM) | |
| Carton Size | 55*39*13 (CM) | |
| Shipping Weight | 6KG | |
