SR100AW HFC Fiber AGC Node Optical Receiver built-in WDM
Model Number: SR100AW
Brand: Softel
MOQ: 1
47MHz to 1003MHz frequency bandwidth with built-in WDM
Built-in optical AGC control circuit to ensure stable output level
Ultra-low current and ultra-low power consumption
01
Product Description
Introduction
The optical receiver is a home-type optical receiver designed to meet the needs of modern HFC broadband transmission networks. The frequency bandwidth is 47-1003MHz.
Features
◇ 47MHz to 1003MHz frequency bandwidth with built-in WDM;
◇ Built-in optical AGC control circuit to ensure stable output level
◇ Adopt high efficiency switching power adapter with wide voltage adaptation range;
◇ ultra-low current and ultra-low power consumption;
◇ Optical power alarm adopts LED indicator display;
| Ser. | Projects | Technical Parameters | Note |
| 1 | CATV Received Wavelength | 1550±10nm | |
| 2 | PON Received Wavelength | 1310nm/1490nm/1577nm | |
| 3 | Channel Separation | >20dB | |
| 4 | Optical reception responsivity | 0.85A/W(1550nm typical value) | |
| 5 | Input optical power range | -20dBm~+2dBm | |
| 6 | Fibre type | single mode (9/125mm) | |
| 7 | Fibre optic connector types | SC/APC | |
| 8 | Output Level | ≥78dBuV | |
| 9 | AGC realm | -15dBm~+2dBm | Output level ±2dB |
| 10 | F-type RF connector | Fractional | |
| 11 | Frequency bandwidths | 47MHz-1003MHz | |
| 12 | RF in-band flatness | ±1.5dB | |
| 13 | System impedance | 75Ω | |
| 14 | reflective loss | ≥14dB | |
| 15 | MER | ≥35dB | |
| 16 | BER | <10-8 |
| Physical parameters | |
| Sizes | 95mm ×71mm ×25mm |
| Weight | 75g max |
| Usage environment | |
| Conditions of use | Temp： 0℃~+45℃Humidity level：40%~70% non-condensing |
| Storage conditions | Temp： -25℃~+60℃Humidity level：40%~95% non-condensing |
| Power supply range | Import: AC 100V-~240VOutput: DC +5V/500mA |
| Parameters | Notation | Min. | Typical value | Max. | Unit | Test conditions | |
| Transmission working wavelength | λ1 | 1540 | 1550 | 1560 | nm | ||
| Reflected operatingwavelength | λ2 | 1260 | 1310 | 1330 | nm | ||
| λ3 | 1480 | 1490 | 1500 | nm | |||
| λ4 | 1575 | 1577 | 1650 | nm | |||
| responsiveness | R | 0.85 | 0.90 | A/W | po=0dBmλ=1550nm | ||
| transmission isolation | ISO1 | 30 | dB | λ=1310&1490&1577nm | |||
| Reflectance | ISO2 | 18 | dB | λ=1550nm | |||
| return loss | RL | -40 | dB | λ=1550nm | |||
| Insertion Losses | IL | 1 | dB | λ=1310&1490&1577nm | |||

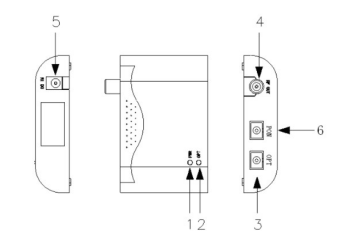

1. +5V DC power indicator
2. Received optical signal indicator, when the received optical power is less than -15 dBm indicator lights red, when the received optical power is greater than -15 dBm Indicator light is green
3. Fibre optic signal access port, SC/APC
4. RF output port
5. DC005 power supply interface, connect to power adapter +5VDC /500mA
6. PON reflective end fibre signal access port, SC/APC
