SR4020AW 2 Outputs FTTH AGC Fiber Optical Node with WDM
Model Number: SR4020AW
Brand: Softel
MOQ: 1
Built-in AGC and WDM
High-quality Aluminum Casing
Output Gain is Manually Adjustable
01
Product Description
Brief Overview
SR4020AW optical receiver is a home optical receiver with optical fiber access as its ultimate goal. It is suitable for FTTH (fiber to the home) network fiber subscriber access terminals, enabling analog or digital signals to enter the home. The machine uses low-power photodetectors, GaAs, and optical AGC technology to meet the fiber-to-the-home CATV reception needs. This device can increase WDM and achieve triple play.

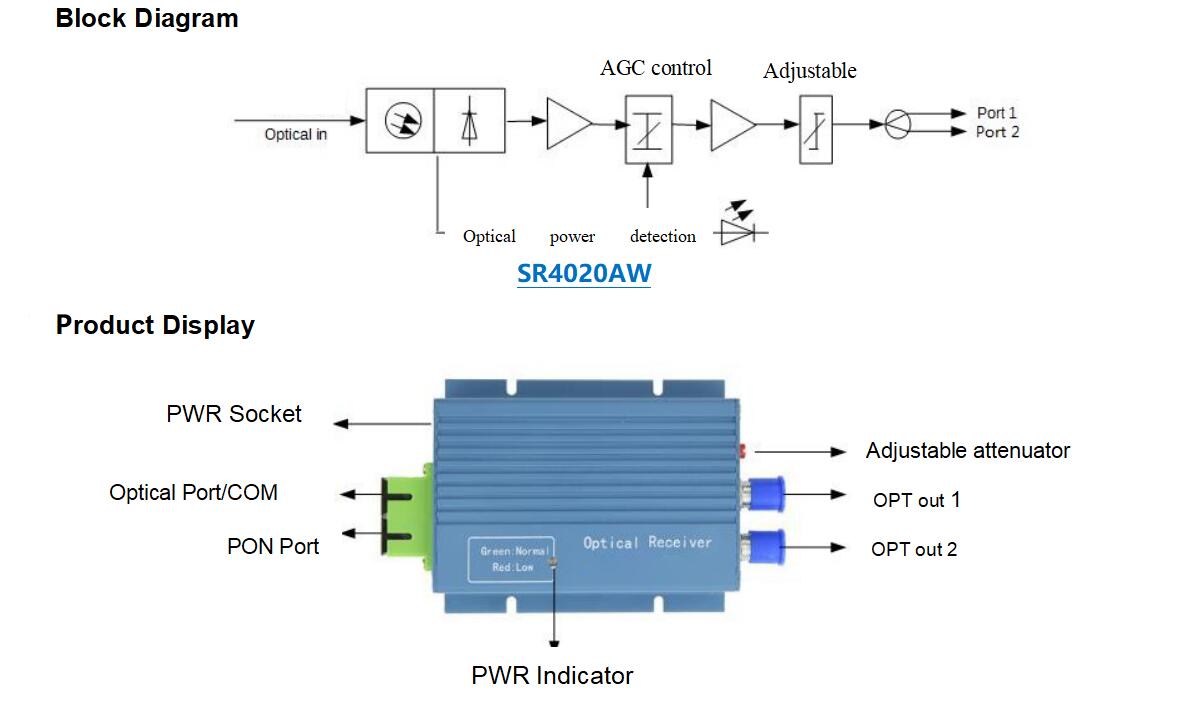

Performance Characteristics
- High-quality aluminum profile shell with good heat dissipation.
- RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -18dBm reception at a minimum and the -10dBm reception of an analog signal at a minimum.
- With optic input AGC (AGC range is customized).
- Low-power design, using a high-efficiency switching power supply to ensure high reliability and high stability of the power supply. The overall power consumption is less than 1W, with a light detection circuit.
- Multi-stage lightning protection devices (TVS transient suppression diodes), and lightning protection systems are tight to ensure the safe operation of the equipment.
- Built-in WDM can realize single-fiber home (1490/1310/1550nm) tri-network convergence applications.
- Built-in optical isolator, input to achieve 1490/1310nm isolation.
- The output gain is manually adjustable (0~18dB) and the output level is >80dBuV.
- SC/APC or FC/APC or custom optical connectors, metric or imperial RF interfaces.
- It can realize the power supply mode of the output feed.
- Single or dual outputs are optional
Tip and Note:
Test conditions: 59 PAL-D analog television channel signals at 550 MHz frequency range, in the range of 550 MHz to 862 MHz, under specified link loss conditions
The digital modulation signal is transmitted within the rate range, the level of the digital modulation signal (within the 8 MHz bandwidth) is 10 dB lower than the carrier level of the analog signal, and the optical receiver input optical power is 0dBm, measuring C/N, CTB, CSO.
| SR4020AW 2 Outputs FTTH AGC Fiber Optical Node with WDM | |||
| Input Optical Power | 0dBm~-10dBm(Analog Signal） | AGC Control Range | (0 ~ -9)dBm(Default); (-3 ~ -12)dBm; (-6 ~ -15)dBm Optional. |
|
0dBm~-18dBm(Digital Signal） |
CTB(note) |
≥65dB |
|
| optical reflection loss |
＞45 dB |
CSO(note) |
≥62dB |
| Optical connector form |
FC/APC or SC/APC or FC/PC or SC/PC |
Host voltage |
DC5V |
| Frequency Range |
45~1006MHz |
Adapter voltage |
AC90V ~145V&AC145V ~ 265V or
custom |
| In-band flatness |
±1dB@45~1006MHz |
Infeed voltage |
DC5V |
| RF output reflection |
≥16dB@ 47~550MH ; |
Operating temperature |
-20℃ ~+55℃ |
| Gain adjustment range |
0-18dB |
power |
<1W |
| Output level | （78~80）dBuV(AGC:@-9~+0dBm， single port)(Pin=0dBm) | Product net size |
129×79×26mm |
| Output port number |
1 or 2 |
10 pack sizes |
313×245×83mm |
| RF output impedance |
75Ω |
FCL package size (100pcs) |
500×440×345mm |
| Carrier to Noise Ratio |
≥51dB |
Product net weight |
0.17kg |
