1550nm High Power Optical Amplifier 4 Outputs WDM EDFA
Model Number: SPA-04-XX
Brand: Softel
MOQ: 1
High-quality Laser and Perfect Warning Mechanism
Built-in WDM(1310/1490/1550nm) Optional
Dual Power Supply Optional for DC 48V/AC 110-220V
01
Product Description

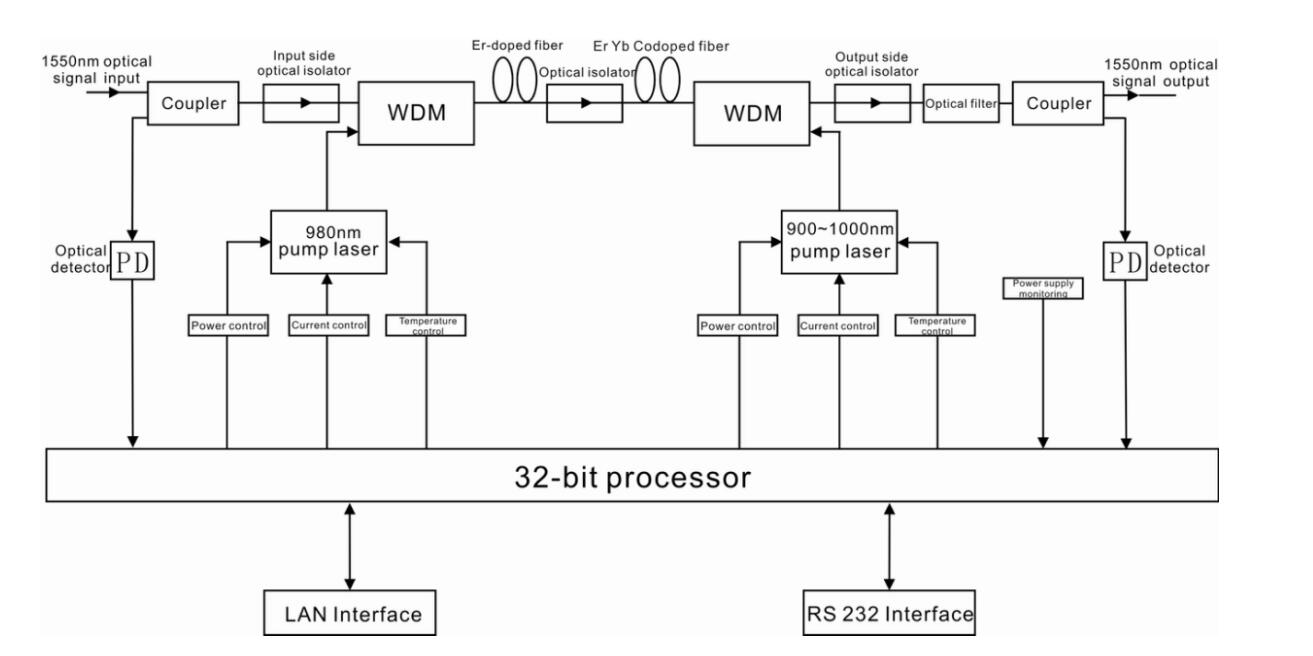

SPA-04-XX is a low-noise high-performance Er Yb co-doped fiber amplifier. Each output built-in CWDM (1310/1490/1550) wavelength division multiplexer. Conveniently multiplex the data stream of OLT and ONU to the fiber amplifier output by 1310nm and 1490nm optical connectors. This reduced the equipment quantity and improved the system indexes and reliability. It is the ideal equipment for the FTTx network and provides a flexible and low-cost solution for the integration of three networks and the FTTH.
-Adopts Er Yb Codoped double-clad fiber technology;
-Output ports: 4 - 128 optional;
-Optical Output Power: Total Output up to 10000mW;
-Low noise figure: < 5dB when input is 0dBm;
-Perfect network management interface, in line with standard SNMP network management;
-Intelligent temperature control systems make power consumption lower.
|
SPA-04-XX 1550nm Optical Amplifier 4 Outputs WDM EDFA
|
||||
|
Item |
Unit |
Technique parameters |
||
|
CATV pass through wavelength |
nm |
1545 – 1565 |
||
|
PON pass through wavelength |
nm |
1260 – 1360 1480 – 1500 |
||
|
PON insertion loss |
dB |
<0.8 |
||
|
Isolation |
db |
>15 |
||
|
CATV optical input power range |
dBm |
-3 – +10 |
||
|
Maximum optical output power |
dBm |
36 |
||
|
Output power stability |
dBm |
±0.5 |
||
|
Noise figure |
dB |
≤ 5.0 (Optical input power 0dBm, λ=1550nm) |
||
|
Return loss |
Input |
dB |
≥ 45 |
|
|
Output |
dB |
≥ 45 |
||
|
Optical Connector Type |
|
SC/APC |
||
|
C/N |
dB |
≥ 50 |
Test condition according to GT/T 184-2002. |
|
|
C/CTB |
dB |
≥ 63 |
||
|
C/CSO |
dB |
≥ 63 |
||
|
Power supply voltage |
V |
A: AC160V – 250V(50 Hz); B: DC48V |
||
|
Consumption |
W |
≤ 70 |
||
|
Operating temperature range |
°C |
-10 – +42 |
||
|
Maximum operating relative humidity |
% |
Max 95% no condensation |
||
|
Storage temperature range |
°C |
-30 – +70 |
||
|
Maximum storage relative humidity |
% |
Max 95% no condensation |
||
|
Dimension |
mm |
483(L)× 440(W)× 88(H) |
||
SPA-04-XX 1550nm 4 Outputs WDM EDFA Spec Sheet.pdf
