1550nm Booster DWDM EDFA 8 Ports Fiber Amplifier for WDM Network
Model Number: SPA-08-XX
Brand: Softel
MOQ: 1
Compatible with EPON, GPON, XG(S)-PON
Dual Power Supply Optional, 1+1 Backup
Total Output Power Optional 1260~13000mW(31~41dBm)
01
Product Description
Brief Discription

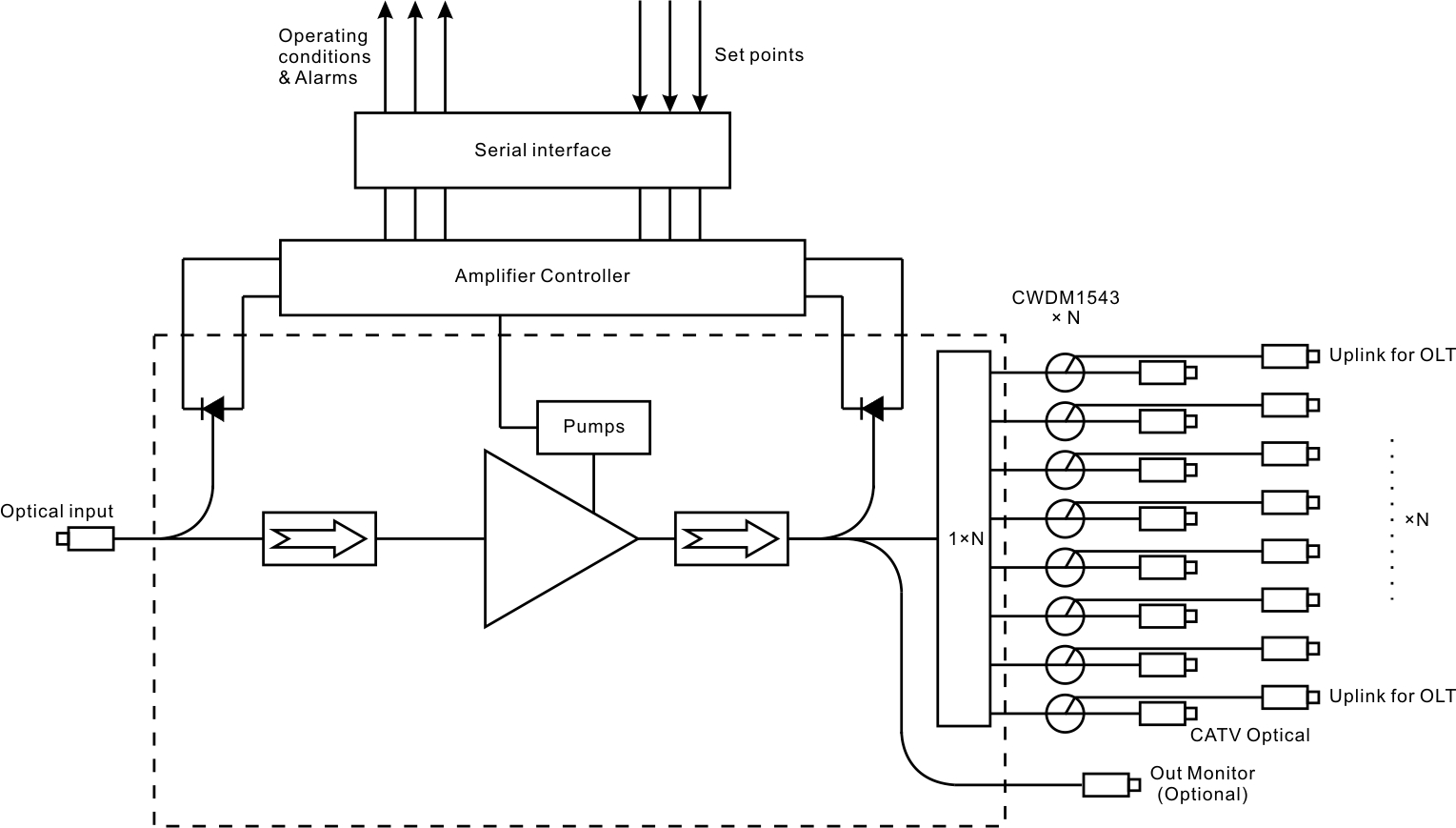

SPA-08-XX (2RU) series is a low noise, high performance, FTTP high power, multi-ports optical amplifier with a gain spectrum band within 1540~1563nm. Each output port for the optical amplifier has a built-in well-performed CWDM. Every external up-link optical port of the optical amplifier can connect with the OLT PON port very conveniently. Each 1550nm (CATV)'s output optical port multiplex 1310/1490n's data stream, in order to reduce the quantity of the component and improve the index and reliability of the system.
SOFTEL SPA Series optical amplifier can be compatible with any FTTx PON Technology. It offers a flexible and low-cost solution for three-network integration and Fiber to the Home.
SPA Series has an extremely low noise figure, the entire unit adopts twin-stage amplification, the pre-amplifier adopts low noise EDFA, output cascade adopts high power EYDFA. When input optical power Pin=0dBm, the noise figure of the unit is: Typ ≤4.5dB, Max ≤5.5dB, Unlike other kinds of products which need high optical power input to maintain lower noise figure.
SPA Series LCD at the front panel offers the work index of all equipment and warning alarms. The laser will switch off automatically if optical power is missing, which offers security protection for the laser. All the optical ports of the optical amplifier can be installed in the front panel or back panel.
SPA Series optional two-way optical input (built-in 2x1 optical switch), can be used for a self-healing ring network or redundant backup network.
SPA Series with carrier-class reliability and network security management, high quality, high reliability, and excellent cost performance is ideal for system integrators and system operators.
SPA00B optical amplifier: 19” 2RU chassis, total output power up to 41dBm (13000mW), use LC/APC, offers 128 optical outputs at most, 128 uplink optical ports.
Functional Features
•1540~1563nm operating bandwidth for optical amplifier
•Each output optical port is with built-in high-performance CWDM, single fiber three wavelengths, which can save optical fiber resources largely.
• Simplified machine-room links, improve the system reliability, and largely reduced the .network maintenance cost
•Can be compatible with any FTTx PON technology: EPON/GEPON, GPON, BPON, DPON
•Total output power optional 1260~13000 ( 31~41dBm )
•19” 2U rack up to optional 64 up-link ports, which are used in OLT; And 64 1550nm output optical ports, multiplex the 1310/1490nm data stream.
•Built-in low noise pre-amplifier, not necessary EDFA cascade, extremely lower the CNR, MER degradation of the system
•Low noise figure ( Typ ≤4.5dB, Max ≤5.5dB )
•Perfect RS232 ,SNMP
•Telecom level safety reliability and network management
•Efficient space, simple and reliable in construction/maintenance
•Optional dual optical input, built-in 2 × 1 optical switch
•Dual power supply optional, 1+1 backup
•Can reduce the 98% device space usage
•Can reduce the 85% device purchase cost
•Can reduce 95% power consumption
•Industry's best price-performance
|
SPA-08-XX 1550nm Booster DWDM EDFA 8 Ports Fiber Amplifier |
||||||||
|
Performance |
Index |
Supplement |
||||||
|
|
Min. |
Typ. |
Max. |
|
||||
|
Optical feature |
CATV operation wavelength |
(nm) |
1540 |
1563 |
CATV |
|||
|
|
OLT pass wavelength |
(nm) |
|
1310/1490 |
|
|||
|
|
CATV pass wavelength loss |
(dB) |
|
|
0.8 |
1550nm |
||
|
|
OLT pass wavelength loss |
(dB) |
|
|
0.8 |
1310/1490nm |
||
|
|
CATV & OLT isolation |
(dB) |
40 |
|
|
|
||
|
|
Number of uplink optical ports (for OLT) |
(pcs) |
|
|
64 |
|
||
| CATV input power (Pi) |
(dBm) |
-10 |
|
+10 |
|
|||
| Total output power1) |
(dBm) |
|
|
41 |
|
|||
| Number of output ports |
(pcs) |
|
|
64 |
|
|||
| Each port output power |
(dBm) |
0 |
|
22 |
|
|||
| Difference of each output power |
(dB) |
-0.5 |
|
+0.5 |
|
|||
| Output optical power monitoring |
(dB) |
|
-20 |
|
|
|||
| Output power adjustable range |
(dBm) |
-6 |
|
0 |
|
|||
| Noise figure |
(dB) |
|
4.5 |
5.5 |
SPA00B-1x口口口 |
|||
|
|
|
5.0 |
6.0 |
SPA00B-2x口口口 |
||||
| Switch time |
(ms) |
|
|
8.0 |
SPA00B-2x口口口 |
|||
| Output power adjustable range |
(dBm) |
-6 |
|
0 |
|
|||
| Polarization dependence loss |
(dB) |
|
|
0.3 |
|
|||
| Polarization dependence gain |
(dB) |
|
|
0.4 |
|
|||
| Polarization mode dispersion |
(ps) |
|
|
0.3 |
|
|||
| Input/output isolation |
(dB) |
30 |
|
|
|
|||
| Pump power leakage |
(dBm) |
|
|
-30 |
|
|||
| Echo loss |
(dB) |
55 |
|
|
APC |
|||
|
General feature |
Network management interface |
|
RJ45 |
SNMP |
||||
| Serial interface |
|
RS232 |
|
|||||
| Power supply |
(V) |
90 |
|
265 |
220VAC |
|||
|
|
30 |
|
72 |
-48VDC |
||||
| Power consume |
(W) |
|
|
50 |
|
|||
| Operation temp. |
(°C) |
-5 |
|
65 |
|
|||
| Storage temp. |
(°C) |
-40 |
|
80 |
|
|||
| Operation relative humidity |
(%) |
5 |
|
95 |
|
|||
| Size (W)×(D)×(H) |
(“) |
19×14.7×3.5 |
SPA00B(2U) |
|||||
