1550nm WDM EDFA 16 Ports CATV and PON Fiber Optical Amplifier with Touch Screen
Model Number: SPS-16X20-TS
Brand: Softel
MOQ: 1
4.3-inch colorful touchscreen
Adopts the top-brand pump laser
Compatible with EPON, GPON, and 10GPON.
01
Product Description
Functional Features
1. This 16 Ports WDM EDFA adopts a full touch screen operating system, which can display various indicators and other rich content in detail and intuitively. It is clear at a glance, easy to operate, and what you see is what you get. Users can easily and conveniently operate the equipment manual without operating the equipment.
2. The main menu adds a maintenance button with a rapid drop of 6dB. This function can quickly reduce 6dBm (≤18dBm output) at each port to avoid burning the SMD fiber core when plugging and unplugging l. It can quickly return to the original working state after maintenance.
3. Adopt top brand pump laser and double-clad active fiber.
4. Each output port has built-in CWDM.
5. Compatible with any FTTx PON: EPON, GPON, 10GPON.
6. The perfect optical path design of APC, ACC, ATC, AGC ensures the low noise, high output and high reliability of the device in the whole working band (1545~1565nm). Users can switch APC, ACC, AGC functions according to actual needs.
7. With low input or no input automatic protection function. When the input optical power is lower than the set value, the laser will automatically shut down to protect the operation safety of the equipment.
8. The output is adjustable, and the adjustment range is 0~-4dBm.
9. Front panel RF test (optional).
10. The switching time of the optical switch is short and the loss is small. It has the functions of automatic switching and forced manual switching.
11. Built-in dual power supply, automatic switching, support hot swap.
12. The operating parameters of the whole machine are controlled by the microprocessor, and the LCD status display on the front panel has multiple functions such as laser status monitoring, parameter display, fault alarm, and network management; once the operating parameters of the laser deviate from the allowable range set by the software, the system will Will call the police in time.
13. Provide standard RJ45 interface, support SNMP and WEB remote network management.
|

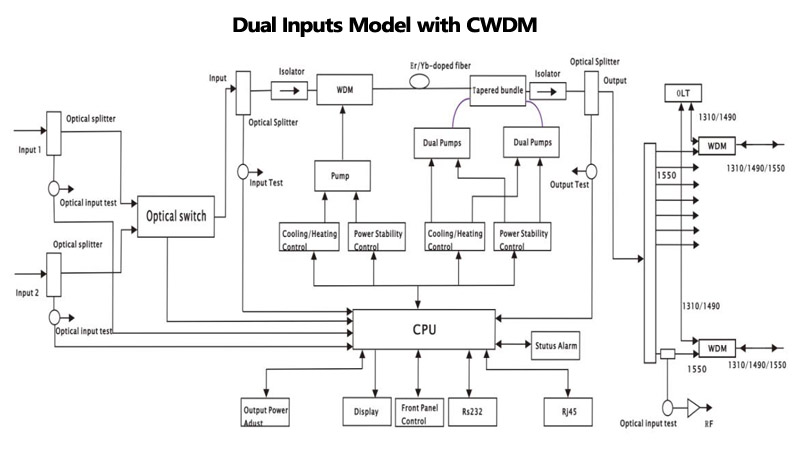

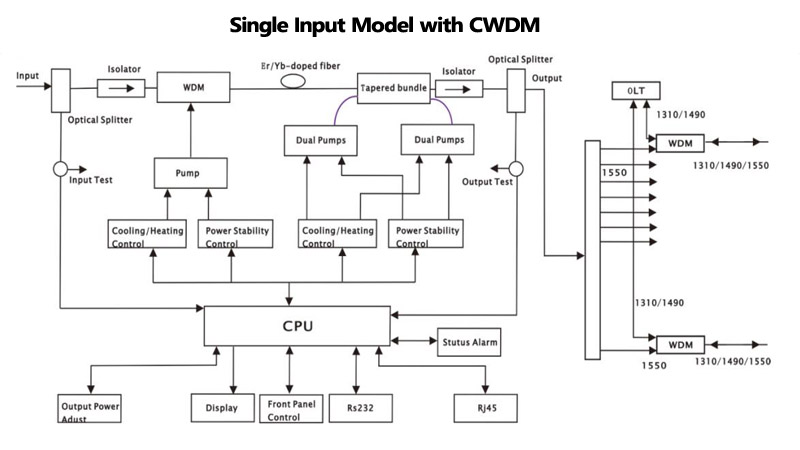

1550nm WDM EDFA 16 Ports CATV and PON Fiber Optical Amplifier with Touch Screen |
||||||
|
Category |
Items |
Unit |
Index |
Remarks |
||
|
Min. |
Typ. |
Max. |
||||
| Optical Index | CATV Operating Wavelength |
nm |
1545 |
|
1565 |
|
| OLT PON Pass Wavelength |
nm |
1310/1490 |
CWDM |
|||
| Optical Input Range |
dBm |
-10 |
|
+10 |
|
|
| Output Power |
dBm |
|
|
41 |
1dBm interval |
|
| No. of OLT PON Ports |
|
|
|
32 |
SC/APC, with CWDM |
|
|
|
|
|
64 |
LC/APC, with CWDM |
||
| No. of COM Ports |
|
|
|
64 |
SC/APC |
|
|
|
|
128 |
LC/APC |
|||
|
|
|
32 |
SC/APC, with CWDM |
|||
|
|
|
64 |
LC/APC, with CWDM |
|||
| CATV Pass Loss |
dB |
|
|
0.8 |
|
|
| OLT Pass Loss |
dB |
|
|
0.8 |
with CWDM |
|
| Output Adjustment Range |
dB |
-4 |
|
0 |
0.1dB each step |
|
| Output Rapid Attenuation |
dB |
|
-6 |
|
Output rapid down 6dB and recover |
|
| Output Ports Uniformity |
dB |
|
|
0.7 |
|
|
| Output Power Stability |
dB |
|
|
0.3 |
|
|
| Isolation between CATV and OLT |
dB |
40 |
|
|
|
|
| Switching Time of Optical Switch |
ms |
|
|
8.0 |
Optional |
|
| Insertion Loss of Optical Switch |
dB |
|
|
0.8 |
Optional |
|
| Noise Figure |
dB |
|
|
6.0 |
Pin：0dBm |
|
| PDL |
dB |
|
|
0.3 |
|
|
| PDG |
dB |
|
|
0.4 |
|
|
| PMD |
ps |
|
|
0.3 |
|
|
| Remnant Pump Power |
dBm |
|
|
-30 |
|
|
| Optical Return Loss |
dB |
50 |
|
|
|
|
| Fiber Connector |
|
SC/APC |
FC/APC、 LC/APC Optional |
|||
| General Index | RF Test |
dBμV |
78 |
|
82 |
Optional |
| Network Management Interface |
|
SNMP,WEB supported |
|
|||
| Power Supply |
V |
90 |
|
265 |
AC |
|
|
-72 |
|
-36 |
DC |
|||
| Power Consumption |
W |
|
|
100 |
Dual PS,1+1 standby,40dBm |
|
| Operating Temp |
℃ |
-5 |
|
+65 |
|
|
| Storage Temp |
℃ |
-40 |
|
+85 |
|
|
| Operating Relative Humidity |
% |
5 |
|
95 |
|
|
| Dimension |
mm |
370×483×88 |
D、W、H |
|||
| Weight |
Kg |
7.5 |
||||
|
Optical Power Coversion |
||||||||||||||||
|
mW |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
|
dBm |
0.0 |
3.0 |
4.8 |
6.0 |
7.0 |
7.8 |
8.5 |
9.0 |
9.5 |
10.0 |
10.4 |
10.8 |
11.1 |
11.5 |
11.8 |
12.0 |
|
mW |
17 |
18 |
19 |
20 |
21 |
22 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
160 |
200 |
|
dBm |
12.3 |
12.5 |
12.8 |
13.0 |
13.2 |
13.4 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
|
mW |
250 |
320 |
400 |
500 |
640 |
800 |
1000 |
1280 |
1600 |
2000 |
2560 |
3200 |
4000 |
|
|
|
|
dBm |
24 |
25 |
26 |
27 |
28 |
29 |
30 |
31 |
32 |
33 |
34 |
35 |
36 |
|
|
|
