4 U Rack Mount 144 Core Fiber Optical Distribution Frame (ODF)
Model Number: ODF-F-144F
Brand: Softel
MOQ: 10
Customized Shape and Structure Design
Pull-out Sliding Splice Fiber Modules
Available for SC/ST/LC Adapter Plates
01
Product Description
Highlight
Pull-out design enhances flexibility. You can order an empty customized fiber enclosure from SOFTEL.
Alternatively, your order can arrive in one box, with your adapter plates & adapters, and splice trays are already installed just as you require.
Functional Features:
· Standard 19” Size.
· Material: 1.2mm cold-rolled metal with excellent static painting.
· Splice tray can be superimposed, increasing the amount of optical fiber.
· Stackable and adjustable fiber rings simplify cable management.
· Patch cord bend radius guides minimize macro bending.
· Large capacity, suitable for data center and area cabling management.
· Transparent panel design, beautiful appearance.
· Enough space for fiber accessing and splicing.
| 4 U Rack Mount 144 Core Fiber Optical Distribution Frame (ODF) | ||||
| Description | Maximum Capacity | Part No. | ||
| Adapter Plates Adapter(SC/LC/FC/ST) | Adapter Plates | Splice Tray | ||
| 4U Empty Box | 144/288/144/144 | 12 | 12 | ODF-F-144 |
| PACKING INFORMATION | |
| Description | Fiber Optic 144 Core ODF |
| Product Dimension | 439*452.5*4U |
| Packing Dimension | 490*560*240 |
| Master Carton Dimension | 560*490*240 |
| Master Carton Capacity | 1pcs |

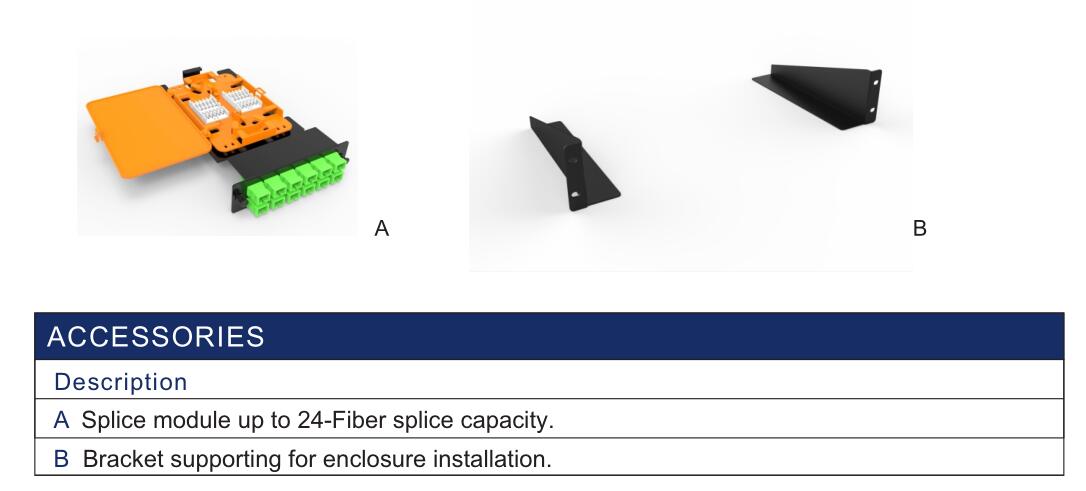

| Other Accessories | ||||
| 1 | Cable Hold Ring | 10 PCS | ||
| 2 | 5mm*150mm | Cable Tie | 12 PCS | |
| 3 | Φ5.0mm*0.5mm | Plastic Tube | 4 Meter | 1M*4PCS |
| 4 | Φ25-Φ38 | Hoop | 2 PCS | |
| 5 | 10mm | Velcro | 0.72 Meter | 0.18M*4PCS |
| 6 | KG-020 | Cable Protecting Sleeve | 0.5 Meter | 125mm*4PCS |
| 7 | M5*17 | Crown screw | 8 PCS | |
| 8 | M5 | Captive Nuts | 8 PCS | |
| 9 | 1-144 | Tag | 1 PCS | |
| 10 | 6.4 | Lock Catch | 6 PCS | |
| 11 | CR12D4 | Wrench | 1 PCS | |
| 12 | 180mm*300mm*0.1mm | Flat Bag | 1 PCS | |
| 13 | 200mm*230mm*0.15mm | Zip Lock Bag | 1 PCS | |
| 14 | 80mm*120mm*0.12mm | ip Lock Bag | 1 PCS | |
| 15 | 50mm*60mm*0.12mm | Zip Lock Bag | 1 PCS | |
| 16 | CR12D4 | Sticker | 1 PCS | |
ODF-F Rack Mount 144 Core Fiber Optical Distribution Frame Data Sheet.pdf
