4GE+1*POTS+CATV+WiFi5 Dual Band 2.4G&5G XPON ONU ONT
Model Number: ONT-4GE-V-RFDW
Brand: Softel
MOQ: 1
Support the OAM/OMCI Protocol
Remote Control CATV(with AGC) ON/OFF
Realtek Chipset High-Performance Solution
01
Product Description
Summary and Features

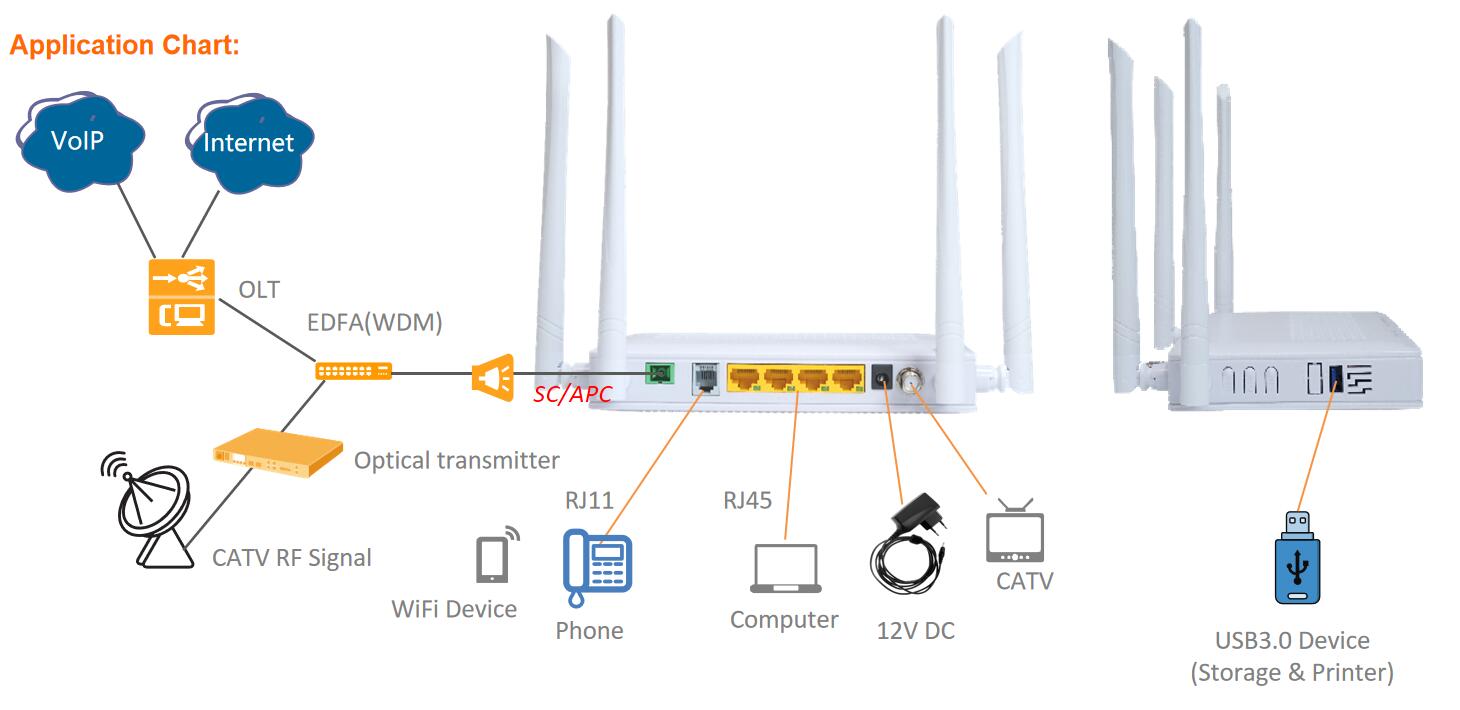

ONT-4GE-V-RFDW (4GE+1POTS+WiFi 5+USB3.0+CATV XPON HGU ONT) is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.
The ONT is based on high-performance chip solutions, supports XPON dual-mode technology (EPON and GPON), and also supports IEEE802.11b/g/n/ac WiFi 5 technology and other Layer 2/Layer 3 functions, providing data service for carrier-grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the SOFTEL OLT.
The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It conforms to a series of international technical standards such as IEEE802.3ah and ITU-T G.984.
The internet-connected world is rapidly evolving and it is important to have flexible solutions that can adapt to changing needs. That's why Realtek chipsets offer IPv4/IPv6 dual stack support, ensuring compatibility with existing and future Internet Protocol standards. The chipset also features integrated OAM/OMCI remote configuration and maintenance for remote management. Rich QinQ VLAN function and IGMP snooping multicast function will help you to ensure your network is unimpeded. Also, you can control your CATV system from a distance, which is helpful for families or individuals who want to turn their CATV on and off remotely.
| ONT-4GE-V-RFDW 4GE+1*POTS+CATV+WiFi5 Dual Band 2.4G&5G XPON ONU | |
| Hardware Parameter | |
| Dimension | 178mm×120mm×30mm(L×W×H) |
| Net Weight | 0.42Kg |
| Operating Condition | Operating temp: 0 ~ +55°C |
| Operating humidity:10 ~ 90%(non-condensed) | |
| Storing Condition | Storing temp: -30 ~ +70°C |
| Storing humidity: 10 ~ 90% (non-condensed) | |
| Power Adapter | DC12V,1.5A, external AC-DC Power Adaptor |
| Power Supply | ≤12W |
| Interface | 4GE+1POTS+WiFi 5+USB 3.0+CATV |
| Indicators | POWER, LOS, PON, LAN1～4, 2.4G, 5.0G, USB0, USB1, PHONE |
| Interface Features | |
| PON Interface | 1XPON port(EPON PX20+ & GPON Class B+) |
| SC single mode, SC/APC connector | |
| TX optical power: 0～+4dBm | |
| RX sensitivity: -27dBm | |
| Overload optical power: -3dBm(EPON) or -8dBm(GPON) | |
| Transmission distance: 20KM | |
| Wavelength: TX 1310nm, RX1490nm | |
| Optical Interface | SC/APC connector |
| User Interface | 4*GE, Auto-negotiation, RJ45 ports |
| 1 POTS RJ11 Connector | |
| USB Interface | 1*USB3.0, for Shared Storage/Printer |
| WLAN Interface | Compliant with IEEE802.11b/g/n/ac |
| WiFi:2.4GHz 2×2, 5.8GHz 2×2, 5dBi antenna, rate up to 1.167Gbp, Multiple SSID | |
| TX power: 11n–22dBm/11ac–24dBm | |
| CATV Interface | Receiving optical power : +2 ~ -18dBm |
| Optical reflection loss: ≥45dB | |
| Optical receiving wavelength: 1550±10nm | |
| RF frequency range: 47~1000MHz, RF output impedance: 75Ω | |
| RF output level and AGC range: | |
| 83dbuv@0~-10dBm / 81dbuv@-1~-11dBm / 79dbuv@-2~-12dBm /77dbuv@-3~-13dBm / 75dbuv@-4~-14dBm / 73dbuv@-5~-15dBm | |
| MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) | |
| Functional Features | |
| Management | OAM/OMCI,Telnet,WEB,TR069 |
| Support full management of HGU functions by SOFTEL OLT | |
| Mode | Support bridge, router & bridge/router mixed mode |
| Data Service Functions | • Full speed non-blocking switching |
| • 2K MAC address table | |
| • 64 full range VLAN ID | |
| • Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc | |
| • Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc | |
| • Support auto polarity detection of Ethernet ports (AUTO MDIX) | |
| • Integrated IEEE802.1p QoS with four level priority queues | |
| • Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy | |
| Wireless | Integrated 802.11b/g/n/ac |
| • Authentication: WEP/WAP-PSK(TKIP) /WAP2-PSK(AES) | |
| • Modulation type: DSSS, CCK and OFDM | |
| • Encoding scheme: BPSK, QPSK, 16QAM and 64QAM | |
| VoIP | SIP and IMS SIP |
| G.711a/G.711u/G.722/G.729 Codec | |
| Echo cancellation,VAD/CNG, DTMF | |
| T.30/T.38 FAX | |
| Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference | |
| Line testing according to GR-909 | |
| L3 | Support NAT, Firewall |
| Support IPv4/IPv6 dual stack | |
| Other Function | Integrated OAM/OMCI remote configuration and maintenance function |
| Support rich QinQ VLAN functions and IGMP snooping multicast features | |
