4 Port GE HGU AX3000 WiFi 6 XPON ONU with VOIP
Model Number: ONT-4GE-VUW630
Brand: Softel
MOQ: 1
Next-Gen Gigabit WiFi6
Support 2.4G and 5G Hz dual band WIFI
Support docking compatibility with various OLT
01
Product Description
Brief Introduction

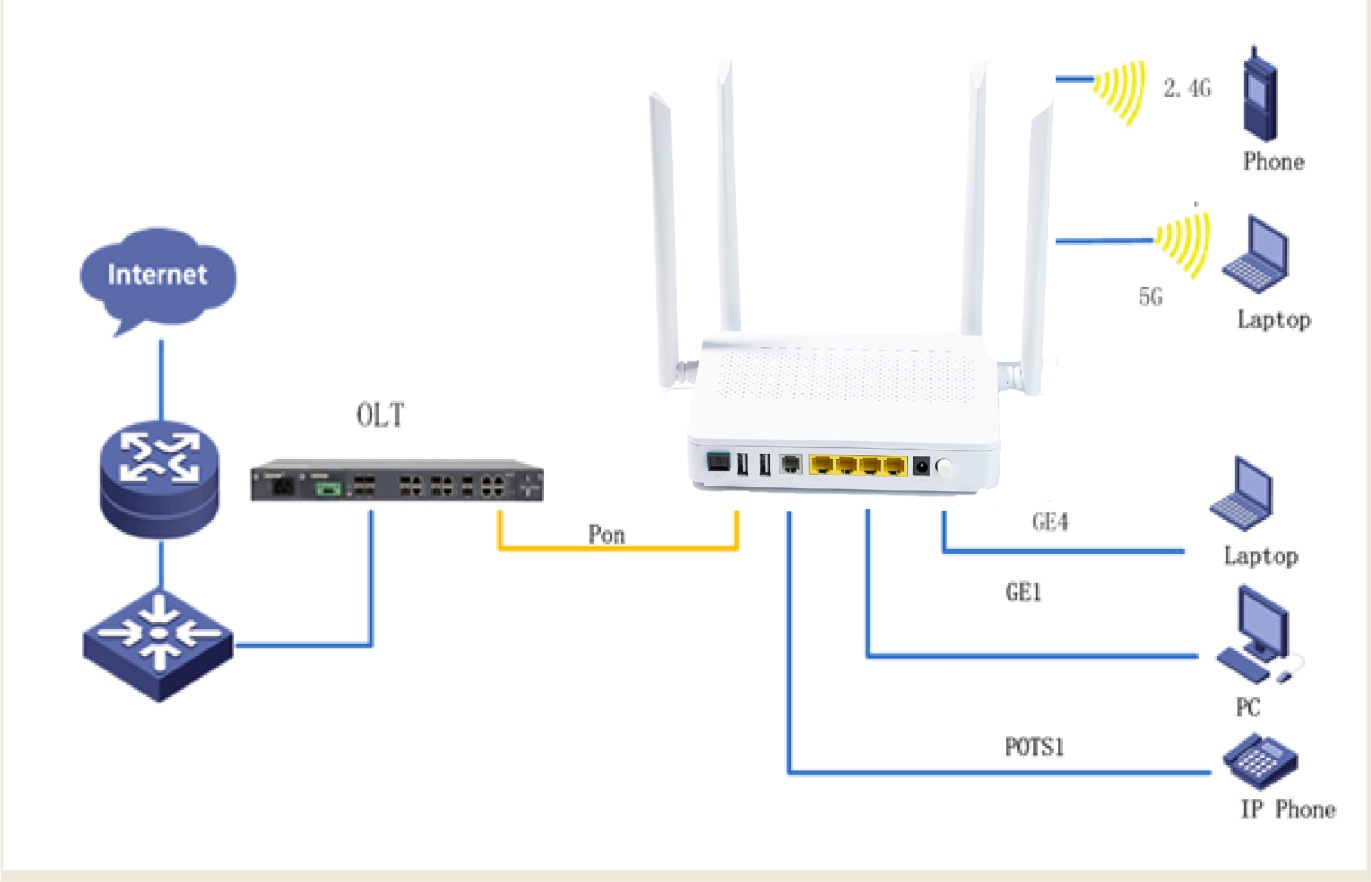

ONT-4GE-VUW630 is launched to be oriented to multi-service integration network as an optical network unit device, which belongs to XPON HGU terminal for FTTH/O scenario. It configures four 10/100/1000Mbps ports,WiFi6(2.4G+5G) port, one POTS port that providing with high-speed data services.
Highlights:
-Support docking compatibility with OLT of various manufacturers
-Support automatically adapt to the EPON or GPON mode used by the peer OLT
-Support 2.4G and 5G Hz dual band WIFI
-Support multiple WIFI SSID
-Support EasyMesh WIFI function
-Support WIFI WPS function
-Support multiple wan configuration
-Support WAN PPPoE/DHCP/Static IP/Bridge mode.
-Support fast transmission of hardware NAT
-Support OFDMA, MU-MIMO,1024-QAM
Features:
-Compliant with IEEE 802.3ah(EPON) & ITU-T G.984.x(GPON) standard
-Compliance with IEEE802.11b/g/n/ax 2.4G & IEEE802.11a/n/ac/ax 5G WIFI standard
-Support IPV4 & IPV6 Management and transmission
-Support TR-069 remote configuration and maintenance
-Support Layer 3 gateway with hardware NAT
-Support Multiple WAN with Route/Bridge mode
-Support Layer 2 802.1Q VLAN, 802.1P QoS, ACL etc
-Support IGMP V2 and MLD proxy/ snooping
-Support DDNS, ALG, DMZ, Firewall and UPNP service
-Support POTS interface for VOIP service
-Support bi-directional FEC
| ONT-4GE-VUW630 4GE+VOIP+WiFi6 XPON HGU ONT | |
|
Hardware Specifications |
|

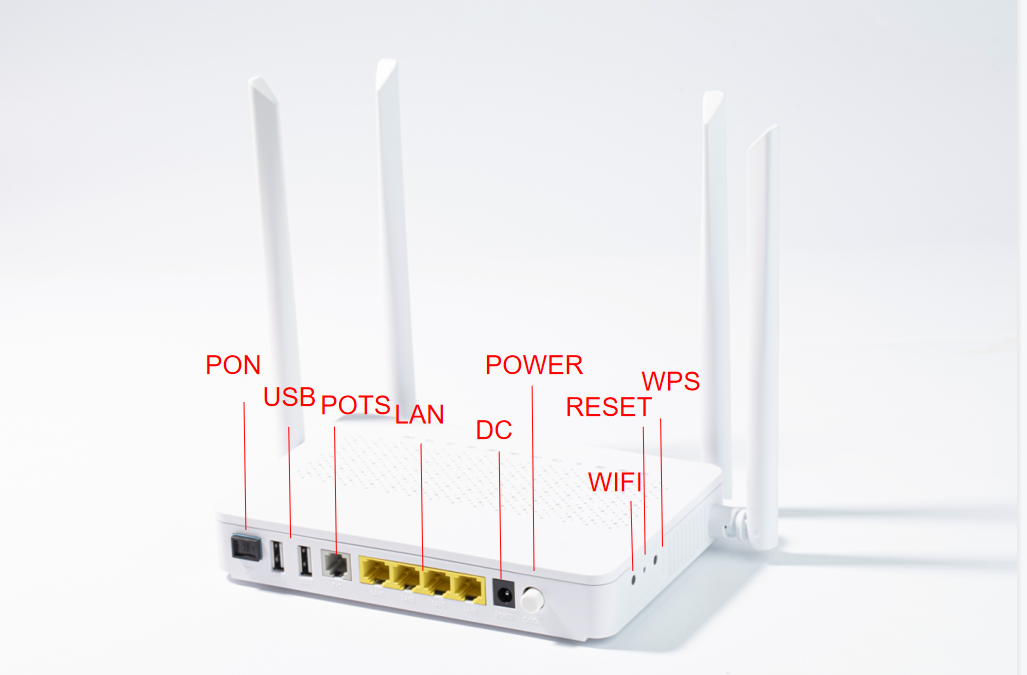

| Interface | 1* G/EPON+4*GE+2.4G/5G WLAN+1*FXS |
| Power adapter input | 100V-240V AC, 50Hz-60Hz |
| Power Supply | DC 12V/1.5A |
| Indicator light | POWER/PON/LOS/LAN1/LAN2/LAN3/LAN4/FXS/2.4G/5G |
| Button | Power switch Button, Reset Button, WLAN Button, WPS Button |
| Power Consumption | <18W |
| Working temperature | -20℃～+50℃ |
| Environment humidity | 5% ~ 95% (non-condensing) |
| Dimension | 180mm x 122mm x 28mm (L×W×H Without antenna) |
| Net weight | 0.28Kg |
| PON Interface | |
| Interface Type | SC/UPC, CLASS B+ |
| Transmission distance | 0～20km |
| Working wavelength | Up 1310nm; Down 1490nm |
| RX Optical power sensitivity | -27dBm |
| Transmission rate | GPON: Up 1.244Gbps; Down 2.488Gbps EPON: Up 1.244Gbps; Down 1.244Gbps |
| Ethernet Interface | |
| Interface Type | 4* RJ45 |
| Interface Parameters | 10/100/1000BASE-T |
| Wireless | |
| Interface type | External 2*2T2R External antenna |
| Antenna gain | 5dBi |
| Interface maximum rate | 2.4G WLAN: 573.5Mbps 5G WLAN: 1201Mbps |
| Interface working mode | 2.4G WLAN: 802.11 b/g/n/ax 5G WLAN: 802.11 a/n/ac/ax |
| POTS Interface | |
| Interface type | FXS , RJ11 connectorS |
| Support G.711 codec | |
