High Performance 16*PON Ports GPON OLT with 4*10GE(SFP+)
Model Number: OLT-G16V
Brand: Softel
MOQ: 1
Open to any brands of ONT
Meet worldwide relevant GPON standards
Easy EMS/Web/Telnet/CLI management
01
Product Description

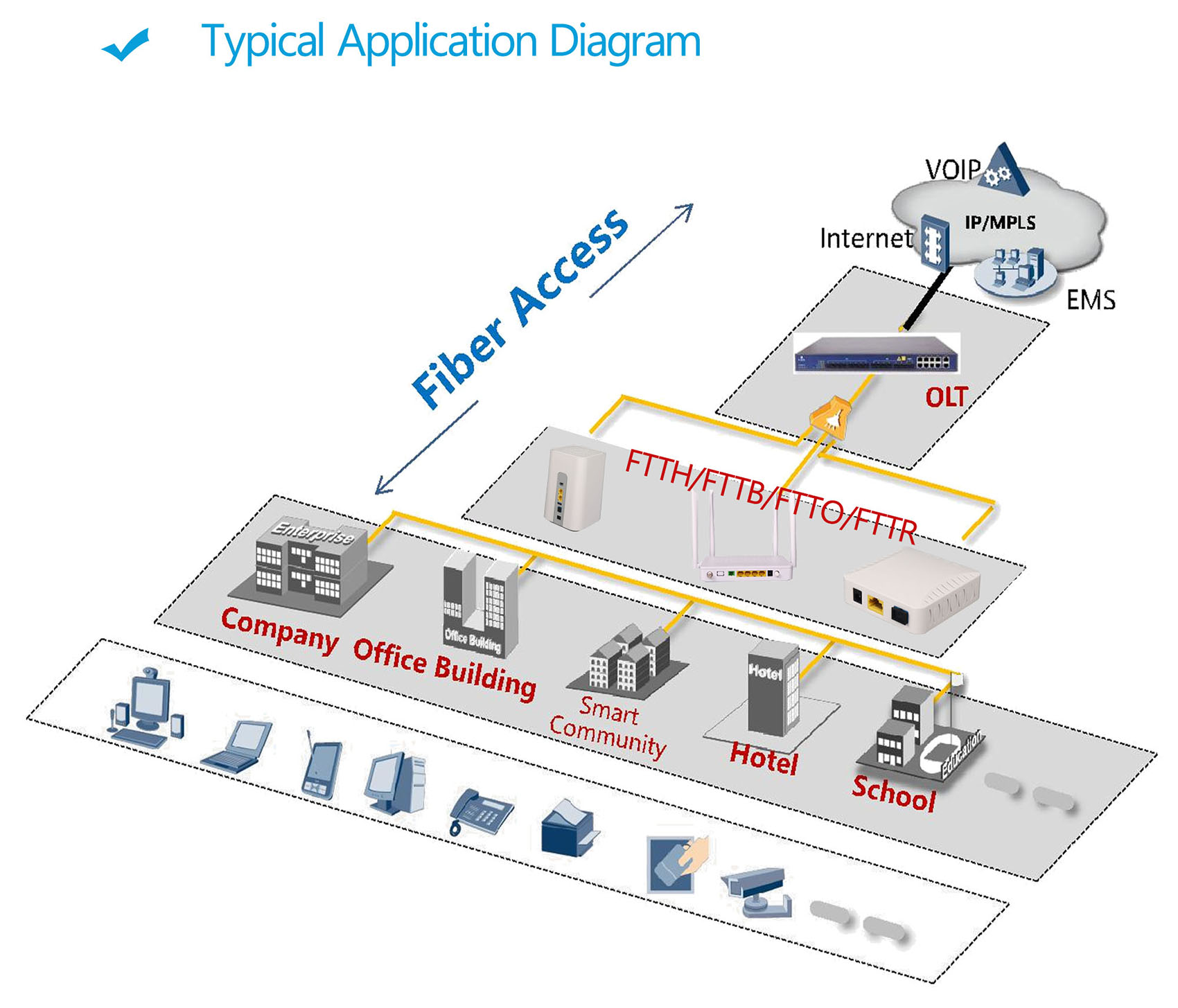

OLT-G16V series GPON OLT products are 1U height 19 inch rack mount chasse. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLTs can be used for "Triple-Play", VPN, IP Camera, Enterprise LAN and ICT applications.
| Product | User interface | Unlink interface |
| OLT-G4V | 4PON Port | 4*GE+2*GE(SFP)/10GE(SFP+) |
| OLT-G8V | 8PON Port | 8*GE+6*GE(SFP)+2*10GE(SFP+) |
| OLT-G16V | 16PON Port | 8*GE+4*GE(SFP)/10GE(SFP+) |
Features
● Sufficient Inventory and Fast Delivery.
● Meet ITU-T G984/6.988 standards.
● Meet worldwide relevant GPON standards.
● Easy EMS/Web/Telnet/CLI management.
● CLI command style similar to mainstream manufacturers.
● Open to any brands of ONT.
● 1RU height compact design Adopt mainstream chip scheme.
LED Indicator
| LED | ON | Blink | OFF |
| PWR | The device is powered up | — | The device is powered down |
| SYS | Device is starting | Device is running normal | Device is running abnormal |
| PON1～ PON16 | ONT is registered to the PON system | ONT is registering to the PON system | ONT is not registered to the PON system or ONT do not connect to OLT |
| SFP/SFP+ | The device is connected to the port | The device is ongoing data transmission | The device is not connected to the port |
| Ethernet (green-- ACT) | — | Port is sending or/and receiving data | — |
| Ethernet (yellow-- Link) | The device is connected to the port | — | The device is not connected to the port |
| PWR1/PW R2(G0) | Power module online and work normal. | — | Powr module offline or not work |
Software Functions

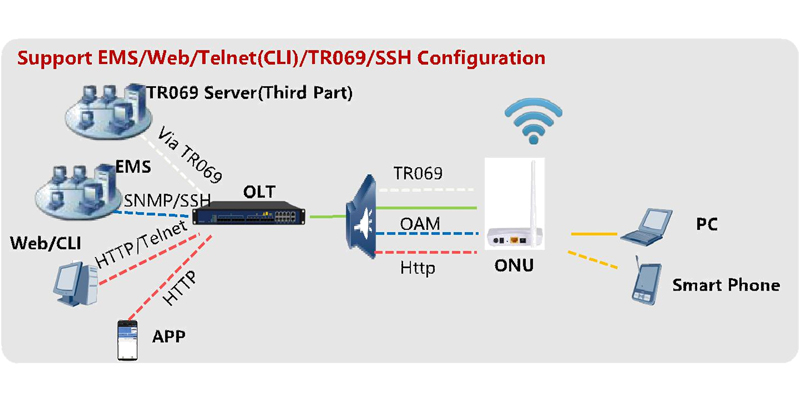

Management Mode
● SNMP, Telnet, CLI, WEB
Management Function
● Fan Group Control.
● Port Status monitoring and configuration management.
● Online ONT configuration and management.
● User management.
● Alarm management.
Layer 2 Switch
● 16K Mac address.
● Support 4096 VLANs.
● Support port VLAN and protocol VLAN.
● Support VLAN tag/Un-tag, VLAN transparent transmission.
● Support VLAN translation and QinQ.
● Support storm control based on port.
● Support port isolation.
● Support port rate limitation.
● Support 802.1D and 802.1W.
● Support static LACP.
● QoS based on port, VID, TOS, and MAC address.
● Access control list.
● IEEE802.x flow control.
● Port stability statistics and monitoring.
Multicast
● IGMP snooping.
● 256 IP Multicast Groups.
DHCP
● DHCP Server.
● DHCP Relay; DHCP snooping.
GPON Function
● Tcont DBA.
● Gemport traffic.
● In compliance with ITUT984.x standard.
● Up to 20KM transmission Distance.
● Support data encryption, multi-cast, port VLAN, separation, RSTP, etc.
● Support ONT auto-discovery/link detection/remote upgrade of software.
● Support VLAN division and user separation to avoid the broadcast storm.
● Support power-off alarm function, easy to link problem detection.
● Support broadcasting storm resistance function.
● Support port isolation between different ports.
● Support ACL and SNMP to configure data packet filter flexibly.
● Specialized design for system breakdown prevention to maintain a stable system.
● Support RSTP, IGMP Proxy.
Layer 3 Route
● ARP proxy.
● Static route.
● 1024 hardware Host Routes.
● 512 hardware Subnet Routes.

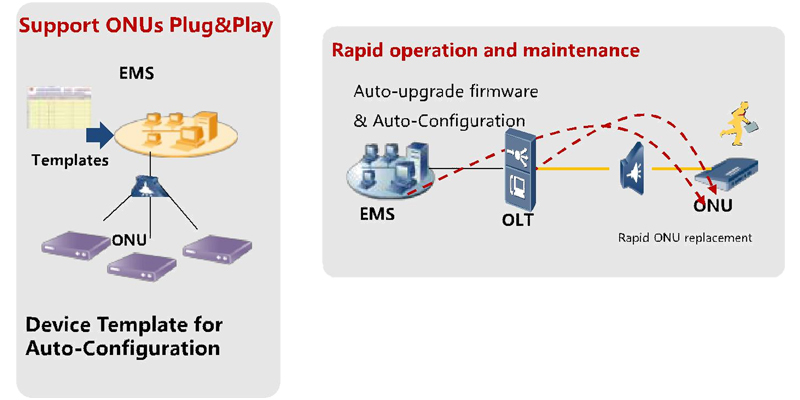

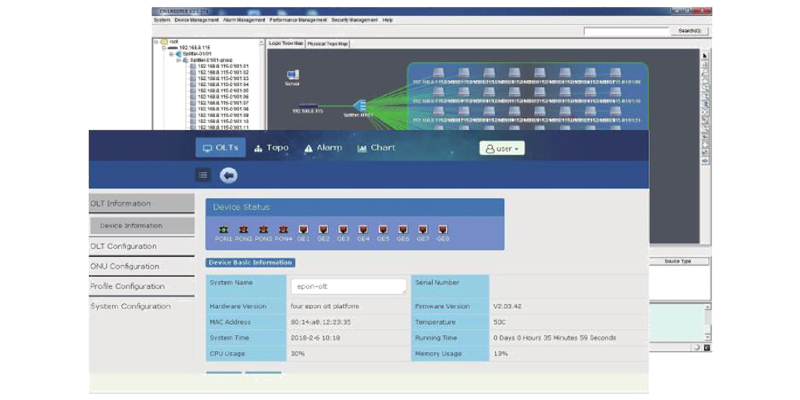

EMS Features
Support C/S & B/S architecture.
Support auto topology or modify manually.
Add Trap Server to detect ONT automatically.
EMS can add and configure ONT automatically.
Add ONT position information.
| License Management | ONT limit | Limit the number of ONT registration, 64-1024, step 64. When the number of ONT reach the max number permit, add new ONT to system will be refused. |
| Time limit | Limit system used time, 31days. Equipment trial license, after 31days of running time, all ONTs be set offline. | |
| PON MAC table | A MAC table of PON, including MAC address, VLAN id, PON id, ONT id, gemport id for easier services checking, troubleshooting. | |
| ONU Management | Profile | Including ONT, DBA, TRAFFIC, LINE, SERVICE, ALARM, PRIVATE profiles. All ONT features can be configured by profiles. |
| Auto learn | ONT automatically discovery, register, online. | |
| Auto configure | All features can be automatically configured by profiles when ONT auto online—plug and play. | |
| Auto upgrade | The ONT firmware can be auto upgraded. Download ONT firmware to OLT from web/tftp/ftp. | |
| Remote config | The powerful private OMCI protocol provides remote HGU configuration including WAN, WiFi, POTS, etc. | |
| Item | OLT-G16V | |
| Chassis | Rack | 1U 19 inch standard box |
| 1G/10G Uplink Port | QTY | 12 |
| Copper 10/100/1000Mauto-negotiation | 8 | |
| SFP 1GE | 4 | |
| SFP+ 10GE | ||
| GPON Port | QTY | 16 |
| Physical Interface | SFP Slot | |
| Connector Type | Class C+ | |
| Max splitting ratio | 1:128 | |
| Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port | |
| PON Port Specification(Cl ass C+ module) | Transmission Distance | 20KM |
| GPON Port Speed | Upstream 1.244G; Downstream 2.488G. | |
| Wavelength | TX 1490nm, RX 1310nm | |
| Connector | SC/UPC | |
| Fiber Type | 9/125μm SMF | |
| TX Power | +3~+7dBm | |
| Rx Sensitivity | -30dBm | |
| Saturation OpticalPower | -12dBm | |
| Dimension(L*W*H)(mm) | 442*320*43.6 | |
| Weight | 4.5kg | |
| AC Power Supply | AC:100～240V, 47/63Hz | |
| DC Power Supply(DC:-48V) | √ | |
| Double Power Module Hot Backup | √ | |
| Power Consumption | 85W | |
| Operating Environment | WorkingTemperature | 0～+50℃ |
| StorageTemperature | -40～+85℃ | |
| Relative Humidity | 5～90%(non-conditioning) | |
