1. Understanding the Role of a GPON OLT in FTTH Networks
GPON, or Gigabit-capable Passive Optical Network, is a fiber access technology standardized by the International Telecommunication Union (ITU-T) in the G.984 series. It supports point-to-multipoint optical access, allowing one OLT port to serve multiple subscribers through passive optical splitters.
According to ITU-T Recommendation G.984.1, GPON supports nominal downstream line rates of approximately 2.4 Gbit/s, with upstream configurations of approximately 1.2 Gbit/s or 2.4 Gbit/s. These are shared PON-line rates, not guaranteed speeds for each subscriber.
In a typical FTTH network, the OLT is installed at the service provider's central office or local equipment room. Fiber cables connect the OLT to passive splitters, which distribute optical signals to customer premises. Each subscriber's ONU or ONT provides the interface between the optical network and local devices.
The OLT also manages network access and supports functions such as traffic scheduling, bandwidth allocation, and service configuration, depending on the equipment model.
For ISPs, the practical value of a GPON OLT lies in its ability to connect multiple subscribers through a shared fiber infrastructure while providing centralized network management.
2. How to Choose the Right GPON OLT Port Capacity
One of the first decisions in FTTH planning is how many PON ports the network requires.
Smaller ISPs or regional operators may begin with a compact OLT for a limited service area. Larger deployments may require multi-port equipment or a chassis-based platform that can accommodate additional service cards.
When comparing models, buyers should consider three factors.
Current subscriber demand: Estimate the number of premises to be connected in the initial deployment. Avoid selecting equipment solely by its maximum advertised subscriber count.
Expected expansion: Consider how many additional subscribers may be added over the next few years. A system with suitable spare ports or expansion options can make future growth easier.
Actual bandwidth requirements: The number of users sharing a PON port affects the available bandwidth per subscriber. Busy residential areas, business customers, and applications with heavy upstream traffic may require different network designs.

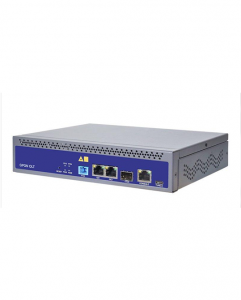

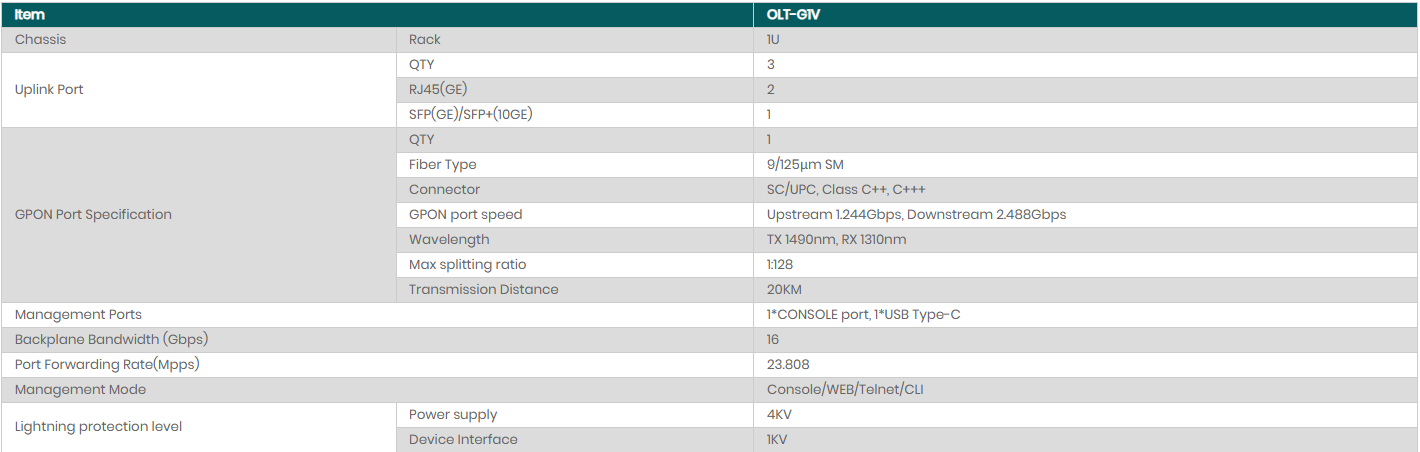

For example, Softel lists compact GPON OLT equipment as well as larger multi-port platforms. Its OLT-G1V product specification identifies one GPON port and a 10GE-capable SFP+ uplink interface, while the OLT-X7 series supports a chassis-based architecture with multiple service cards.
These products serve different deployment requirements. The appropriate choice depends on subscriber density, available uplink capacity, network topology, and planned growth.
3. Why Uplink Capacity Matters as Much as PON Ports
A GPON OLT may have sufficient PON ports for a project but still require careful evaluation of its uplink configuration.
! When evaluating an OLT, buyers should check:
- ✔ The number and type of Ethernet uplink interfaces.
- ✔ Whether the equipment supports the required 1GE, 10GE, or higher-speed connections.
- ✔ Available link aggregation and redundancy options.
- ✔ Compatibility with upstream switches and routers.
- ✔ Traffic management, VLAN, and Quality of Service (QoS) functions.
Uplink interfaces carry aggregated traffic between the access network and the provider's upstream network. If their capacity is poorly matched to the expected traffic load, congestion may occur even when the optical access links are operating normally.
The correct configuration depends on actual traffic patterns and oversubscription planning. A higher-speed uplink does not automatically guarantee better subscriber performance if other parts of the network remain constrained.
4. Optical Budget and Network Compatibility
Optical performance is another essential part of OLT selection.
In a passive optical network, the optical signal travels through fiber cables, connectors, splices, and splitters before reaching the subscriber. Each component contributes to the total optical loss. The optical budget must account for this loss while keeping received signal levels within the operating limits of the selected OLT and ONU or ONT.
A higher splitting ratio can serve more subscribers from one PON port, but it also increases splitting loss. Similarly, longer fiber routes and additional connection points can reduce the remaining optical margin.
Before deployment, network planners should calculate the expected link loss and verify the supported optical modules, connector types, transmission distance, and receiver sensitivity.
Compatibility also matters. GPON, EPON, XG-PON, and XGS-PON are different access technologies and should not be treated as interchangeable simply because their equipment uses similar physical connectors.
ITU-T defines GPON in the G.984 series and XGS-PON in the G.9807.1 Recommendation. Operators upgrading an existing network should confirm the required standards, wavelength arrangements, optical coexistence design, and endpoint compatibility before selecting equipment.
5. Planning for Future Network Upgrades
Subscriber demand changes over time. A network that meets today's requirements may need more capacity as households adopt higher-bandwidth services or as operators expand into business connectivity.
When choosing an OLT, consider whether the platform supports a practical migration path. This could involve adding service cards, increasing uplink capacity, deploying newer PON technology, or operating compatible systems alongside existing infrastructure.
Softel provides EPON, GPON, and XG(S)-PON OLT products, allowing network buyers to compare equipment across different access technologies. Its portfolio also includes ONU/ONT devices, Wi-Fi routers, and other network equipment for access-network deployments.
For operators purchasing equipment from multiple suppliers, it is important to confirm interoperability, management requirements, software support, and the availability of technical documentation before committing to a migration plan.
6. What Should Buyers Look for in a GPON OLT Manufacturer?
Product specifications are only one part of the purchasing decision. Buyers should also evaluate the supplier's ability to support deployment and maintenance.
Check whether the manufacturer provides detailed datasheets, configuration guidance, firmware information, and technical assistance. Confirm the warranty terms and available support arrangements for the specific product being purchased.
Softel, established in 2005, supplies optical communication and digital TV equipment, including OLT, ONU, HFC, Wi-Fi router, and switch products.
Pro Tip: For project-based procurement, buyers should provide the supplier with the expected subscriber count, PON port requirements, uplink configuration, optical link budget, and existing network equipment. This makes it easier to identify a suitable model.
Conclusion
Selecting a GPON OLT is a network planning decision, not simply a hardware comparison. Port capacity, uplink bandwidth, optical budget, endpoint compatibility, and future expansion all influence how effectively an FTTH network can operate.
With its range of EPON, GPON, and XG(S)-PON OLT products, Softel provides options for different fiber access network configurations.
