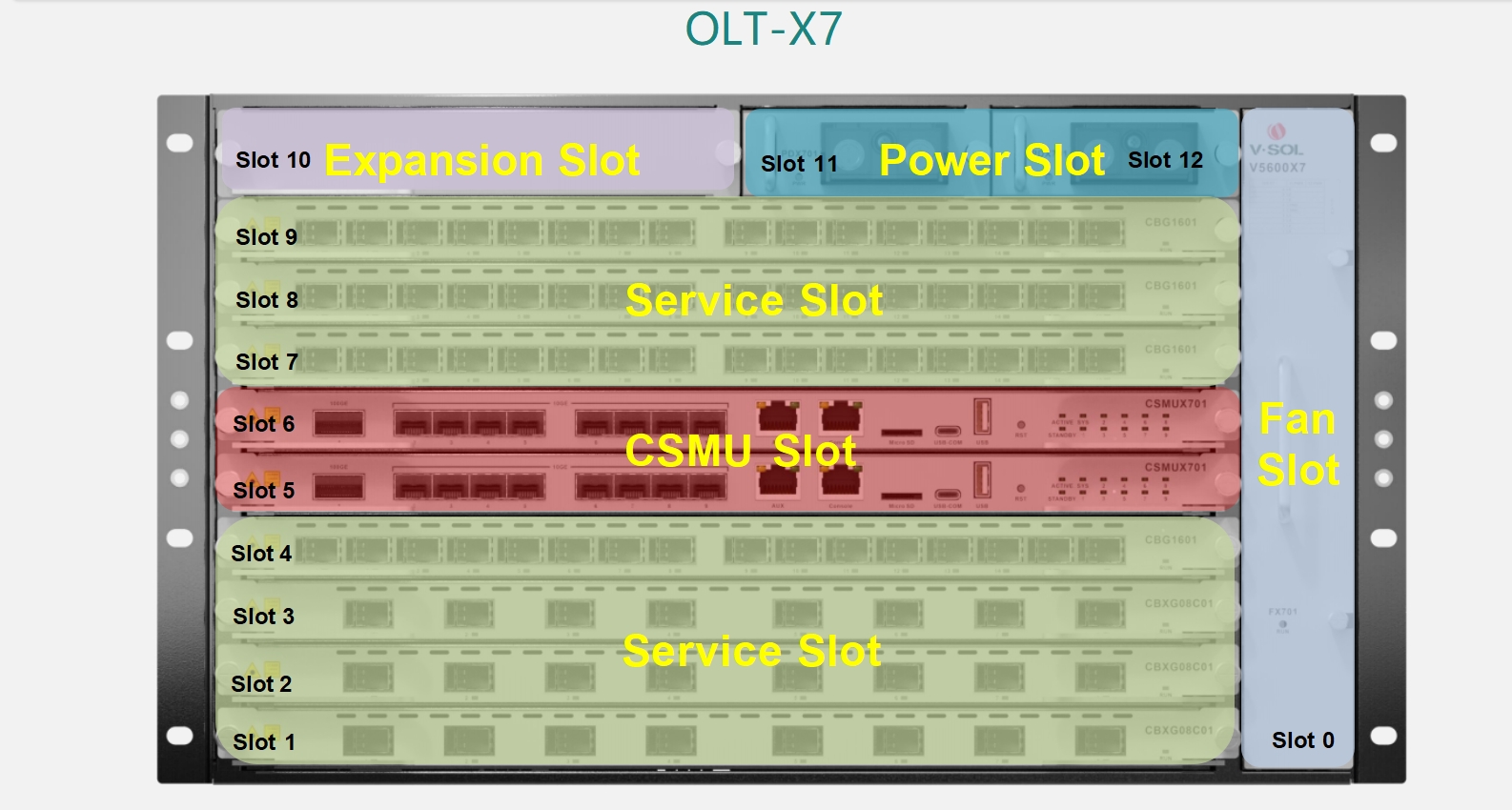

OLT-X7 Series GPON XG-PON XGS-PON Combo PON Chassis OLT

Brief Summary

SOFTEL OLT-X7 series are self-developed high-end chassis OLTs,include the two models, which adopt high performance chipset and complies with ITU-T interational standards.OLT-X7 series provide multiple access methods such as GPON，XG-PON, XGS-PON and Combo PON, supports multiple network solutions such as FTTH, FTTB, FTTC, FTTD and FTTM,realizes high-bandwidth and high-speed data transmission, and meets the needs of large-scale deployment.The products have comprehensive management and monitoring functions, simplifies the operation  and maintenance process, andprovide rich business functions and scalablity. it provides operators with excellent user experience and high-quality services, and also meets the challenges faced by operators in the development of "wider, faster and smarter" gigabit uitra-wide networks.

Management Function
• Telnet,CLI,WEB,SSH v2
• Fan Group Control
• Port Status monitoring and configuration management
• Online ONTconfiguration and management
• User management
• Alarm management

PON Function
• T-CONT DBA
• x-GEM traffic
• In compliant with ITU-T G.9807(XGS-PON) , ITU-T G.987(XG-PON) and ITU- T984.x
• Up to 20KM transmission Distance
• Support data encryption, multi-cast, port VLAN, etc
• Support ONT auto- discovery/link detection/remote upgrade of software
• Support VLAN division and user separation to avoid broadcast storm
• Support power-off alarm function, easy for link problem detection
• Support broadcasting storm resistance function
• Support port isolation between different ports
• Support ACL and SNMP to configure data packet filter flexibly
• Specialized design for system breakdown prevention to maintain stable system
• Support STP,RSTP,MSTP

Layer2 Switch
• 32K Mac address
• Support 4096 VLANs
• Support port VLAN
• Support VLAN translation and QinQ
• Support storm control based on port
• Support port isolation
• Support port rate limitation
• Support 802.1D and 802.1W
• Support static LACP,Dynamic LACP
• QoS based on port, VID, TOS and MAC address
• Access control list
• IEEE802.x flowcontrol
• Port stability statistic and monitoring
• Specialized design for system breakdown prevention to maintain stable system
• Support STP,RSTP,MSTP

Layer 3 Route
• ARP proxy
• Hardware Host Routes: IPv4 32K, IPv6 16K
• Hardware Subnet Routes: IPv4 24K, IPv6 12K
• Support Radius,Tacacs+
• Support IP source guard
• Support static route ,dynamic route RIP v1/v2,RIPng and OSPF v2/v3

IPv6
• Support NDP
• Support IPv6 Ping,IPv6 Telnet,IPv6 routing
• Support ACL based on source IPv6 address, destination IPv6 address, L4 port, protocol type, etc

Multicast
• IGMP v1/v2, IGMP snooping/Proxy
• MLD v1 snooping/Proxy

DHCP
• DHCP server, DHCP relay,DHCP snooping
• DHCP option82

Security
• Support power backup

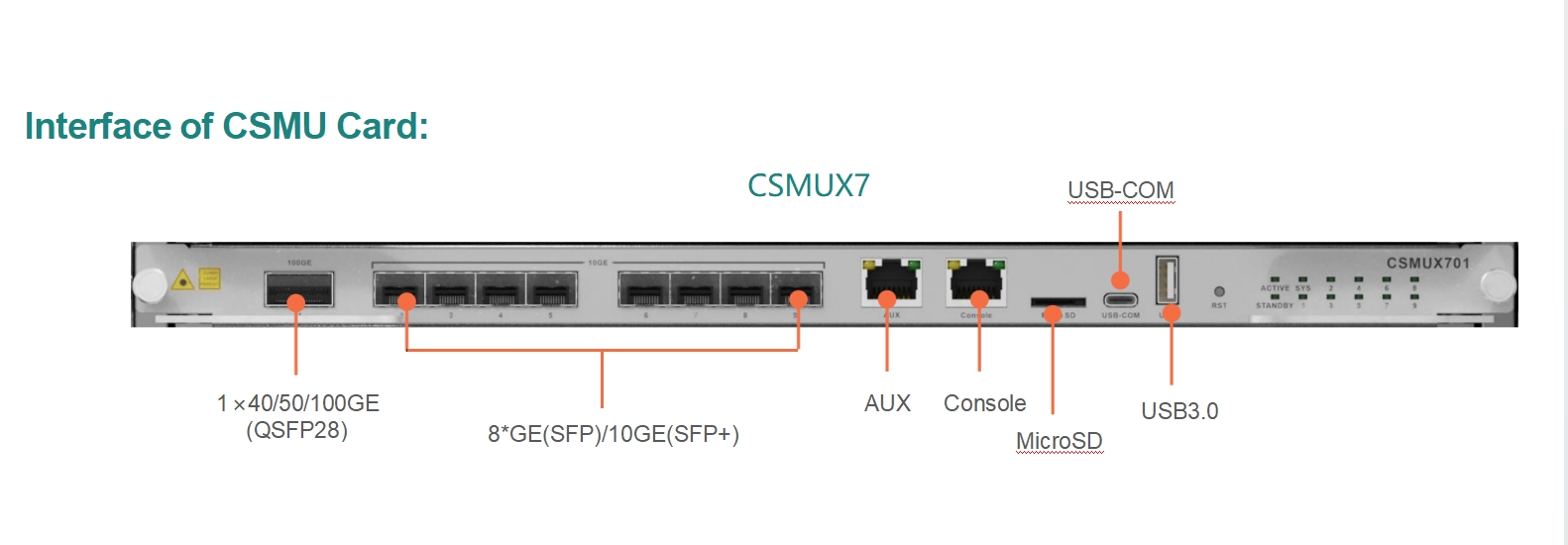

• Support CSM 1+1 redundancy
• Support Type B PON protection
• Support IEEE 802.1x, AAA, Radius and Tacas+
