ONT-2.5GE SC/UPC XPON 2.5GbE ONU
Model Number: ONT-2.5GE
Brand: Softel
MOQ: 1
XPON Dual Mode
High-Speed 2.5GbE LAN Port
Auto-access to EPON/GPON OLT
01
Product Description

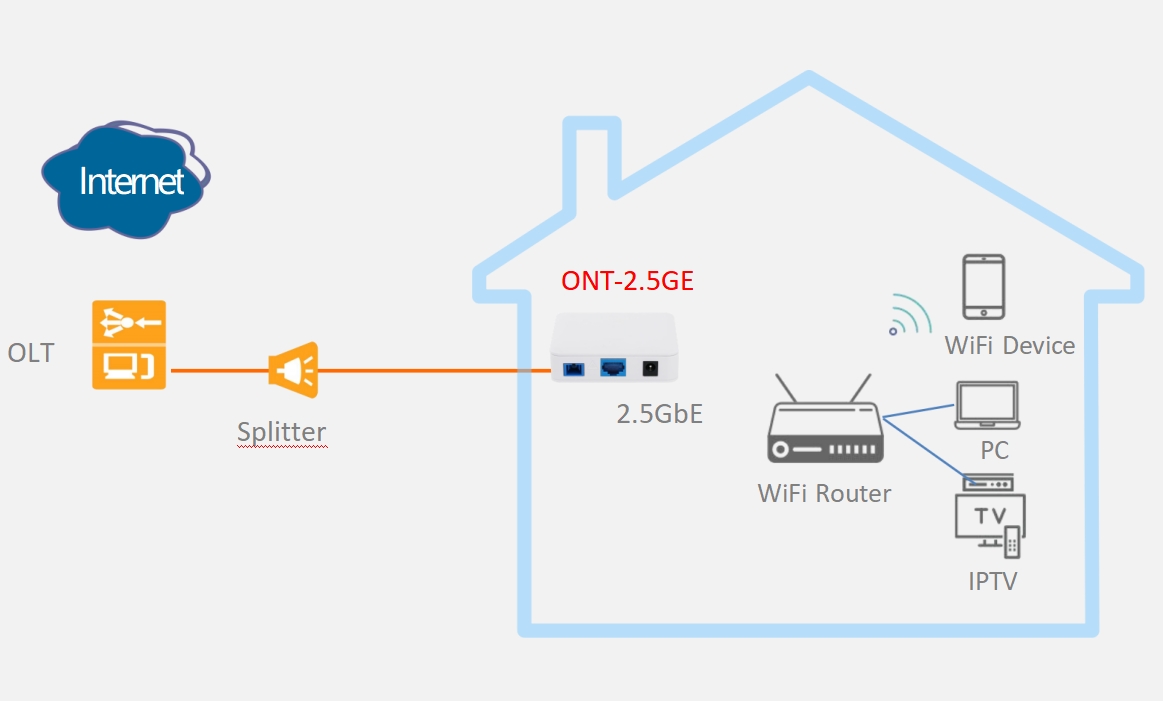

ONT-2.5GE( XPON 2.5GbE ONU ) is specially designed to meet the needs of telecom operators for FTTO (office), FTTD (desktop), FTTH (home), SOHO broadband access, video surveillance, etc. This ONU is based on a high-performance chip solution and has a 2.5GbE port, which can provide users with a high-speed network experience and truly realize Gigabit to the desktop.
The ONT has high reliability and can be applied to a wide temperature environment; and has a powerful firewall function, which is easy to manage and maintain. It can provide QoS guarantee for different services. The ONT complies with international technical standards such as IEEE802.3ah and ITU-T G.984.
| ONT-2.5GE SC/UPC XPON 2.5GbE ONU | |
| Hardware Parameter | |
| Dimension | 82mm×82mm×25mm(L×W×H) |
| Operating Condition | Operating temp: -10 ~ +55°C |
| Operating humidity: 5 ~ 95% (non-condensed) | |
| Storing Condition | Storing temp:-40 ~ +70°C |
| Storing humidity: 5 ~ 95% (non-condensed) | |
| Power Adapter | DC 12V, 0.5A, External AC-DC power adaptor |
| Power supply | ≤4W |
| Interfaces | 2.5GbE |
| Indicators | SYS, LINK/ACT, REG |
| Interface Parameter | |
| PON interface | 1 XPON port(EPON PX20+ & GPON Class B+) |
| SC single mode, SC/UPC connector | |
| TX optical power: 0～+4dBm | |
| RX sensitivity: -27dBm | |
| Overload optical power: -3dBm(EPON) or -8dBm(GPON) | |
| Transmission distance: 20KM | |
| Wavelength: TX 1310nm, RX1490nm | |
| LAN interface | 1*2.5GbE, Auto-negotiation RJ45 connectors |
| Button | Reset |
| Fuctional Data | |
| XPON Mode | Dual mode, Auto-access to EPON/GPON OLT |
| Uplink Mode | Bridging and Routing Mode |
| Abnormal protection | |
| Detecting Rogue ONU, Hardware Dying Gasp | |
| Firewall | DDOS, Filtering Based on ACL/MAC/URL |
| Product Feature |
|
| Basic | • Support MPCP discover®ister
• Support authentication Mac/Loid/Mac+Loid • Support Triple Churning • Support DBA bandwidth • Support auto-detecting, auto-configuration, and auto firmware upgrade • Support SN/Psw/Loid/Loid+Psw authentication |
| Alarm |
• Support Dying Gasp
• Support Port Loop Detect • Support Eth Port Los |
| LAN | • Support Port rate limiting
• Support Loop detection • Support Flow control • Support Storm control |
| VLAN | • Support VLAN tag mode
• Support VLAN transparent mode • Support VLAN trunk mode(max 8 vlans) • Support VLAN 1:1 translation mode(≤8 vlans) |
| Multicast | • Support IGMPv1/v2/Snooping
• Max Multicast vlan 8 • Max Multicast Group 64 |
| QOS | • Support 4 queues
• Support SP and WRR • Support 802. 1P |
| L3 | • Support IPv4/IPv6
• Support DHCP/PPPOE/Static IP • Support Static route • Support NAT |
| Management | • Support CTC OAM 2.0 and 2. 1
• Support ITUT984.x OMCI • Support WEB • Support TR069 • Support TELNET • Support CLI |
