xPON Dual Mode ONU 1GE+1FE+WIFI 2.4G
Model Number: ONT-2GF-W
Brand: Softel
MOQ: 1
EPON/GPON Dual Mode
Bridge And Route Adaptive Mode
ZTE Chipset, Compatible With ZTE, HUAWEI and FIBERHOME OLT
01
Product Description
ONT-2GF-W is a residential gateway device with routing functions for XPON ONU and LAN Switch for residential and SOHO users, which is in line with ITU-T G.984 and IEEE802.3ah.

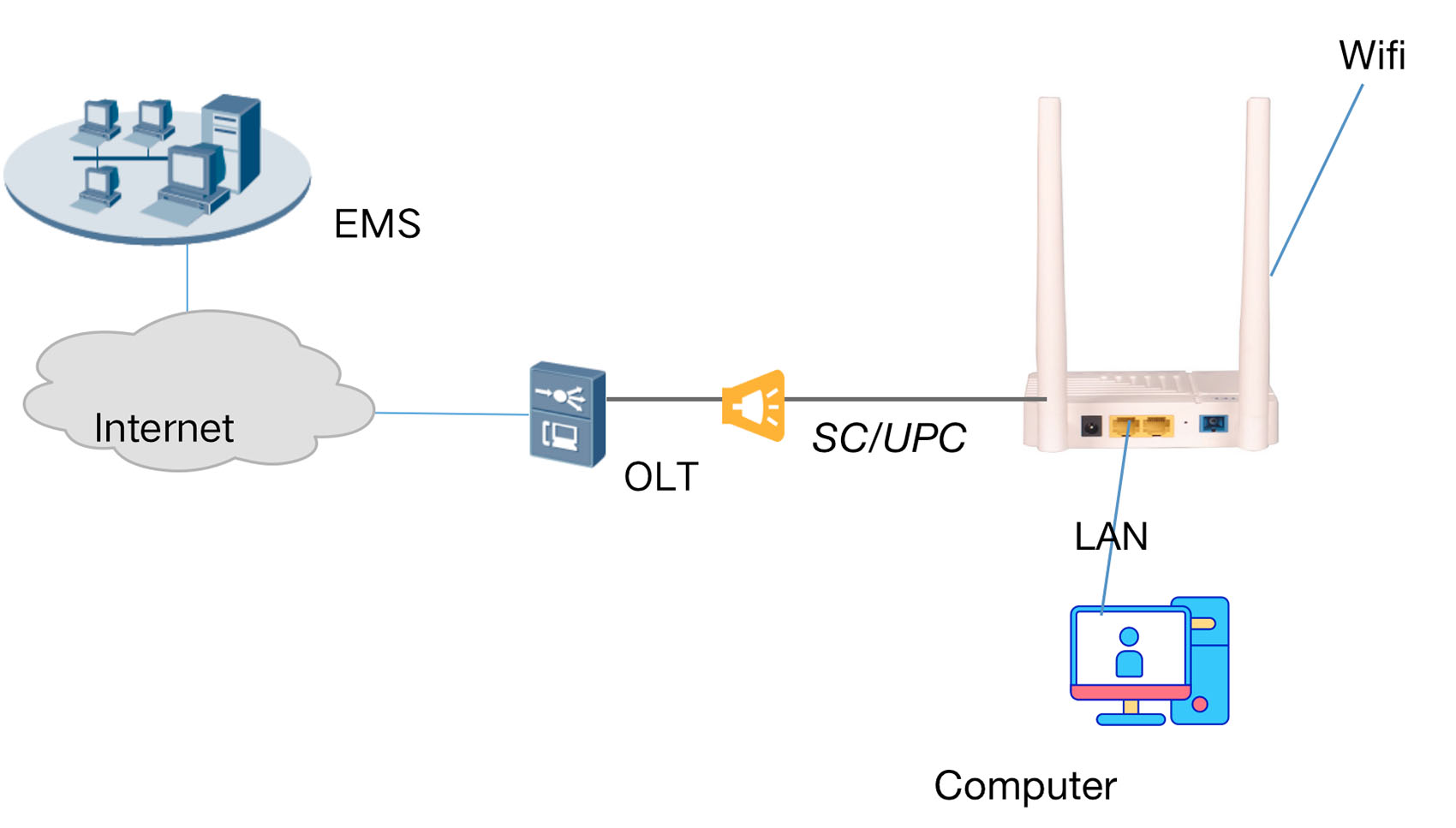

The uplink of ONT-2GF-W provides one PON interface, while the downlink provides two Ethernet and RF interface. It can realize optical access solutions such as FTTH (Fiber To The Home) and FTTB (Fiber To The Building). It fully integrates the reliability, maintainability and security design of carrier-grade equipment, and provides customers with the last kilometer of broadband access to residential and corporate customers.
Hardware
| PON Interface | Interface Type | SC/PC, CLASS B+ |
| Rate | Uplink: 1.25Gbps; Downlink: 2.5Gbps | |
| User-Side Interface | 1*10/100/1000BASE-T;1*10/100BASE-T;1*RF interface | |
| Size (Mm) | 167(L)×118(W)×30(H) | |
| Maximum Power Consumption | <8W | |
| Weight | 120g | |
| Operating Environment | Temperature: -10°C ~ 55°C | |
| Humidity: 5% ~ 95% （no condensation） | ||
| Power Supply | External Power Adapter 12V/1A | |
| Power Adapter Input | 100-240V AC, 50/60Hz | |
| Power Interface Size | metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm | |
| WLAN Module | External dual antenna, antenna gain 5db, antenna power 16~21dbm | |
| Support 2.4GHz, 300M transmission rate | ||
LED
|
State |
Color |
Descriptions | |
| PWR |
Solid |
Green |
Normal |
|
Off |
No power | ||
| PON |
Solid |
Green |
ONU is authorized |
|
Flash |
ONU is Registering | ||
|
Off |
ONU is not authorized | ||
| LOS |
Solid |
Red |
Abnormal |
|
Flash |
In diagnostic mode | ||
|
Off |
Normal | ||
| LAN 1 |
Solid |
Green |
Link UP |
|
Flash |
Active(Tx and/or Rx) | ||
|
Off |
Link down | ||
| LAN2 |
Solid |
Green |
Link UP |
|
Flash |
Active(Tx and/or Rx) | ||
|
Off |
Link down | ||
| WIFI |
Flash |
Green |
Normal |
|
Off |
Error/WLAN disable |
Software Characteristic(GPON)
| Standard Compliance | Comply with ITU-T G.984/G.988 Comply with IEEE802.11b/g/n Comply with China Telecom/China Unicom GPON Interoperability Standard |
| GPON | Support for the ONT registration mechanism |
| Support DBA | |
| Support FEC | |
| Support link encryption | |
| Supports the maximum effective transmission distance of 20 km | |
| Support long illuminating detection and optical power detection | |
| Multicast | IGMP V2 Proxy/Snooping |
| WLAN | Support WPA2-PSK/WPA-PSK encryption |
| Support client isolation | |
| Support for 4 * SSID | |
| Support for 802.11 BGN mode | |
| Support maximum rate of 300M | |
| Management & Maintenance | Support web management |
| Support CLI/Telnet management | |
| Support port loopback detection | |
| Compatibility | Support the connection with the business competitor’s OLT and its proprietary protocols, including Huawei, H3C, ZTE, BDCOM, RAISECOM, and so forth. |
Software Characteristic(EPON)
| Standard Compliance | Comply with IEE802.3ah EPON Comply with China Telecom/China Unicom EPON Interoperability Standard |
| EPON | Support for the ONT registration mechanism |
| Support DBA | |
| Support FEC | |
| Support link encryption | |
| Supports the maximum effective transmission distance of 20 km | |
| Support long illuminating detection and optical power detection | |
| Multicast | IGMP V2 Proxy/Snooping |
| WLAN | Support WPA2-PSK/WPA-PSK encryption |
| Support client isolation | |
| Support for 4 * SSID | |
| Support for 802.11 BGN mode | |
| Support maximum rate of 300M | |
| Management & Maintenance | Support web management |
| Support CLI/Telnet management | |
| Support port loopback detection | |
| Compatibility | Support the connection with the business competitor’s OLT and its proprietary protocols, including Huawei, H3C, ZTE, BDCOM, RAISECOM, and so forth. |
