XPON Dual Mode 8×GE(POE+)+2×2 WiFi5 2.4G/5GHz Dual Band POE ONU
Model Number: PONT-8GE-W5
Brand: Softel
MOQ: 1
Support xPON Dual Mode
8×POE, IEEE802.3at, Max 30W per Port
WiFi5, 2.4G/5GHz Dual Band, Internal Antenna
01
Product Description
Brief Intro and Features
PONT-8GE-W5 is an advanced broadband access device, which is specially designed to meet the needs of users for multi-service integration. The device is equipped with a high-performance chip solution, enabling users to enjoy IEEE 802.11b/g/n/ac WIFI technology and other Layer 2/Layer 3 functions, providing data services for carrier-grade FTTH applications.

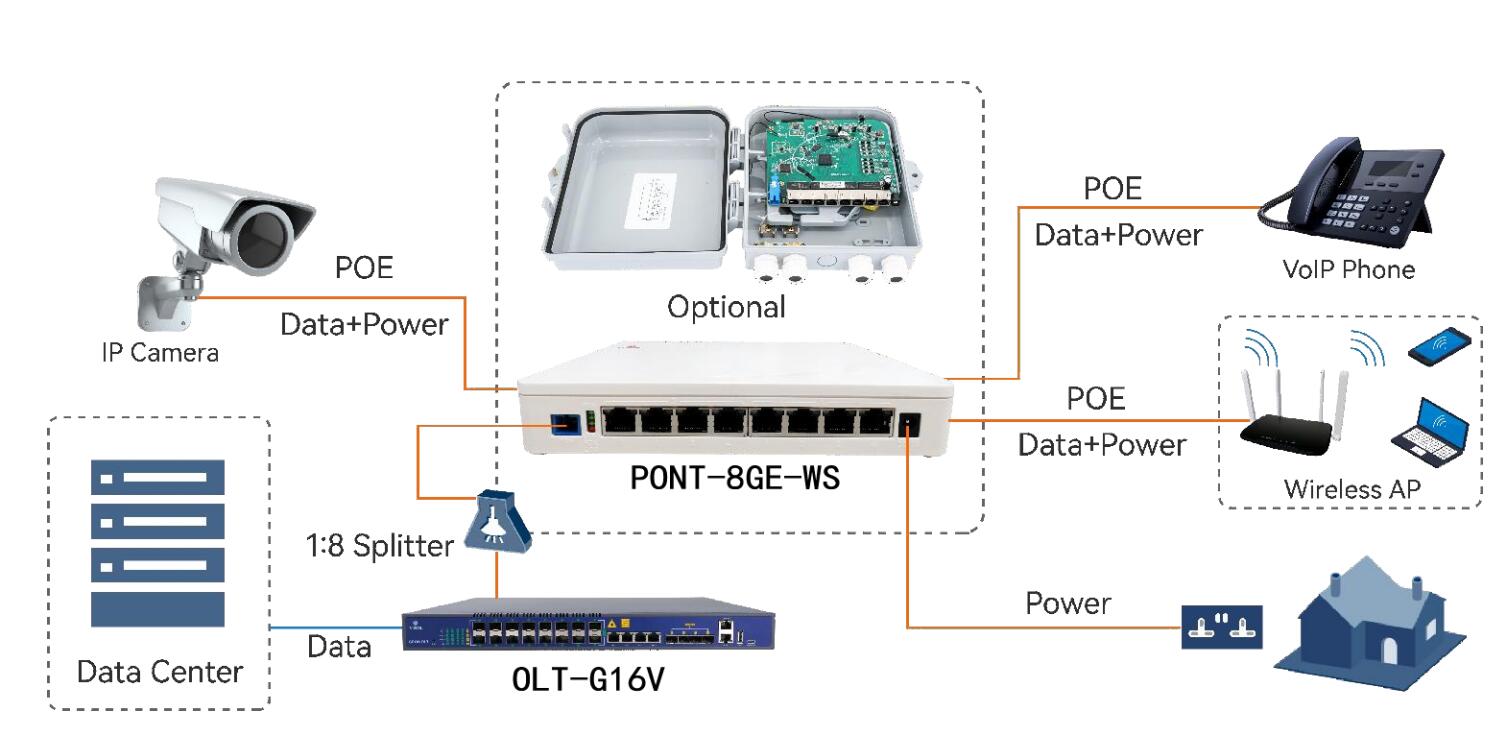

One of the key features of the device is its ability to support xPON dual-mode(Workable for both EPON & GPON), making it ideal for use in various scenarios. In addition, its 8 network ports all support the POE function, and users can supply power to network cameras, Wireless APs, and other devices through network cables. These ports also have IEEE802.3at and can provide up to 30W of power per port.
The XPON ONU also boasts WiFi5, a high-speed connection technology that supports dual-band 2.4G/5GHz with built-in antennas. This feature ensures users get the best wireless experience by providing excellent coverage and faster data transfer rates. Another important feature of PONT-8GE-WS is that it supports multiple SSID and WiFi roaming (1 SSID), allowing multiple users to connect their devices under one SSID. The device also supports L2TP/IPsec VPN protocols to provide secure remote access to private networks, making it ideal for businesses and organizations.
The device's firewall is based on MAC/ACL/URL to ensure network security and efficiency. Finally, the device has intelligent operation and maintenance functions, using Web UI/SNMP/TR069/CLI, it is easy to manage and maintain. Overall, PONT-8GE-WS is a highly reliable access device that can guarantee QoS for different services, complies with international technical standards such as IEEE 802.3ah, and has many features, making it very suitable for residential and enterprise use.
| XPON Dual Mode 8×GE(POE+)+2×2 WiFi5 2.4G/5GHz Dual Band POE ONU | |
| Hardware Parameter | |
| Dimension | 196×160×32mm(L×W×H) |
| Net weight | 0.32Kg |
| Working condition | Working Temp: -30~+55°C |
| Working Humidity:10~90%(non-condensed) | |
| Storing condition | Storing temp: -30~+60°C |
| Storing humidity:10~ 90% (non-condensed) | |
| Power adapter | DC 48V, 2.5A |
| Power supply | ≤130W |
| Interface | 1*XPON+8*GE+WiFi5+POE(optional) |
| Indicators | POWER / WiFi / PON /LOS |
| Interface Parameter | |
| PON Interfaces | • 1XPON port(EPON PX20+ & GPON Class B+) |
| • SC single mode, SC/UPC connector | |
| • TX optical power: 0～+4dBm | |
| • RX sensitivity: -27dBm | |
| • Overload optical power: -3dBm(EPON) or – 8dBm(GPON) | |
| • Transmission distance: 20KM | |
| • Wavelength: TX 1310nm, RX1490nm | |
| User Interface | • 8*GE, Auto-negotiation RJ45 connectors |
| • Support IEEE802.3at standards (POE+ PSE) | |
| WLAN Interface | • Compliant with IEEE802.11b/g/n/ac,2T2R |
| • 2.4GHz Operating frequency: 2.400-2.483GHz | |
| • 5.0GHz Operating frequency: 5.150-5.825GHz | |
| Function Data | |
| Management | • Support OMCI(ITU-T G.984.x) |
| • Support CTC OAM 2.0 and 2.1 | |
| • Support TR069/Web/Telnet/CLI | |
| Application | • Support L2TP & IPSec VPN |
| • Support EoIP | |
| • Support VxLan | |
| • Support Web Push | |
| LAN | Support Port rate limiting |
| WAN | Support config first LAN interface as WAN port |
| VLAN | • Support VLAN tag/VLAN transparent/VLAN trunk/VLAN translation |
| • Support VLAN based WAN and VLAN based LAN | |
| Multicast | • Support IGMPv1/v2/v3 |
| • Support IGMP Proxy and MLD Proxy | |
| • Support IGMP Snooping and MLD Snooping | |
| QoS | • Support 4 queues |
| • Support SP and WRR | |
| • Support 802.1P | |
| • Support DSCP | |
| Wireless | • Support Wireless AP mode |
| • Support 802.11 b/g/n/ac | |
| • Support Multiple SSID | |
| • Authentication : WEP/WAP- PSK(TKIP)/WAP2-PSK(AES) | |
| • Modulation type: DSSS, CCK and OFDM | |
| • Encoding scheme: BPSK, QPSK, 16QAM and 64QAM | |
| • Support EasyMesh | |
| QoS | • Support 4 queues |
| • Support SP and WRR | |
| • Support 802.1P and DSCP | |
| L3 | • Support IPv4、IPv6 and IPv4/IPv6 dual stack |
| • Support DHCP/PPPOE/Statics | |
| • Support Static route,NAT | |
| • Support Bridge, Route ,Route and Bridge mixed mode | |
| • Support DMZ, DNS, ALG,UPnP | |
| • Support Virtual Server | |
| DHCP | Support DHCP Server & DHCP Relay |
| Security | Support Filter based on MAC/ACL/URL |
PONT-8GE-W5 8×GE(POE+)+2×2 WiFi5 2.4G/5GHz Dual Band POE XPON ONU Datasheet-V2.0-EN
