PONT-1G3F 1×GE(POE+)+3×FE(POE+) POE XPON ONU PSE Mode

Model Number: PONT-1G3F

Brand: Softel

MOQ: 1

gou Bridge Access Mode

gou POE+ Max 30W per Port

gou 1×GE(POE+)+3×FE(POE+) PSE



Product Detail

Technical Parameters

Network Application

Download

01

Product Description

Brief Intro and Features
PONT-1G3F (1×GE+3×FE XPON POE(PSE) ONT) is specially designed to meet telecom operators' FTTH, SOHO, and other access requirements. This highly cost-Effective XPON POE ONU has the following features:
- Bridge Access Mode
- POE+ Max 30W per Port
- 1×GE(POE+)+3×FE(POE+) PSE ONU
- Compatible XPON Dual Mode GPON/EPON
- IEEE802.3@ POE+ Max 30W per Port

This XPON ONU is based on a high-performance chip solution, supports XPON dual-mode EPON and GPON, and also supports Layer 2/Layer 3 functions, providing data services for carrier-grade FTTH applications.
The four network ports of the ONU all support the POE function, which can supply power to IP cameras, wireless APs, and other devices through network cables.
The ONU is highly reliable, easy to manage and maintain, and has QoS guarantees for various services. It complies with international technical standards such as IEEE 802.3ah and ITU-T G.984.



PONT-1G3F 1×GE(POE+)+3×FE(POE+) POE XPON ONU PSE Mode
Hardware Parameter
Dimension 175mm×123mm×28mm(L×W×H)
Net Weight About 0.6kg
Operating Condition Temperature: -20℃~50℃
Humidity: 5%~90%(non-condensing)
Storage Condition Temperature: -30℃~60℃
Humidity: 5%~90%(non-condensing)
Power Adapter DC 48V/1A
Power Supply ≤48W
Interface 1×XPON+1×GE(POE+)+3×FE(POE+)
Indicators POWER,LOS,PON, LAN1~LAN4
Interface Parameter
PON
Features
• 1XPON port(EPON PX20+&GPON Class B+)
• SC single mode, SC/UPC connector
• TX optical power: 0~+4dBm
• RX sensitivity: -27dBm
• Overload optical power: -3dBm(EPON) or – 8dBm(GPON)
• Transmission distance: 20KM
• Wavelength: TX 1310nm, RX1490nm
User Interface • PoE+, IEEE 802.3at, Max 30W per port
• 1*GE+3*FE Auto-negotiation,RJ45 connectors
• Configuration of the number of MAC addresses learned
• Ethernet port-based VLAN transparent transmission and VLAN filtering
Function Data
O&M • Support  OMCI(ITU-T G.984.x)
• Support CTC OAM 2.0 and 2.1
• Support Web/Telnet/CLI
Uplink Mode • Bridging mode
• Compatible with mainstream OLTs
L2 • 802.1D&802.1ad bridging
• 802.1p CoS
• 802.1Q VLAN
Multicast • IGMPv2/v3
• IGMP Snooping

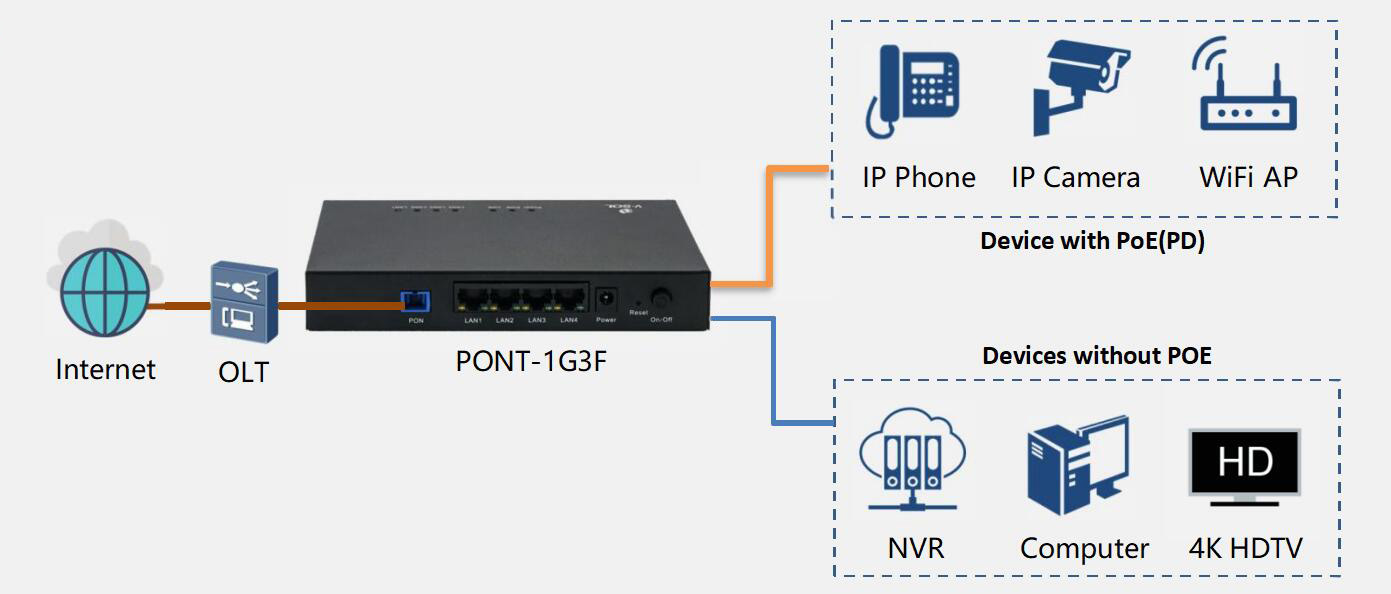

PONT-1G3F-Application Chart
