FTTH 4*GE+1*POTS+1*USB3.0+WiFi 6 XPON ONT
Model Number: ONT-4GE-VUW618
Brand: Softel
MOQ: 1
Chipsets: RTL9607C+, RTL8832AR + RTL8192XAR
2.4GHz & 5GHz Dual Band; Speed up to 1.8 Gbps
USB3.0 Interface For Shared Storage/Printer
Compatible With ZTE, HUAWEI and FIBERHOME OLT
01
Product Description
Introduction:

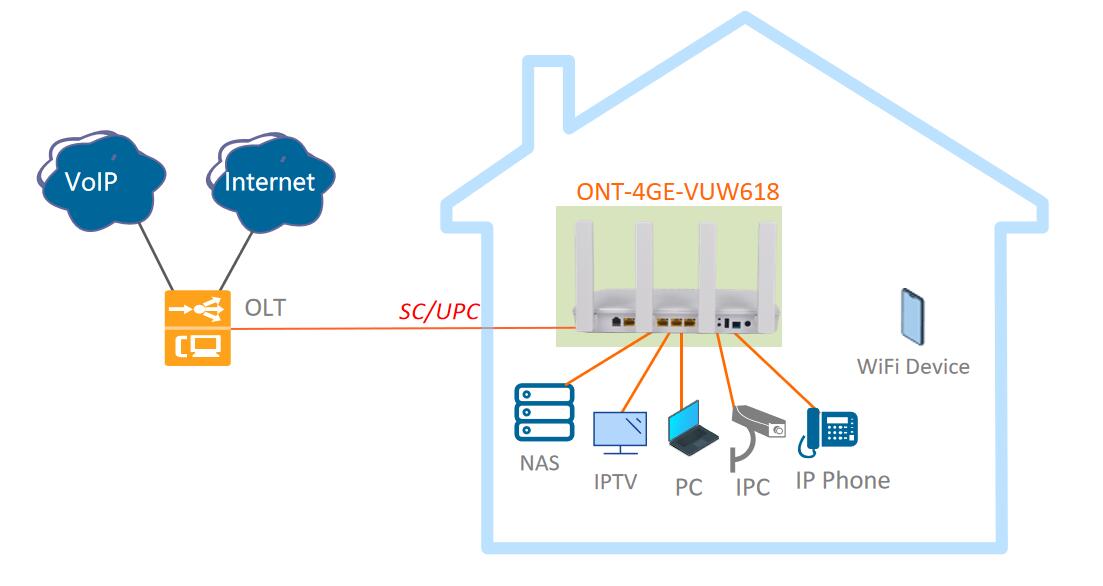

ONT-4GE-VUW618 (4GE+1POTS+WiFi6 XPON HGU ONT) is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.
The ONT is based on high-performance chip solutions, supports XPON dual-mode technology (EPON and GPON), and also supports IEEE802.11b/g/n/ac/ax WiFi 6 technology and other Layer 2/Layer 3 functions, providing data service for carrier-grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the SOFTEL OLT.
The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It conforms to a series of international technical standards such as IEEE802.3ah and ITU-T G.984.
| ONT-4GE-VUW618 4GE+1POTS+WiFi6 XPON HGU ONU | |
| Hardware Parameter | |
| Dimension | 250mm×145mm×36mm(L×W×H) |
| Net weight | 0.34Kg |
| Operating Condition | Operating temp:0 ~ +55°C |
| Operating humidity:5 ~ 90% (non-condensed) | |
| Storing Condition | Storing temp: -30 ~ +60°C |
| Storing humidity: 5 ~ 90% (non-condensed) | |
| Power adapter | DC 12V, 1.5A, external AC-DC power adaptor |
| Power supply | ≤18W |
| Interface | 1XPON+4GE+1POTS+USB3.0+WiFi6 |
| Indicators | PWR,PON ,LOS,WAN,WiFi,FXS, |
| ETH1~4,WPS,USB | |
| Interface Specs | |
| PON Interface | 1XPON port(EPON PX20+ and GPON Class B+) |
| SC single mode, SC/UPC connector | |
| TX optical power: 0～+4dBm | |
| RX sensitivity: -27dBm | |
| Overload optical power: -3dBm(EPON) or -8dBm(GPON) | |
| Transmission distance: 20KM | |
| Wavelength: TX 1310nm, RX1490nm | |
| User interface | 4×GE, Auto-negotiation,RJ45 ports |
| 1×POTS RJ11 Connector | |
| Antenna | 4 ×5dBi external antennas |
| USB | 1×USB 3.0 for Shared Storage/Printer |
| Functional Data | |
| O&M | WEB/TELNET/OAM/OMCI/TR069 |
| Support private OAM/OMCI protocol and Unified network management of SOFTEL OLT | |
| Internet connection | Support Routing Mode |
| Multicast | IGMP v1/v2/v3, IGMP snooping |
| MLD v1/v2 snooping | |
| VoIP | SIP and IMS SIP |
| G.711a/G.711u/G.722/G.729 Codec | |
| Echo cancellation,VAD/CNG,DTMF Relay | |
| T.30/T.38 FAX | |
| Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference | |
| Line testing according to GR-909 | |
| WIFI | Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz |
| WiFi Encryption:WEP-64/WEP-128/ WPA/WPA2/WPA3 | |
| Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM | |
| Smart Connect for one Wi-Fi name - One SSID for 2.4GHz and 5GHz dual band | |
| L2 | 802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN |
| L3 | IPv4/IPv6, DHCP Client/Server,PPPoE, NAT, DMZ, DDNS |
| Firewall | Anti-DDOS, Filtering Based on ACL/MAC /URL |
Dual Mode xPON WIFI 6 ONT-4GE-VUW618 Datasheet-V1.8-EN
