ONT-225GE Dual Mode 1*2.5GE+1GE XPON ONT
Model Number: ONT-225GE
Brand: Softel
MOQ: 1
EPON/GPON Dual Mode
High-Speed 2.5GbE LAN Port
Automatically Detecting Rogue ONU
01
Product Description

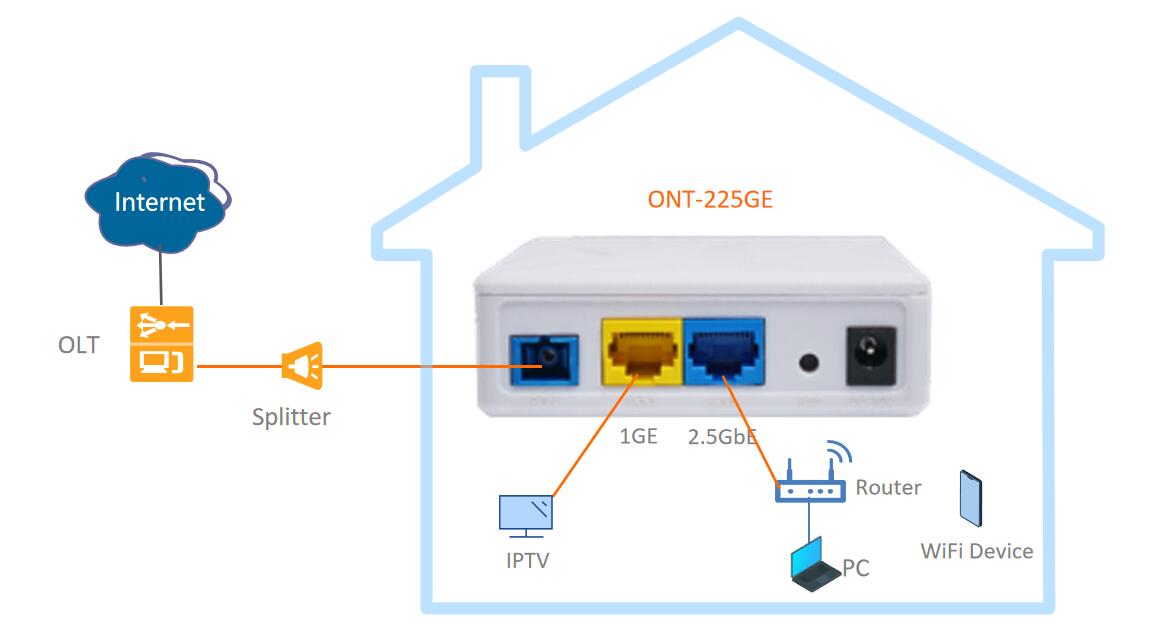

ONT-225GE(1*2.5GE+1GE XPON ONT) is specially designed to meet the needs of telecom operators for FTTO (office), FTTD (desktop), FTTH (home), SOHO broadband access, video surveillance, etc. It is based on mature XPON technology, has high reliability, easy maintenance, and can provide a QoS guarantee for different services.
The ONT's 2.5GE network port can fully meet the high access bandwidth requirements of WIFI 6 technology, AR/VR technology, 8K video, and other technologies, and can bring fast Internet access experience and lower Internet latency for home users and enterprise users.
The ONT has high reliability and is easy to manage and maintain. It complies with the China Telecom CTC2.1/3.0 and international technical standards such as IEEE802.3ah and ITU-T G.984.
| ONT-225GE 1*XPON+1*2.5GbE+1*GE XPON ONT | |
| Hardware Specs | |
| Dimension | 100mm*92mm*29.5mm(L*W*H) |
| Net weight | 0.13KG |
| Operating Condition | Operating temp: -20 ~ +60°C |
| Operating humidity: 10 ~ 90% (non-condensed) | |
| Storing Condition | Storing temp:-30 ~ +70°C |
| Storing humidity: 10 ~ 90% (non-condensed) | |
| Power Adapter | DC 12V, 0.5A, External AC-DC power adaptor |
| Interfaces | 1*2.5GbE+1*GE |
| Indicators | POWER, PON, LOS, WAN, LAN1, LAN2 |
| Interface Index | |
| PON interface | 1 XPON port(EPON PX20+ & GPON Class B+) |
| SC single mode, SC/UPC connector | |
| TX optical power: 0～+4dBm | |
| RX sensitivity: -27dBm | |
| Overload optical power: -3dBm(EPON) or -8dBm(GPON) | |
| Transmission distance: 20KM | |
| Wavelength: TX 1310nm, RX1490nm | |
| LAN interface | 1*2.5GbE+1*GE(Option), Auto-negotiation RJ45 connectors |
| Button | Reset |
| Fuctional Data | |
| PON interface | 1 XPON port(EPON PX20+ & GPON Class B+) |
| SC single mode, SC/UPC connector | |
| TX optical power: 0～+4dBm | |
| RX sensitivity: -27dBm | |
| Overload optical power: -3dBm(EPON) or -8dBm(GPON) | |
| Transmission distance: 20KM | |
| Wavelength: TX 1310nm, RX1490nm | |
| LAN interface | 1*2.5GbE+1*GE(Option), Auto-negotiation RJ45 connectors |
| Button | Reset |
| Technical Features | |
| PON interface | 1 XPON port(EPON PX20+ & GPON Class B+) |
| SC Single Mode, SC/UPC connector | |
| TX Optical Power: 0～+4dBm | |
| RX sensitivity: -27dBm | |
| Overload optical power: -3dBm(EPON) or -8dBm(GPON) | |
| Transmission distance: 20KM | |
| Wavelength: TX 1310nm, RX1490nm | |
| LAN interface | 1*2.5GbE+1*GE(Option), Auto-negotiation RJ45 connectors |
| Button | Reset |
ONT-225GE 1*XPON + 1*2.5GbE + 1*GE XPON ONT Datasheet.PDF
