ONT-4GE-RF-UW615 XPON ONU PON+WiFi6 Gig+ HGU CATV ONT
Model Number: ONT-4GE-RF-UW615
Brand: Softel
MOQ: 1
Realtek PON+WIFI6 Gig+ performance
2.4GHz & 5GHz Dual Band Speed up to 1.5Gbps

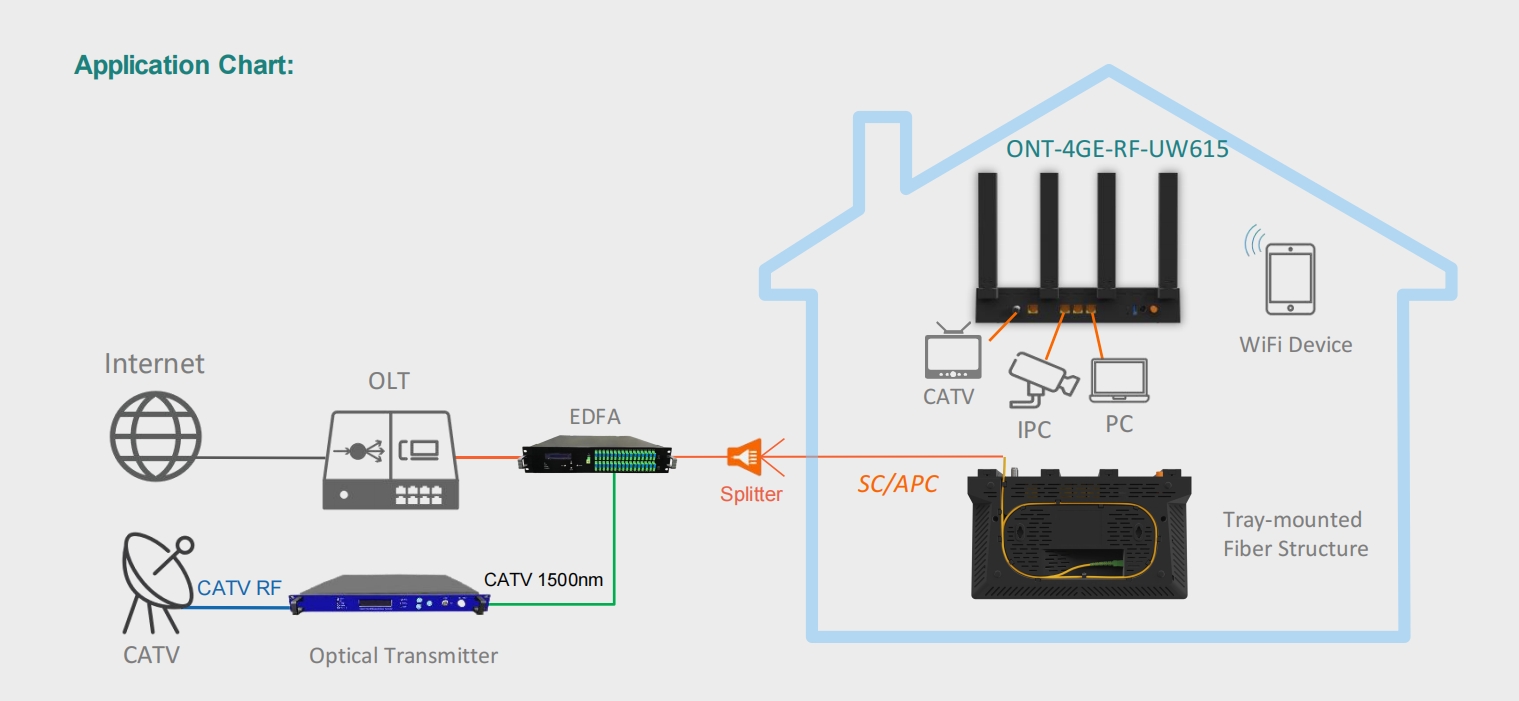

Tray-mounted Fiber Structure
01
Product Description
Brief Introduction
ONT-4GE-RF-UW615 (4GE+CATV+WiFi6 XPON HGU ONT)is a broadband access device designed to meet the demands of fixed network operators for FTTH.This ONT is based on a high-performance chip solution, supporting XPON dual-mode technolog (EPON and GPON). With WiFi speeds of up to 1500Mbps, it also supports IEEE 802.11b/g/n/ac/ax WiFi 6 technology and other Layer 2/Layer 3 features, providing data services for carrier-grade FTTH applications . In addition, this ONT supports OAM/OMCI protocols, allo wing configuration and management of various services on the SOFTEL OLT, making it easy to manage and maintain, and ensuring QoS for various services . It complies with international technical standards such as IEEE802.3ah and ITU-T G.984.
ONT-4GE-RF-UW615 comes in two color options for its body shell, black and white. With a bottom disc fiber structure design,it can be placed on a desktop or wall-mounted, adapting effortlessly to various scene styles!
| Hardware Parameter | |
| Dimension | 260.4mm×157.4mm×45.8mm(L×W×H) |
| Net weight | 0.45Kg |
| Operating condition | Operating temp:-10 ~ +55℃Operating humidity:5 ~ 95% (non-condensed) |
| Storing condition | Storing temp: -40 ~ +70℃Storing humidity: 5 ~ 95% (non-condensed) |
| Power adapter | DC 12V, 1.5A, external AC-DC power adaptor |
| Power supply | ≤18W |
| Interface | 1XPON+4GE+1USB3.0+CATV+WiFi6 |
| Indicators | PWR ,PON ,LOS ,WAN ,LAN1~4 ,2.4G ,5G , WPS ,USB ,CATV |
| Interface parameter | |
| PON Interface | • 1XPON port(EPON PX20+ and GPON Class B+)• SC single mode, SC/APC connector• TX optical power: 0～+4dBm• RX sensitivity: -27dBm• Overload optical power: -3dBm(EPON) or - 8dBm(GPON)
• Transmission distance: 20KM • Wavelength: TX 1310nm, RX1490nm |
| User interface | • 4×GE, Auto-negotiation,RJ45 ports |
| Antenna | 4 ×5dBi external antennas |
| CATV interface | • Optical receiving wavelength: 1550±10nm• Optical input range: +2～-18dBm• Optical reflection loss: ≥40dB• RF frequency range: 47~1000MHz• RF output impedance: 75Ω
• RF output level and AGC range: ≥81±2dBuv@+1 -10dBm ≥79±2dBuv@ 0 -11dBm ≥77±2dBuv@-1 -12dBm ≥75±2dBuv@-2 -13dBm ≥73±2dBuv@-3 -14dBm ≥71±2dBuv@-4 -15dBm • MER: ≥32dB(-14dBm optical input) |
| Function Data | |
| O&M | • WEB/TELNET/OAM/OMCI/TR069• Support private OAM/OMCI protocol |
| Internet connection | Support Routing Mode |
| Multicast | • IGMP v1/v2/v3, IGMP snooping• MLD v1/v2 snooping |
| WIFI | • WIFI6:802.11a/n/ac/ax 5GHz• WIFI4: 802.11g/b/n 2.4GHz• WiFi: 2.4GHz 2×2, 5.8GHz 2×2, 5dBiantenna, rate up to 1.5Gbps,Multiple SSID
• WiFi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 • Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM • Smart Connect for one Wi-Fi name - One SSID for 2.4GHz and 5GHz dual band • Support WIFI Easy-mesh function |
| L2 | 802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN |
| L3 | IPv4/IPv6, DHCP Client/Server,PPPoE, NAT, DMZ, DDNS |
| Firewall | Anti-DDOS, Filtering Based on ACL/MAC /URL |
