ONT-R4630H XPON 4GE CATV Dual Band AX3000 WiFi6 ONU
Model Number: ONT-R4630H
Brand: Softel
MOQ: 1
Support docking compatibility with OLT of various manufacturers
Automatically adapt to the EPON or GPON mode
Support 2.4 and 5G Hz dual band WIFI
01
Product Description
Brief Introduction

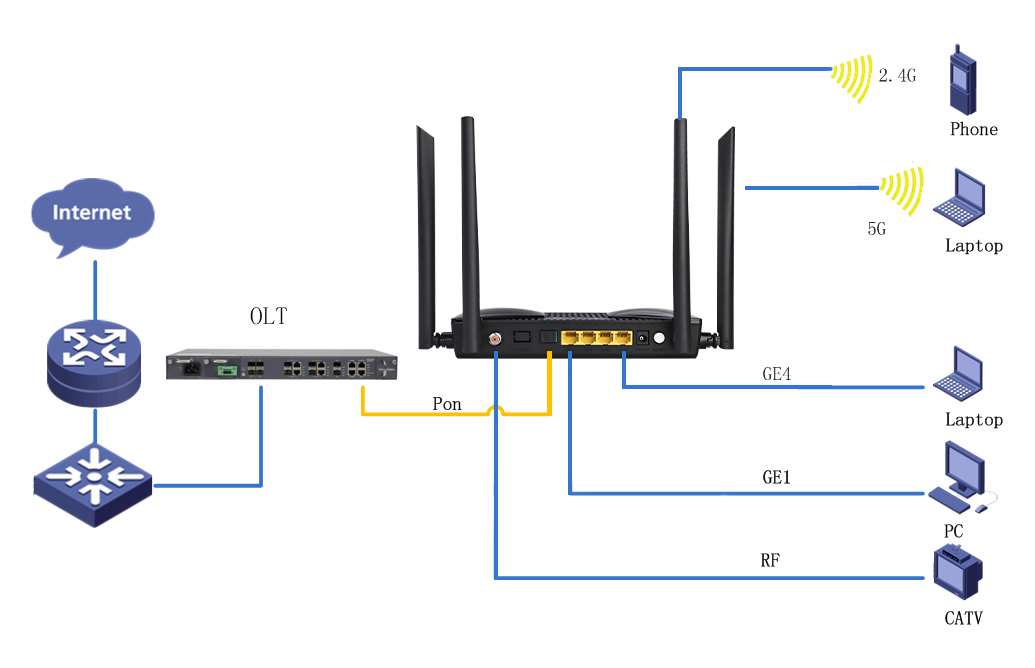

ONT-R4630H is launched to be oriented to multi-service integration network as an optical network unit device, which belongs to XPON HGU terminal for FTTH/O scenario. It configures four 10/100/1000Mbps ports, WiFi6 AX3000 (2.4G+5G) port and RF interface that providing with high-speed data services and high-quality video services to users.
Highlights
- Support docking compatibility with OLT of various manufacturers
- Support automatically adapt to the EPON or GPON mode used by the peer OLT
- Support 2.4 and 5G Hz dual band WIFI
- Support multiple WIFI SSID
- Support EasyMesh WIFI function
- Support WIFI WPS function
- Support multiple wan configuration
- Support WAN PPPoE/DHCP/Static IP/Bridge mode.
- Support CATV video service
- Support fast transmission of hardware NAT
- Support OFDMA, MU-MIMO,1024-QAM, G.984.x(GPON) standard
- Compliance with IEEE802.11b/g/n/ac/ax 2.4G & 5G WIFI standard
- Support IPV4 & IPV6 Management and transmission
- Support TR-069 remote configuration and maintenance
- Support Layer 3 gateway with hardware NAT
- Support Multiple WAN with Route/Bridge mode
- Support Layer 2 802.1Q VLAN, 802.1P QoS, ACL etc
- Support IGMP V2 and MLD proxy/ snooping
- Support DDNS, ALG, DMZ, Firewall and UPNP service
- Support CATV interface for video service
- Support bi-directional FEC
| ONT-R4630H XPON 4GE CATV Dual Band AX3000 WiFi6 ONU | |
| Hardware Specifications | |
| Interface | 1* G/EPON+4*GE+2.4G/5G WLAN+1*RF |
| Power adapter input | 100V-240V AC, 50Hz-60Hz |
| Power Supply | DC 12V/1.5A |
| Indicator light | POWER/PON/LOS/LAN1/ LAN2 / LAN3/LAN4/WIFI/WPS/OPT/RF |
| Button | Power switch Button, Reset Button, WLAN Button, WPS Button |
| Power Consumption | 18W |
| Working temperature | -20℃～+55℃ |
| Environment humidity | 5% ~ 95% (non-condensing) |
| Dimension | 180mm x 133mm x 28mm (L×W×H Without antenna) |
| Net Weight | 0.41Kg |
| PON Interface | |
| Interface Type | SC/APC, CLASS B+ |
| Transmission distance | 0～20km |
| Working wavelength | Up 1310nm；Down 1490nm；CATV 1550nm |
| RX Optical power sensitivity | -27dBm |
| Transmission rate | GPON: Up 1.244Gbps；Down 2.488GbpsEPON: Up 1.244Gbps；Down 1.244Gbps |
| Ethernet Interface | |
| Interface type | 4* RJ45 |
| Interface parameters | 10/100/1000BASE-T |
| Wireless | |
| Interface type | External 4*2T2R External antenna |
| Antenna gain | 5dBi |
| Interface maximum rate | 2.4G WLAN： 574Mbps5G WLAN： 2402Mbps |
| Interface working mode | 2.4G WLAN：802.11 b/g/n/ax5G WLAN：802.11 a/n/ac/ax |
| CATV Interface | |
| Interface type | 1*RF |
| Optical receiving wavelength | 1550nm |
| RF output level | 80±1.5dBuV |
| Input optical power | 0~-15dBm |
| AGC range | 0~-12dBm |
| Optical reflection loss | >14 |
| MER | >35@-15dBm |
