ONTX-S101GVH 1GE + 10GE XGSPON ONT
Model Number: ONTX-S101GVH
Brand: Softel
MOQ: 1
Support docking compatibility with OLT of various manufacturers
Compliant with ITU-T G.987 XGSPON standards
Local Management Control, Host List, Access Schedule, Rule Management
01
Product Description
Brief Introduction

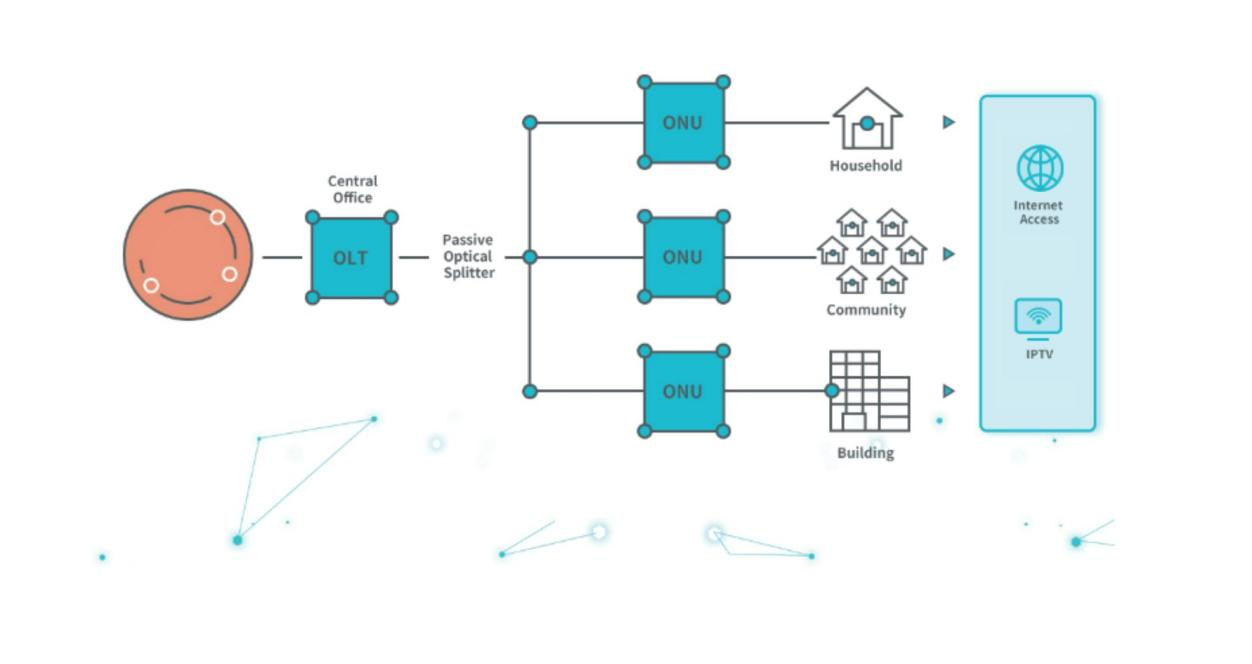

The ONTX-S101GVH compliant with ITU-T G.987 XGSPON standards. It has good interoperability which can interoperate with mainstream central office manufacturers OLTs equipment. Through high-speed PON access services, users can be provided with broadband Internet or access to the company's corporate network services. It configures one 10/100/1000Mbps port, one 10G port ,and one POTS port.
Highlights:
- Support docking compatibility with OLT of various manufacturers
- Local Management Control, Host List, Access Schedule, Rule Management
Features:
- Compliance with ITU-T G.9807.x(XGSPON) standard
- Support Layer 2 802.1Q VLAN, 802.1P QoS
- Port Forwarding: L2/L3 forwarding, L3 NAPT
- Support port loop detection
- Support port rate limit
- Support 8 Queues with Strict Priority
- Support IP Address Filter/MAC Address Filter/Domain Filter
- Support Firewall
- Support Telnet/SSH Management with CLI commands
- Support 802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode
- Support IPV4 & IPV6 Management and Transmission
| Hardware Parameter | |
| Interface | 1 x SC/APC XGS-PON Port, 1 x 10GE Port, 1 x GE Port, 1 POTS |
| Power adapter input | 100V-240V AC, 50Hz-60Hz |
| Power Supply | DC 12V/1.0A |
| Indicator light | PWR/PON/LOS/INTERNET/10G/GE/VOICE |
| Button | Power switch Button, Reset Button |
| Power Consumption | <12W |
| Working temperature | 0ºC~+55ºC |
| Storage Temperature | -40ºC~+70ºC |
| Environment humidity | 10% ~ 90% (non-condensing) |
| Dimension | 90*73*25.2mm (L×W×H ) |
| Interface Parameter | ||
| PON Interface | Interface Type | SC/UPC |
| Transmission distance | 0~20km | |
| Working wavelength | XGSPON :Up 1270nm; Down 1577nm; | |
| RX Optical power sensitivity | -27dBm(XGSPON) | |
| Transmission rate | XGSPON Up 9.95328 Gbps;Down 9.95328 Gbps | |
| Ethernet Interface | Interface type | 1* 1G RJ45 + 1* 10G RJ45 |
| Interface parameters | 1G :RJ45(10/100/1000Mbps )10G :RJ45(1/2.5/5/10 Gbps ) | |
| PON Interface | Interface type | 1*FXS , RJ11 connector |
| Support G.711 codec | ||
