SFT2500C CATV 32 in 1 Channels PAL NTSC IP to Analog Modulator
Model Number: SFT2500C
Brand: Softel
MOQ: 1
Max 64 IP input over MPTS/SPTS
Support HEVC/H.265, H.264/AVC, MPEG-2 TS Decapsulation
32 non-adjacent and adjacent carriers output within 400MHz
01
Product Description
1. INTRODUCTION
SFT2500C 32 in 1 ip to analog modulator av to rf modulator is our new arrival, has high quality with frequency range of 47-862MHz. It help cable network operators convert baseband audio and video signals into network-ready RF output signals.
2. FEATURES
- 2 GE ports (max 64 IP input over MPTS/SPTS), Max 840Mbps for each GE input
- Support HEVC/H.265, H.264/AVC, MPEG-2 TS Decapsulation
- Processing of up to 32 IP multicast groups of a Gigabit Ethernet MPEG TS into up to 32 standard PAL or NTSC or SECAM TV programs (SECAM is under development)
- 32 non-adjacent and adjacent carriers output within 400MHz
- High density

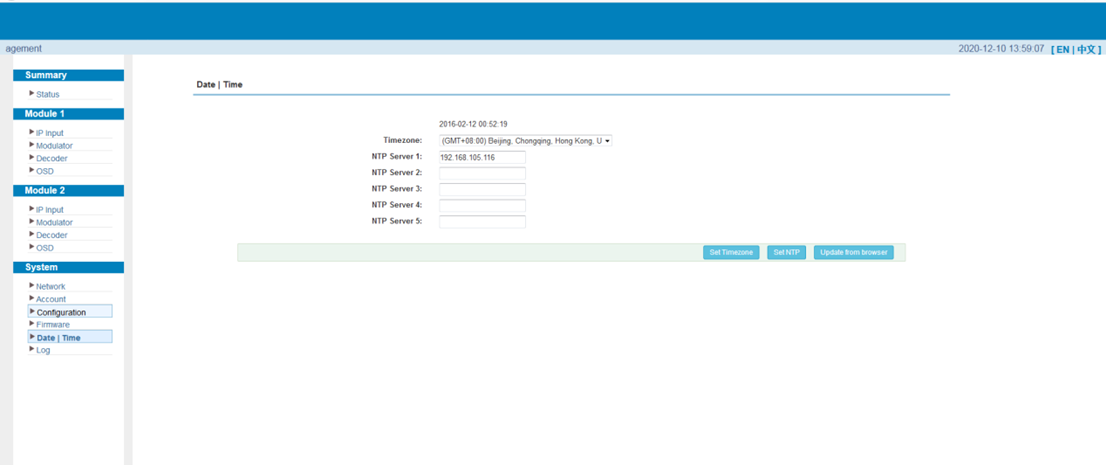

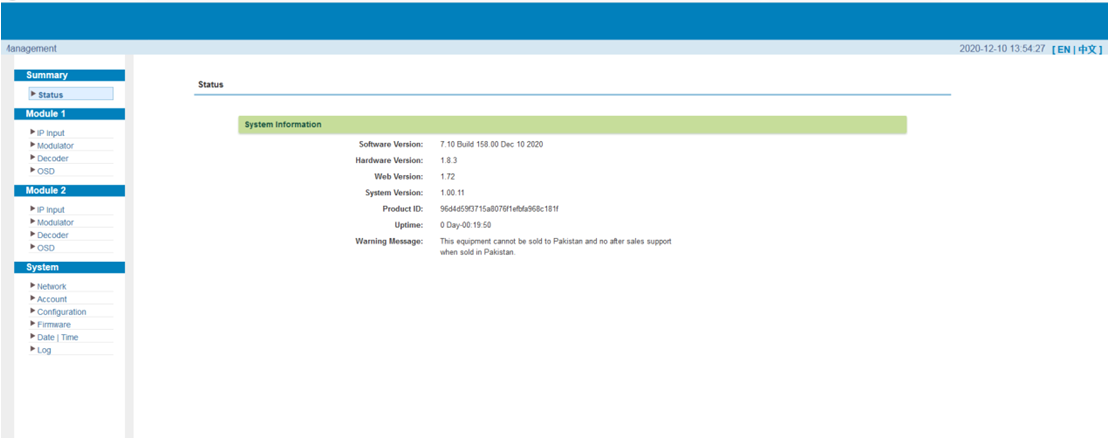

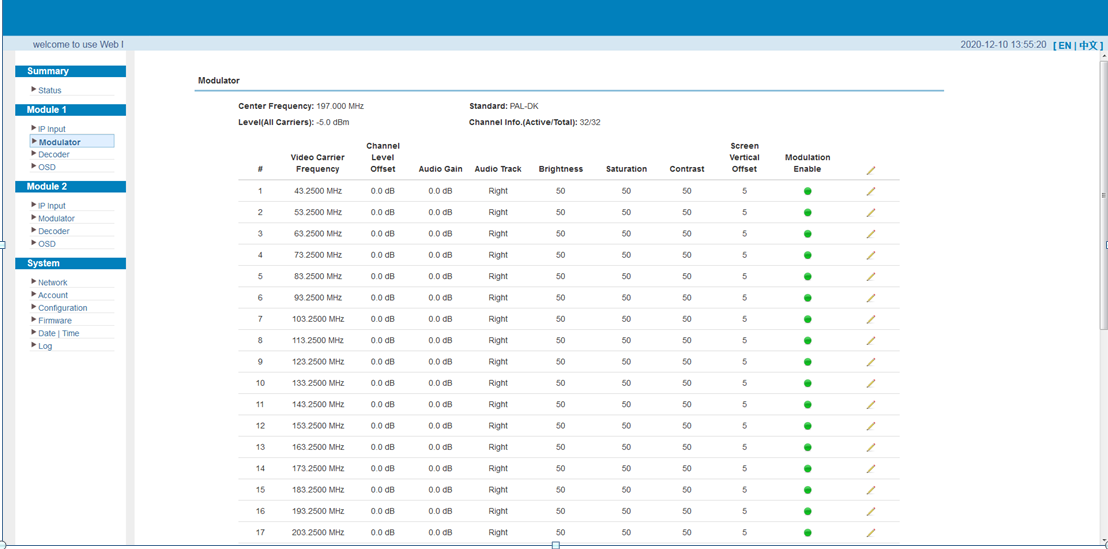

- Support web-based network
| SFT2500C 32 in 1 IP to Analog Modulator | ||
| Input | Interface/rate | 2 GE ports (max 64 IP input) Max 840Mbps for each GE input |
| Stream | UDP, UDP / RTP, 1-7 packets, FEC, SPTS, MPTS | |
| Transport Protocol | UDP/RTP, unicast and multicast, IGMP V2/V3 | |
| Packet Length | 188 / 204 Bytes | |
| DecodingParameters | Video | HEVC/H.265, H.264/AVC Level 4.1 HP, MPEG-2 MP@HL |
| Audio | MPEG-1/2 Layer 1/2, (HE-)AAC,AC3 | |
| Data | Teletext, Teletext subtitles, DVB Subtitling | |
| Resolutions | HEVC/H.265: 1080@60P ,1080@60I,1080@50P,1080@50I,720@60P,720@50P
H.264/AVC: 1080@60I,1080@50P,1080@50I,1080@30P,1080@25P , 720@60P,720@50P,576@50I,480@60I MPEG2: 1080@60I,1080@50I, 720@60P,720@50P,576@50I,480@60I |
|
| Aspect ratio | 4:3/16:9 | |
| Modulation Parameters | Number of channels | up to 32 |
| Connectors | 75Ω, F-jack | |
| Frequency range | 47 – 862MHz, digital modulation process | |
| Output Bandwidth | 400MHz | |
| Output level | maximum 112dBμV | |
| Return loss | ≥ 14dB | |
| Spurious frequency dist. | ≥ 60dB | |
| Stereo cross talk | > 55dB | |
| Residual carrier accuracy | 1% | |
| TV standard | PAL B/G/D/K/M/N, NTSC M/J/4.43,SECAM (under development) | |
| Video-signal to noise ratio | ≥ 60dB | |
| Network Interface | Management | 1 x 100 Base-T Ethernet (RJ 45) |
| Data | 2 x 1000 Base-T Ethernet (RJ 45) | |
| Protocol | IEEE802.3 Ethernet, RTP, ARP, IPv4, TCP/UDP, HTTP, IGMPv2/v3 | |
| Others | Image resolution | up to 1080i |
| CNR | 60 dB (after internal combining) | |
| SNR | > 53 dB (after internal combining) | |
| Sampling frequency | 48, 44.1, 32 | |
| Output volume adjustment | 0 – 100 % | |
| General | Demission | 420mm×440mm×44.5mm (WxLxH) |
| Temperature | 0~45℃(operation), -20~80℃(storage) | |
| Power Supply | AC100V±10%, 50/60Hzor AC 220V±10%,50/60Hz | |
