SFT3508B 16 Channels DVB-C/T/T2 /ISDB-T/ATSC Converter Tuner to IP Gateway
Model Number: SFT3508B
Brand: Softel
MOQ: 1
16*FTA DVB- S/S2/S2X (DVB-C/T/T2 /ISDB-T/ATSC) Inputs
Support both Unicast and Multicast
MPTS and SPTS output switchable
01
Product Description
Brief Introduction

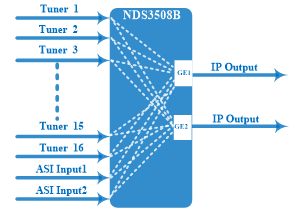

SOFTEL SFT3508B Tuner to IP Gateway is a head-end interface conversion device which supports MPTS and SPTS output switchable. It supports 16 MPTS or 512 SPTS output over UDP and RTP/RTSP protocol. It is integrated with tuner demodulation (or ASI input) and gateway function, which can demodulate the signal from 16 tuners into IP package, or directly convert the TS from ASI input and tuner into IP package, then output the IP package through different IP address and ports. BISS function is also embedded for tuner input to descramble your tuner input programs.
Functional Features
- Support 16 FTA DVB- S/S2/S2X (DVB-C/T/T2 /ISDB-T/ATSC optional ) input, 2 ASI input
- Support BISS descrambling
- Support DisEqc function
- 16 MPTS or 512 SPTS output (MPTS and SPTS output switchable)
- 2 GE mirrored output (IP address and port number of GE1 and GE2 are different), up to 850Mbps---SPTS
- 2 independent GE output port, GE1 + GE2---MPTS
- Support PID filtering, re-mapping (Only for SPTS output)
- Support “Null PKT Filter” function (Only for MPTS output)
- Support Web operation
| SFT3508B 16 Channels Tuner to IP Gateway | |||||
| Input | Optional 1:16 tuners input +2 ASI input—SPTS outputOptional 2:14 tuners input +2 ASI input — MPTS outputOptional 3:16 tuners input — MPTS output | ||||
| Tuner Section | DVB-C | Standard | J.83A(DVB-C), J.83B, J.83C | ||
| Frequency In | 30 MHz~1000 MHz | ||||
| Constellation | 16/32/64/128/256 QAM | ||||
| DVB-T/T2 | Frequency In | 30MHz ~999.999 MHz | |||
| Bandwidth | 6/7/8 M bandwidth | ||||
| (Version 1) | DVB-S | Input Frequency | 950-2150MHz | ||
| Symbol rate | 1~45 Msps | ||||
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||||
| Constellation | QPSK | ||||
| DVB-S2 | Frequency In | 950-2150MHz | |||
| Symbol rate | 1~45 Msps | ||||
| FEC | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | ||||
| Constellation | QPSK, 8PSK | ||||
| (Version 2) | DVB-S | Frequency In | 950-2150MHz | ||
| Symbol rate | 0.5~45Msps | ||||
| Signal Strength | - 65- -25dBm | ||||
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||||
| Constellation | QPSK | ||||
| Max input bitrate | ≤125 Mbps | ||||
| DVB-S2 | Frequency In | 950-2150MHz | |||
| Symbol rate | QPSK/8PSK /16APSK :0.5~45 Msps32APSK: 0.5~34Msps; | ||||
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 | ||||
| Constellation | QPSK, 8PSK, 16APSK, 32APSK | ||||
| Max input bitrate | ≤125 Mbps | ||||
| DVB-S2X | Frequency In | 950-2150MHz | |||
| Symbol rate | QPSK/8PSK /16APSK :0.5~45 Msps8APSK: 0.5~40Msps32APSK: 0.5~34Msps | ||||
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/208PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/108APSK: 5/9-L, 26/45-L16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/9 |
||||
| Constellation | QPSK, 8PSK, 8APSK, 16APSK, 32APSK | ||||
| Max input bitrate | ≤125 Mbps | ||||
| ISDB-T | Frequency In | 30-1000MHz | |||
| ATSC | Frequency In | 54MHz~858MHz | |||
| Bandwidth | 6M bandwidth | ||||
| BISS Descrambling | Mode 1, Mode E (Up to 850Mbps) (descramble individual program) | ||||
| Output | 512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 and GE2 port (IP address and port number of GE1 and GE2 are different) , Unicast and Multicast | ||||
| 16 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast | |||||
| System | Web based management | ||||
| Ethernet software upgrade | |||||
| Miscellaneous | Dimension | 482mm×410mm×44mm (W×L×H) | |||
| Approx weight | 3.6kg | ||||
| Environment | 0~45℃(work)；-20~80℃（Storage） | ||||
| Power requirements | 100~240VAC, 50/60Hz | ||||
| Power consumption | 20W | ||||
