SFT3536S MPEG-4 AVC/H.264 Video Encoding HDMI DVB-C Encoder Modulator
Model Number: SFT3536S
Brand: Softel
MOQ: 1
128 IP input over UDP and RTP via GE port
Support 12 MPTS IP output over UDP, RTP/RTSP
Support LOGO, Caption and QR code insertion
01
Product Description
1. Product Overview

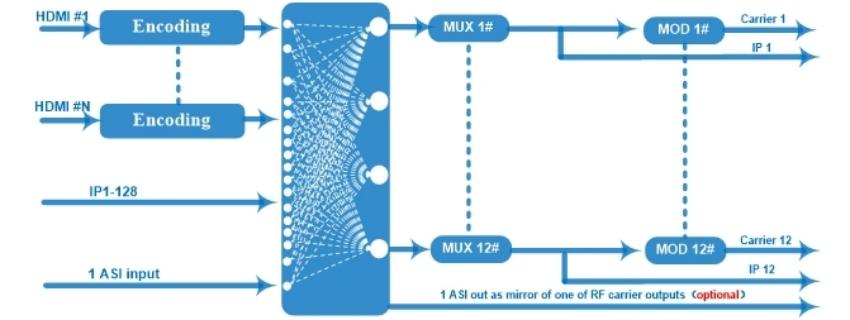

SFT3536S is a professional high integration device which includes encoding, multiplexing, and modulation. It supports 8/16/24 HDMI inputs, 1 ASI input, 1 USB payer input and 128 IP inputs via the GE port. It also supports DVB-C RF out with 12 non-adjacent carriers, and supports 12 MPTS as mirror of 12 carriers through the GE port and 1 ASI out (optional) as mirror of one of the carriers. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…
2. Key features
- 8/16/24 HDMI inputs, MPEG-4 AVC/H.264 Video encoding
- 1 ASI input for re-mux
- 1 USB Player (Insert the USB Flash drive with “xxx.ts” videos in SFT3536S and play back the content in an easy way; file system FAT 32. )
- 128 IP input over UDP and RTP via GE port
- Each carrier out channel processes maximum 32 IP inputs from the GE port(UDP&RTP protocol)
- MPEG1 Layer II, LC-AAC and HE-AAC Audio encoding, AC3 Pass Through and audio gain adjustment
- Support 12 groups multiplexing/DVB-C modulating
- Support 1 ASI out as mirror of one of RF output carriers---Optional
- Support 12 MPTS IP output over UDP, RTP/RTSP
- Support LOGO, Caption and QR code insertion(Language Supported: 中文, English, العربية, русский, اردو, for more languages please consult us…)
- Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
- Control via web management, and easy updates via web
| SFT3536S DVB-C Encoder Modulator | |||||
| Input | 8/16/24 HDMI inputs for option1 ASI in for re-mux
1 USB Player input for re-mux 128 IP input over UDP and RTP, GE port, RJ45 |
||||
| Video | Resolution | Input | 1920×1080_60P, 1920×1080_60i,1920×1080_50P, 1920×1080_50i,1280×720_60P, 1280×720_50P,720×576_50i,720×480_60i, | ||
| Output | 1920×1080_30P, 1920×1080_25P,1280×720_30P, 1280×720_25P,720×576_25P,720×480_30P, | ||||
| Encoding | MPEG-4 AVC/H.264 | ||||
| Bit-rate | 1Mbps~13Mbps each channel | ||||
| Rate Control | CBR/VBR | ||||
| GOP Structure | IP…P (P Frame adjustment, without B Frame ) | ||||
| Audio | Encoding | MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through | |||
| Sampling rate | 48KHz | ||||
| Resolution | 24-bit | ||||
| Audio Gain | 0-255 Adjustable | ||||
| MPEG-1 Layer 2 Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps | ||||
| LC-AAC Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps | ||||
| HE-AAC Bit-rate | 48/56/64/80/96/112/128 kbps | ||||
| Multiplexing | Maximum PIDRemapping | 255 input per channel | |||
| Function | PID remapping ( automatically or manually) | ||||
| Accurate PCR adjusting | |||||
| Generate PSI/ SI table automatically | |||||
| Modulation | DVB-C | QAM Channel | 12 non-adjacent carriers output (maximum bandwidth 192MHz) | ||
| Standard | EN300 429/ITU-T J.83A/B | ||||
| MER | ≥40db | ||||
| RF frequency | 50~960MHz, 1KHz step | ||||
| RF output level | -20~+3dbm, 0.1db step | ||||
| Symbol Rate | 5.0Msps~7.0Msps, 1ksps stepping | ||||
| J.83A | J.83B | ||||
| Constellation | 16/32/64/128/256QAM | 64/256 QAM | |||
| Bandwidth | 8M | 6M | |||
| Stream output | 1 ASI output as mirror of one of RF output carriers(Optional)12 MPTS output over UDP and RTP/RTSP as mirror of 12 DVB-C carriers, 1*1000M Base-T Ethernet interface, GE port | ||||
| System function | Network management (WEB) | ||||
| Chinese and English language | |||||
| Ethernet software upgrade | |||||
| Miscellaneous | Dimension (W×L×H) | 482mm×328mm×44mm | |||
| Environment | 0~45℃(work)；-20~80℃（Storage） | ||||
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz | ||||
