SFT3394T DVB-S/S2(DVB-T/T2 Optional) FTA Tuner 16 in 1 Mux DVB-T Modulator
Model Number: SFT3394T
Brand: Softel
MOQ: 1
16 DVB-S/S2(DVB-T/T2 Optional) FTA Tuner
Support 8 groups multiplexing + 8 groups DVB-T modulating
Excellent RF output performance index, MER≥40db
01
Product Description
1. Outline

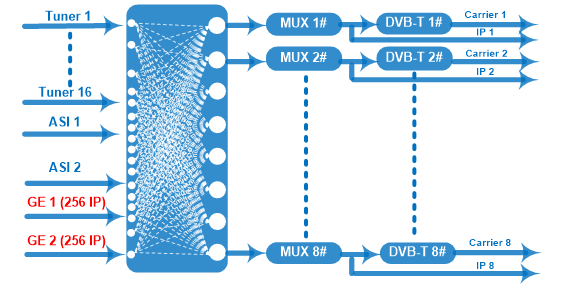

SFT3394T is a high performance and cost-effective DVB-T modulator designed by SOFTEL. It has 16 DVB-S/S2(DVB-T/T2) FTA tuner input, 8 groups multiplexing and 8 groups modulating, and supports maximum 512 IP input through GE1 and GE2 port and 8 IP (MPTS) output through GE1 port and 8 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. To meet customers’ various requirements, this device is also equipped with 2 ASI input ports.
SFT3394T is also characterized with high integrated level, high performance and low cost. It supports dual power supply (optional). This is very adaptable to newly generation broadcasting system.
2. Key features
- 8*DVB-T RF output
- 16 DVB-S/S2(DVB-T/T2 Optional) FTA Tuner + 2 ASI input+512 IP (GE1 and GE2) input over UDP and RTP protocol
- 8*DVB-T RF output
- Excellent RF output performance index, MER≥40db
- Support 8 groups multiplexing + 8 groups DVB-T modulating
- Support accurate PCR adjusting -Support PSI/SI editing and inserting
- Support Web management, Updates via web
- Redundancy Power Supply (optional)
| SFT3394T 16 in 1 Mux DVB-T Modulator | ||||
| Input | 16 DVB-S/S2 (DVB-T/T2 Optional) FTA Tuner | |||
| 512 IP (GE1 and GE2)input over UDP and RTP protocol | ||||
| 2 ASI input, BNC interface | ||||
| Tuner Section | DVB-S | Input Frequency | 950-2150MHz | |
| Symbol rate | 2-45Msps | |||
| Signal Strength | -65~-25dBm | |||
| FEC Demodulation | 1/2, 2/3, 3/4, 5/6, 7/8 QPSK | |||
| DVB-S2 | Input Frequency | 950-2150MHz | ||
| Symbol rate | QPSK 1~45Mbauds8PSK 2~30Mbauds | |||
| Code rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |||
| Demodulation Mode | QPSK, 8PSK | |||
| DVB-T/T2 | Input Frequency | 44-1002 MHz | ||
| Bandwidth | 6M, 7M, 8M | |||
| Multiplexing | Maximum PID Remapping | 128per input channel | ||
| Function | PID remapping (automatically or manually) | |||
| Accurate PCR adjusting | ||||
| Generate PSI/SI table automatically | ||||
| Modulation | Standard | EN300 744 | ||
| FFT | 2K 4K 8K | |||
| Bandwidth | 6M, 7M, 8M | |||
| Constellation | QPSK, 16QAM, 64QAM | |||
| Guard interval | 1/4, 1/8, 1/16, 1/32 | |||
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |||
| Stream output | 8 IP(MPTS) output over UDP /RTP, 100M/1000M self-adaption | |||
| 8 DVB-T RF output | ||||
| Remote management | Web NMS（10M/100M） | |||
| Language | English and Chinese | |||
| Software Upgrading | Web | |||
| General | Dimension(W*D*H) | 482mm×300mm×44.5mm | ||
| Temperature | 0~45℃(Operation) ; -20~80℃(Storage) | |||
| Power | AC 100V±1050/60Hz;AC 220V±10%, 50/60HZ | |||
SFT3394T-16-in-1-Mux-DVB-T-modulator-User-Manual.pdf
