SFT3228M-N Support H.264/MPEG-4/H.265 2/4/8/16/24*HDMI Channels Inputs IPTV Encoder
Model Number: SFT3228M-N
Brand: Softel
MOQ: 1
Support Encoding HEVC/ H.265
Available for 2/4/8//16/24 HDMI Inputs
IP Protocols of UDP (Unicast/Multicast), SRT, RTSP, RTP, RTMP, etc
01
Product Description
Brief Introduction

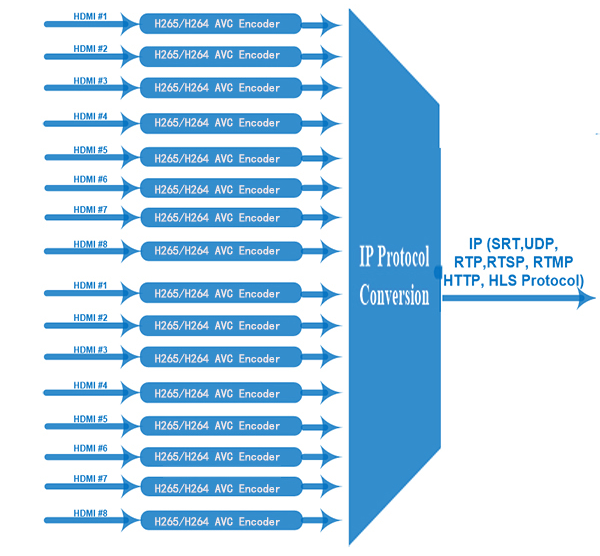

SFT3228M-N Series HDMI Encoders support 2/4/8/16/24 HDMI input support H264+H265 encoder with IP outputs of DUP/RTP/RTSP/RTMP/HLS/M3U8/SRT/etc. In addition, it integrates an IPTV system and users can upload VOD sources on it with huge memory. In conclusion, this full-function device makes it ideal for a small CATV head-end system, especially in a hotel TV system.
Functional Features
-Support 2/4/8//16/24 HDMI inputs, with2/4/ 8/16/24 SPTS output (each encoder module, only supports STPS, NO MPTS), max 24 HDMI inputs
-MPEG4 AVC/H.264/H265 video encoding format
-MPEG1 Layer II, LC-AAC， HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment
-Support IP Output over UDP (Unicast/Multicast), SRT, RTSP, RTP, RTMP, HTTP, HLS, M3U8
-Support QR code, LOGO, caption insertion (Language Supported: 中文, English, العربية, ไทย, हिन्दी, руская, اردو for more languages please consult us…)
-Support the “Null PKT Filter” function
-Control via web management, and easy updates via web
| SFT3228M-N Series 2/4/8/16/24*HDMI Channels Inputs HEVC/ H.265 IPTV Encoder | ||
| HDMI Encoding Section | ||
| Video | Encoding | HEVC/ H.265 , MPEG 4 AVC/H.264 |
| Interface | 2/4/8/16/24 HDMI input | |
| Resolution | 1920*1080_60P, | |
| 1920*1080_50P; | ||
| 1920*1080_59.94P, | ||
| 1280*720_60p, | ||
| 1280*720_59.94 | ||
| 1280*720_50P | ||
| Chroma | 4:02:00 | |
| Bitrate | 1Mbps~15Mbps | |
| Rate Control | CBR/VBR | |
| GOP Structure | IP | |
| Audio | Encoding Format | MPEG-1 Layer 2, |
| LC-AAC, HE-AAC, HE-AAC V2; | ||
| AC3 Pass-through | ||
| Sample rate | 32KHz,44.1KHz,48KHz | |
| Bit-rate | 48~384Kbps | |
| Stream output | IP out over UDP (Unicast/Multicast),SRT, RTP,RTSP, RTMP, HTTP, HLS (RJ45, 1000M ) (8 HDMI inputs with 8 SPTS for each encoder board) | |
| System function | Network management(WEB) | |
| Chinese and English language | ||
| Ethernet software upgrade | ||
| Miscellaneous | Dimension (W×L×H) | 482mm×328mm×44mm |
| Environment | 0~45℃(work)；-20~80℃（Storage） | |
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz | |
