SFT3228S 8/16/24*HDMI Channels H.264/MPEG-4 HDMI Encoder with ASI Output
Model Number: SFT3228S
Brand: Softel
MOQ: 1
Support Encoding HEVC/ H.264
Available for 8//16/24 HDMI Inputs
IP Output through DATA (GE) over UDP and RTP/RTSP Protocol
01
Product Description
Product Overview

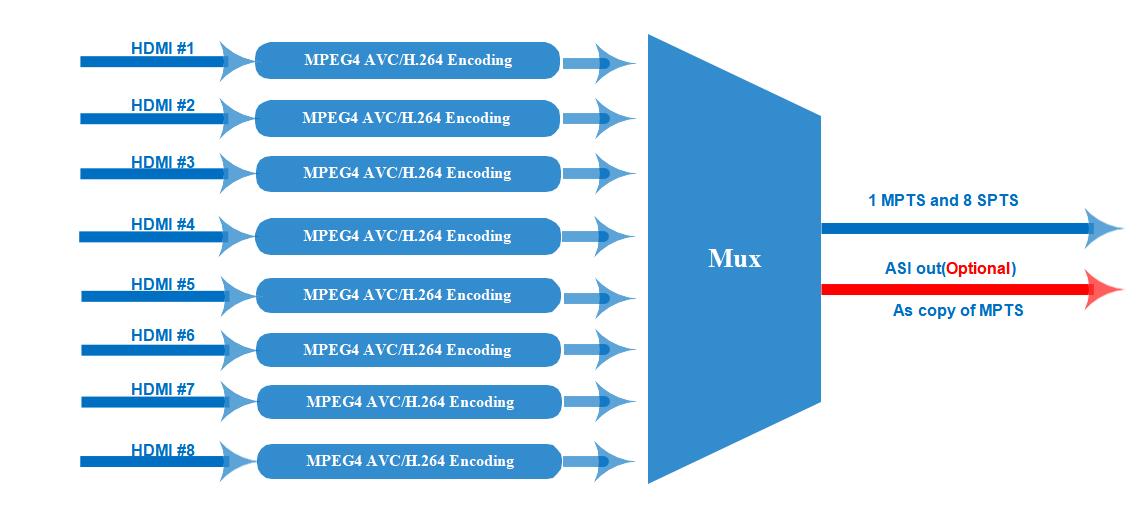

SFT3228S Multi-Channel Encoder is a professional HD/SD audio & video encoding device for digital TV/CATV systems. It has 8/16/24 HDMI inputs for option. Every 8*HDMI ports share one encoder module and each module supports 1*MPTS and 8*SPTS output. Its high integration and cost-effective design make the device widely used in a variety of digital distribution systems such as cable TV digital
head-end, digital TV broadcasting, etc.
Key Features
-8 HDMI inputs with 8 SPTS and 1 MPTS output (each encoder module), max 24 HDMI inputs
-MPEG4 AVC/H.264 video encoding format
-MPEG1 Layer II, LC-AAC, HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment
-IP output over UDP and RTP/RTSP protocol; 1 ASI out as mirror of MPTS (Optional)
-Support QR code, LOGO, caption insertion (Language Supported: 中文, English, ية عرب ال,
ไทย, руская, اردو for more languages please consult us…)
-Support the “Null PKT Filter” function
-Control via the web management, and easy updates via web
| SFT3228S 8/16/24*HDMI Channels H.264/MPEG-4 HDMI Encoder with ASI Output | ||||
| Input | 8/16/24 HDMI inputs | |||
|
Video |
Resolution |
Input | 1920×1080_60P, 1920×1080_60i,1920×1080_50P, 1920×1080_50i,
1280×720_60P, 1280×720_50P, 720 x 576_50i,720 x 480_60i |
|
| Output | 1920×1080_30P, 1920×1080_25P,1280×720_30P, 1280×720_25P,
720 x 576_25P, 720 x 480_30P |
|||
| Encoding | MPEG-4 AVC/H.264 | |||
| Bit-rate | 1~13Mbps each channel | |||
| Rate Control | CBR/VBR | |||
| GOP Structure | IP…P (P Frame adjustment, without B Frame ) | |||
|
Audio |
Encoding | MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Passthrough | ||
| Sampling rate | 48KHz | |||
| Resolution | 24-bit | |||
| Audio Gain | 0-255 Adjustable | |||
| MPEG-1 Layer 2 Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps | |||
| LC-AAC Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps | |||
| HE-AAC Bit-rate | 48/56/64/80/96/112/128 kbps | |||
| Stream output | IP output through DATA (GE) over UDP and RTP/RTSP protocol(8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder board) 1 ASI out as mirror of MPTS (Optional as order) | |||
| System function | Network management(WEB) | |||
| Chinese and English language | ||||
| Ethernet software upgrade | ||||
| Miscellaneous | Dimension (W×L×H) | 482mm×328mm×44mm | ||
| Environment | 0~45℃(work)；-20~80℃（Storage） | |||
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz | |||
