SFT3107 ISDB-T/DVB-C/S/S2/T/ATSC 6 Tuner Input Multiplexer

Model Number: SFT3107

Brand: Softel

MOQ: 1

gou Integrated demodulating and multiplexing functions

2 channels ASI input for re-multiplexing

1 IP input over UDP and RTP

Product Detail

Specifications

Principle Chart

Appearance and Description

Download

Product Description

1. Product Overview

SFT3107 Tuner Input Multiplexer is the latest demodulation and multiplexing device for digital TV broadcasting head-end system. Different from normal multiplexer, this multiplexer has 1 IP input, 2 ASI inputs, supports 6 tuner inputs (ISDB-T/DVB-C/S/S2/T/ATSC optional), two separate ASI output ports and one DATA port for two separate gigabit IP outputs. In other words, It can multiplex the RF signals from satellite into the output ports via the 6 tuners, also it can multiplex up to 2 channels ASI input MPTS into the output transport stream (MPTS). In other words, one Tuner Input Multiplexer can work as 6 standalone FTA IRD and two separate ASI output multiplexer. In conclusion, its high integration and cost effective design make this device widely used in the Next Generation of CATV Broadcasting system.

2. Key features

-Fully complying with ISO13818 and EN300 468 standard
-Integrated demodulating and multiplexing functions
-2 channels ASI input for re-multiplexing
-1 IP input over UDP and RTP
-Support accurate PCR adjusting
-Support PID filtering, re-mapping
-Two groups (each group has 2 channels) separate TS outputs
-Support IP output over UDP output as mirror of ASI output (RJ45), GE Port
-Support PSI/SI (PAT and PMT tables) generation and edit
-Huge buffer memory for saving the overflowing code stream
-Supporting to multiplex one program to all outputs
-Network long-distance upgraded
-LCD/keyboard and net management, support NMS/SNMP

SFT3107 Tuner Input Multiplexer
Input interface	1 IP + 2 ASI+6 tuners(DVB-C/DVB-S/DVB-S2/DVB-T/DVB-T2/ISDB/ATSC)
Re-multiplex	2 channels TS re-multiplex
	PID re-mapping (auto/manual optional)
	PCR accurate adjusting
	PSI/SI (PAT, PMT) tables auto generation and edition (For SFT3107);PSI/SI (PAT, PMT) and PSIP (STT, MGT, VCT) tables auto generation and edition (For SFT3107B)
Input	Packet format	204/188 self-adaption
Output port	ASI	2 groups separate outputs (each group has 2 channels)
Output port	IP	TS over UDP output as mirror of ASI output(RJ45), GE Port
PID	Output range	0x0000—0x1FFF
	PID transparent	Any PID transparent and mapping achievable
	Amount of output PID per input	64
NMS port	Ethernet port	10/100M
General	Demission(WxLxH)	482mm×410mm×44mm
	Weight	6kg
	Temperature	0~45℃(operation), -20~80℃(storage)
	Power supply	AC 110V±10%, 50/60HzOr AC 220V±10%, 50/60Hz
	Consumption	18W

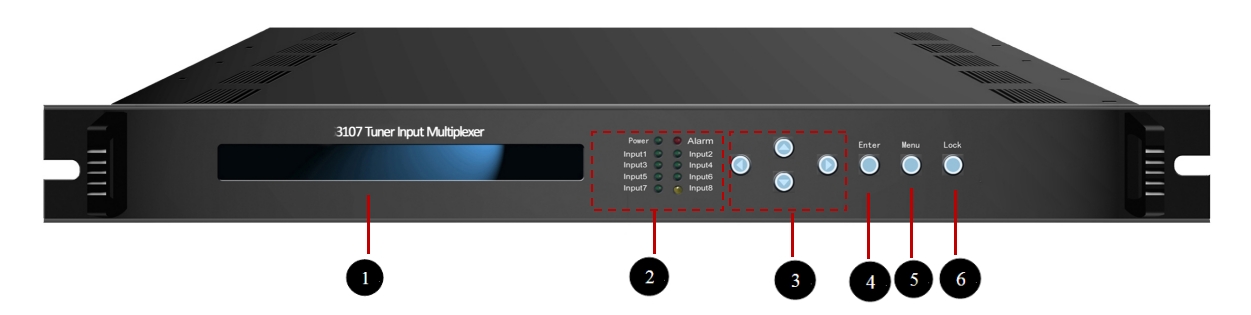

Front panel Illustration:

Indicator area: All the indicators will light on when SFT3107 multiplexer works at its current mode.

SFT3107 Front panel
1		LCD Display
2	Indicators	Power Indicator
		Alarm Indicator
		Input 1-6: when the input signal of tuner 1-6 is locked, the lighter is light.
		Input 7-8: when the TS signal of ASI 7-8 is locked, the lighter is light.
3		UP/ DOWN /LEFT/RIGHT Key
4		ENTER Key
5		MENU Key
6		LOCK Key

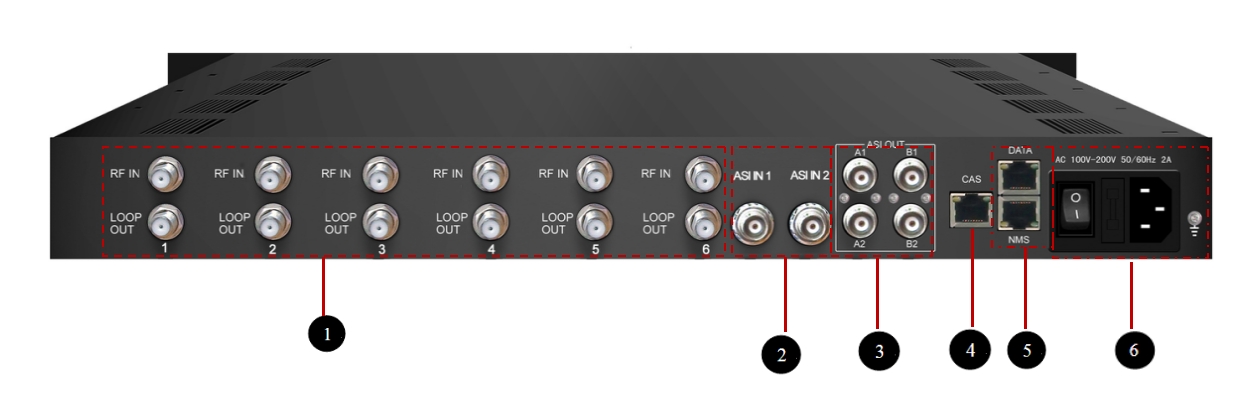

Rear panel Illustration:

SFT3107 Rear panel
1	RF IN & LOOP OUT	6 Tuners input and loop out
2	ASI IN	ASI 1: TS input port 1
		ASI 2: TS input port 2
3		ASI output ports: Group A & Group B
4		CAS Port
5		Data port and NMS Ethernet Port ( 10-100Mbps)
6		Power switch, fuse, socket and Grounding pole
