Up to 3Gbps 5GE + USB3.0 + WiFi6 AX3000 Wireless Router

Model Number:  SWR-5GE30W6

Brand: Softel

MOQ: 1

gou  Intel® CPE Wi-Fi Chipset, WiFi6 Gig+ performance

gou  Maximized Coverage, Beamforming

gou  AX3000 4-stream dual-band WiFi6 Chipsets









Product Detail

Technical Parameters

Network Application

Management

Download

The SWR-5GE30W6 5GE+USB3.0+WiFi6 AX3000 Wireless Router adopts WiFi6 technology which has redefined home WiFi. Experience up to 3x faster speeds, higher capacity, and reduced congestion overall compared to the previous AC WiFi5 standard. The AX3000 4-stream dual-band WiFi6 wireless router reaches speeds of up to 3 Gbps, for a buffer-free 4K/HD streaming and gaming experience.

The WiFi6 router lets you connect even more devices via OFDMA technology, minimizing network congestion that occurs with too many connected devices. Intel’s dual-core processor effortlessly handles all your streaming, gaming, and smart home devices. SWR-5GE30W6 uses Beamforming technology to focus WiFi signal to your devices for more reliable coverage. The SWR-5GE30W6 is easy to use and set up with Web UI.



SWR-5GE30W6 5GE + USB3.0 + WiFi6 AX3000 Wireless Router
Hardware Secifications
Dimension 115*115*180mm(L×W×H)
Net Weight 0.56Kg
Working Condition Working temp: 0~+50°C
Working humidity:5~90%(non-condensed)
Storing Condition Storing temp: -30~+60°C
Storing humidity:5~ 90% (non-condensed)
Power Adapter DC 12V, 1.5A
Power Supply ≤18W
Interface 5×GE + 4×4 WiFi6 + USB3.0
Indicators POWER / STATUS / NETWORK / RJ45
Button Reset, WPS
Interface Parameters
User 5×10/100/1000Mbps auto adaptive  Ethernet interface , RJ45 connectors(1×WAN, 4×LAN)

Interface
WLAN Interface Compliant with IEEE802.11b/g/n/ac/ax

2402 Mbps on 5GHz and 574Mbps on 2.4 GHz

Support 2×2 802.11ax(5Ghz) + 2×2  802.11ax (2.4Ghz), 5dBi  internal antenna

128 connected device
USB 1×USB 3.0 for Shared Storage/Printer
Functional Data
Management WEB/Telnet
Multicast Support IGMP v1/v2/v3
Support IGMP Proxy and MLD Proxy
Support IGMP Snooping and MLD  Snooping
WAN Supports any internet service up to 1Gbps
Wireless Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz
WiFi Encryption:WEP-64/WEP-128/ WPA/WPA2/WPA3
Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM
Smart Connect for one Wi-Fi name - One SSID for 2.4GHz and 5GHz dual band
L3/L4 Support IPv4, IPv6 and IPv4/IPv6 dual stack
Support DHCP/PPPOE/Statics
Support Static route,NAT
Support DMZ, DNS, ALG,UPnP
Support Virtual Server
Support NTP (Network Time Protocol)
DHCP Support DHCP Server & DHCP Relay
Security Support Mac filter based on MAC or URL
Support ACL
Guest Wi-Fi access and Parent Control
Fast Encryption – One-touch WPA wireless security encryption with the WPS button
DOS, Firewall

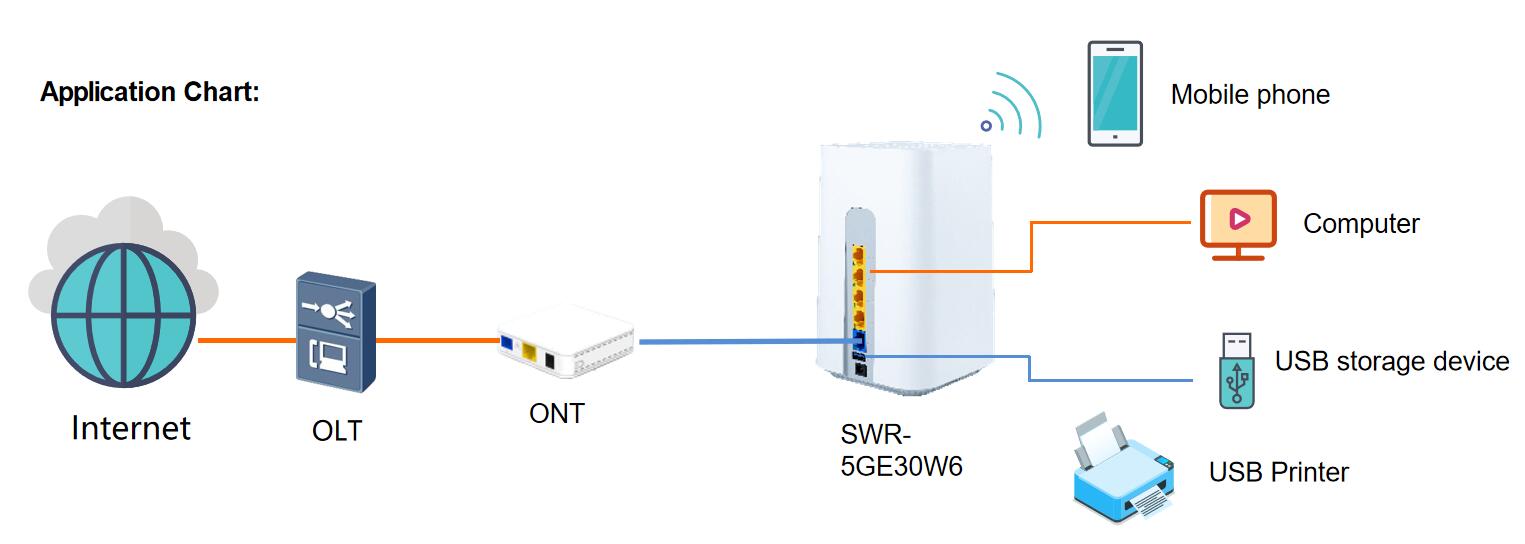

SWR-5GE30W6 Application Chart









































WiFi6 Router_SWR-5GE30W6 Datasheet-V2.0-EN.pdf
