100Gbps QSFP28 High-Speed Uplink 10G EPON OLT 8 Ports
Model Number: OLT-10E8V
Brand: Softel
MOQ: 1
High-Performance Chipset
100Gbps QSFP28 High-Speed Uplink
Compliant With IEEE 802.3ah and 802.3av
01
Product Description
Brief Introduction
OLT-10E8V is an 8-Port 10G EPON OLT that is standardized in IEEE 802.3av and evolved from the EPON standard IEEE 802.3ah. OLT-10E8V has good compatibility so that 10G EPON ONUs can coexist with EPON ONUs in an ODN.t is appropriate to be deployed in a compact room environment.

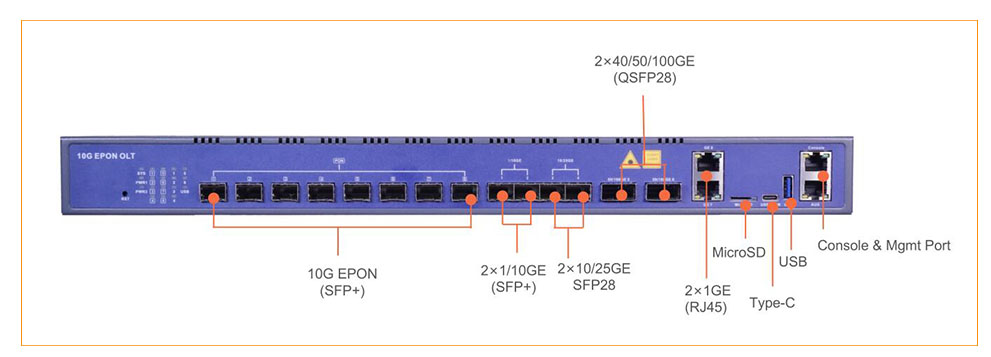

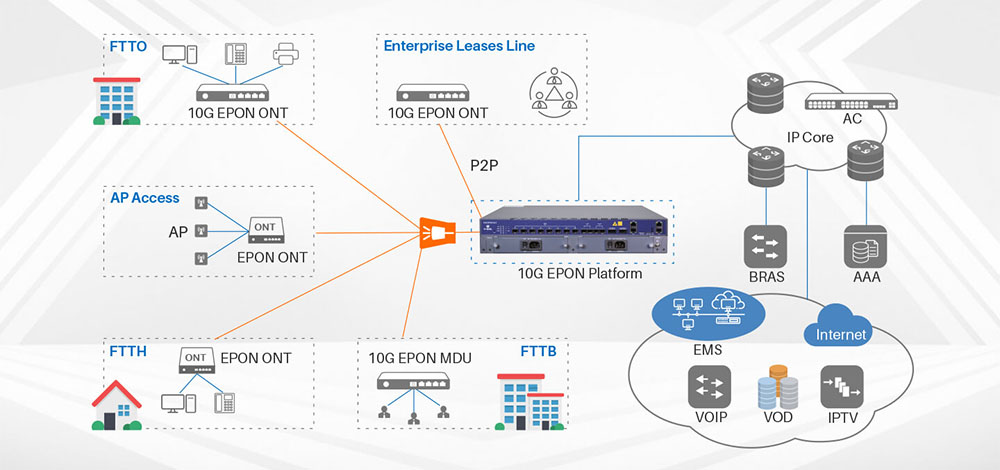

OLT-10E8V provides 2*GE(RJ45), 2*10GE(SFP+), 2*25GE(SFP28), and 2*100GE(QSFP28) slots independent interface for uplink, and 8*10G EPON ports for downlink(Maximum Split Ratio is 1:256), broadly used for FTTx networks, 5G wireless networks, and other network environments.
Order Information
| Product Name | Product Description | Power Configuration | Accessories |
| OLT-10E8V | 8*10G EPON
2*GE(RJ45)+ 2*10GE(SFP+) 2*25GE(SFP28)+2*100GE(QSFP28) |
1*AC power; 2*AC power;1*DC power;
2* DC power;1*AC power + 1* DC power. |
10G EPON SFP+ PR30 Module
10G EPON SFP+ PRX30 Module 100GE QSFP28 Module 25GE SFP28 Module 10GE SFP+ Module |
Features and Specs
Management Ports
• 1*10/100BASE-T out-band port,
• 1*CONSOLE port，1 Type-C
PON Port Specification
• Transmission Distance: 20KM
• 10Gbps 1577nm TX
• 1.25Gbps 1490nm TX
• 1.25Gbps 1310nm RX
• 10Gbps 1270nm RX
• Connector: SC/UPC
• Fiber Type: 9/125μm SMF
Management Mode
• SNMP/Telnet/CLI/WEB/SSH v2/EMS
Management Function
• Fan Group Control;
• Port Status monitoring and configuration management;
• Online ONU configuration and management;
• User management, Alarm management
Layer 2 Feature
• 16K MAC address
• Support port VLAN
• Support 4096 VLANs
• Support VLAN tag/Un-tag, VLAN transparent transmission, QinQ
• Support IEEE802.3d trunk
• Support RSTP, MSTP
• QoS based on port, VID, TOS, and MAC address
• IEEE802.x flow control
• Port stability statistics and monitoring
• Support P2P Function
Multicast
• IGMP snooping
• 8K IP Multicast Groups DHCP
• DHCP server
• DHCP relay
• DHCP snooping
• Fan Group Control;
• Port Status monitoring and configuration management;
• Online ONU configuration and management;
• User management, Alarm management
Layer 3 Features
• ARP proxy
• Static route
• 4K hardware Host Routes
• 16K hardware Subnet Routes
• Support RIPv1/v2, OSPFv2
• Support PPPoE+
Security Management
• Support IEEE802.1x, Radius, Tacacs+
• Support DHCP Snooping, DHCP Opiton82, IP Source Guard
• Support HTTP, SSHv2
IPv6 Feature
• Support IPv6 Neighbor Discovery, SLAAC Snooping
• Support DHCPv6 Server,DHPCv6 Relay, DHCPv6 Snooping
• Support IPV6 Static Route
• Support IPV6 Dynamic Route Protocol: RIPng, OSPFv3
• Support MLD V1/V2
• Support IPv6 ACL
• Support IPv6 SNMP, Telnet, HTTPs, SSH management
• Support port-based rate limitation and bandwidth control
• In compliant with IEEE802.3ah, IEEE802.3av standard
• Support data encryption, multi-cast, port VLAN, separation, RSTP, etc
• Support Dynamic Bandwidth Allocation(DBA)
• Support ONU auto-discovery/Link detection/remote upgrade of software
• Support VLAN division and user separation to avoid broadcast storm
• Support various LLID configurations and single LLID configuration
• Different users and different services could provide different QoS by means of different LLID channels
• Support power-off alarm function, easy for link problem detection
• Support broadcasting storm resistance function
• Support port isolation between different ports
• Support ACL to configure the data packet filter flexibly
• Specialized design for system breakdown prevention to maintain a stable system
• Support dynamic distance calculation on EMS online
| 100Gbps QSFP28 High-Speed Uplink 10G EPON OLT 8 Ports | ||
| Item | OLT-10EV8 | |
| Backplane Bandwidth (Gbps) | 880 | |
| Port Forwarding Rate(Mpps) | 523.776 | |
| Chassis | Rack | 1U 19 inch standard box |
| Uplink Port | QTY | 6 |
| 1/10GE(SFP +) | 2 | |
| 10/25GE(SFP28) | 2 | |
| 40/50/100GE(QSFP28) | 2 | |
| 10G EPON Port | QTY | 8 |
| Physical Interface | SFP+ Slots | |
| Connector Type | PR30/PRX30 | |
| Max splitting ratio | 1:256 | |
| Electric port | QTY | 2 |
| Physical Interface | RJ45 | |
| Rate | 1000M/100M/10M, adaptive | |
| Dimension (LxWxH) | 442mm*369mm*46.6mm | |
| Net Weight | 3.9kg | |
| Power Supply | AC 100~240 V, 50/60 Hz, 200W | |
| DC Power Supply | DC: -48V | |
| Power Consumption | ≤145W | |
| Operating Environment | Working Temperature | 0~+50°C |
| Storage Temperature | -40~+85°C | |
| Relative Humidity | 5~90% (non-condensing) | |
