As fiber access networks continue to evolve, network operators have more PON technologies to choose from than ever before. GPON remains widely used in FTTH deployments, while XG-PON and XGS-PON provide higher bandwidth for networks that need to support growing data traffic.
For operators planning a new FTTH network or upgrading an existing one, understanding the differences between GPON, XG-PON, and XGS-PON is important. The right choice depends not only on bandwidth requirements, but also on the existing network, upgrade plans, deployment scale, and the type of optical line terminal (OLT) being used.
This guide explains the main differences between GPON, XG-PON, and XGS-PON and looks at how Combo PON solutions can help operators achieve a smoother network evolution.
What Is GPON?
GPON, or Gigabit Passive Optical Network, is a widely deployed PON technology for fiber access networks.
A GPON network uses an OLT at the service provider side and ONUs or ONTs at the user side. Passive optical splitters are used between them, allowing multiple subscribers to share the same fiber infrastructure.
GPON is commonly used for:
- Residential broadband
- FTTH networks
- Small and medium-sized ISP deployments
- IPTV and voice services
- Triple-play networks
For operators with existing GPON infrastructure, continuing to use GPON can be a practical choice when current bandwidth requirements are sufficient.
Softel offers a range of GPON OLT products for different FTTH deployment requirements, including compact OLT solutions and higher-capacity OLT platforms.
What Is XG-PON?
XG-PON is a 10G-class PON technology designed to provide significantly higher downstream bandwidth than GPON.
Compared with traditional GPON networks, XG-PON can support higher-bandwidth applications and provide additional capacity for networks experiencing increasing traffic demand.
XG-PON can be considered when operators need to support applications such as:
- High-speed broadband
- Business connectivity
- High-bandwidth residential services
- Large-scale FTTH deployment
- Gradual evolution from traditional GPON networks
For network operators that are already using GPON but expect bandwidth requirements to increase, XG-PON provides another option for network evolution.
What Is XGS-PON?
XGS-PON is a symmetric 10G PON technology designed to provide 10Gbps-class upstream and downstream transmission.
This makes XGS-PON particularly suitable for applications where both download and upload bandwidth are important.
Typical applications include:
- High-speed FTTH
- Business broadband
- Enterprise access
- Cloud-based applications
- High-bandwidth data services
- Next-generation fiber access networks
Compared with GPON, XGS-PON provides substantially greater capacity and can better support networks where upstream traffic is becoming increasingly important.
GPON vs XG-PON vs XGS-PON
Although these technologies share the same basic PON architecture, their bandwidth capabilities and target applications are different.
| PON Technology | Main Characteristics | Typical Application |
|---|---|---|
| GPON | Gigabit-class PON access | Residential FTTH, IPTV, voice, broadband |
| XG-PON | 10G-class downstream-oriented PON | High-speed broadband and network upgrades |
| XGS-PON | Symmetric 10G PON | High-speed FTTH, business and enterprise access |
| Combo PON | Supports multiple PON technologies through compatible OLT solutions | Network evolution and mixed GPON/XG(S)-PON deployments |
The best option depends on the current network and the operator's future bandwidth requirements.
Why Consider a Combo PON OLT?
For operators with an existing GPON network, replacing the entire access infrastructure at once may not always be practical.
This is where a Combo PON OLT can become useful.
A Combo PON solution can support different PON technologies through the same OLT platform, helping operators manage the transition from an existing GPON network toward higher-bandwidth PON technologies.
Softel's website specifically provides an XG(S)-PON Combo OLT product category. Its products include OLT-X2, XGSPON-08V, XGSPON-08P, and the OLT-X7 Series. The product range supports combinations involving GPON, XG-PON, and XGS-PON.
This approach can be useful when operators need to:
- Continue supporting existing GPON subscribers
- Introduce higher-speed PON services
- Upgrade the network in stages
- Reduce disruption during network evolution
- Prepare the access network for future bandwidth demand
Softel OLT Solutions for Different Network Requirements
Softel provides several OLT solutions covering GPON, XG-PON, XGS-PON, and Combo PON applications.

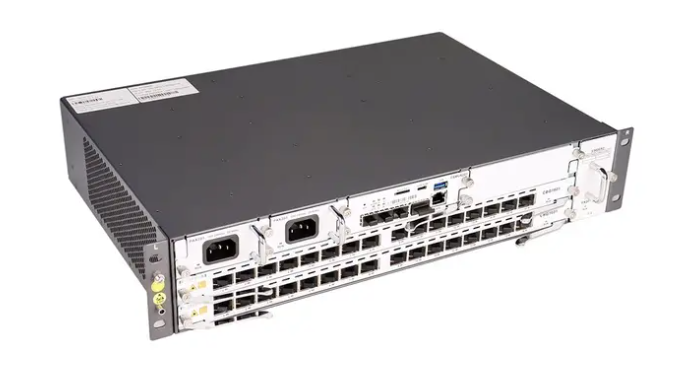

OLT-X2 Combo PON
The OLT-X2 Combo PON 2 Ports XGSPON OLT is one of Softel's Combo PON solutions.
Its product configuration includes service cards supporting GPON and XG(S)-PON Combo PON ports. This makes the OLT-X2 suitable for operators looking for a compact platform for multi-technology PON deployment.
XGSPON-08V
The XGSPON-08V is an 8-port 10G Combo PON OLT.
According to Softel's product information, it supports XGS-PON, XG-PON, and GPON modes and is designed to support smooth upgrades from GPON to XG(S)-PON. The platform also provides high-speed uplink interfaces for high-bandwidth network deployment.
This makes it a suitable option for operators that want to introduce 10G-class PON access while maintaining a flexible network architecture.
OLT-X7 Series
For larger-scale deployments, Softel's OLT-X7 Series GPON XG-PON XGS-PON Combo PON Chassis OLT provides a chassis-based platform.
The OLT-X7 supports multiple access methods, including GPON, XG-PON, XGS-PON, and Combo PON. Its service card configuration includes 16 GPON ports or 8 GPON & XG(S)-PON Combo PON ports, depending on the configuration.
This makes the OLT-X7 particularly relevant when operators need a scalable OLT platform for larger FTTH deployments.
How to Choose the Right PON Technology
Choosing between GPON, XG-PON, XGS-PON, and Combo PON should start with the requirements of the network rather than simply choosing the technology with the highest bandwidth.
1. Consider Your Existing Network
If the network is already based on GPON, upgrading to a higher-speed PON technology may require careful consideration of existing ONUs, OLTs, splitters, fiber infrastructure, and subscriber equipment.
A Combo PON solution can provide a more flexible approach when different PON technologies need to coexist.
2. Evaluate Bandwidth Requirements
For networks where current broadband requirements are relatively moderate, GPON may still provide sufficient access capacity.
When higher bandwidth becomes necessary, XG-PON or XGS-PON can provide additional capacity.
For applications requiring high upstream and downstream bandwidth, XGS-PON is particularly attractive because of its symmetric 10G capability.
3. Plan for Future Expansion
An FTTH network should be designed with future growth in mind.
Instead of only considering today's subscriber bandwidth requirements, operators should also evaluate expected subscriber growth, increasing upstream traffic, cloud services, video applications, and enterprise connectivity requirements.
A scalable OLT platform can make future network expansion easier.
4. Consider Deployment Scale
A compact OLT may be suitable for smaller access networks, while a chassis-based platform may be more appropriate for larger deployments.
Softel's product portfolio includes different OLT configurations, ranging from compact GPON and XG(S)-PON OLTs to chassis-based platforms such as the OLT-X7 Series.
GPON, XG-PON, XGS-PON or Combo PON: Which One Is Right for You?
There is no single PON technology that is ideal for every FTTH network.
GPON remains a practical option for many conventional broadband access networks.
XG-PON provides higher bandwidth and can be considered when network traffic is growing and higher-speed access is required.
XGS-PON is a strong choice for networks that require high-capacity and symmetric 10G-class access.
Combo PON can be particularly useful for operators that need to support existing GPON services while introducing XG-PON or XGS-PON technologies.
The final decision should consider the existing infrastructure, subscriber requirements, expected traffic growth, network scale, and long-term upgrade strategy.
With OLT solutions covering GPON, XG-PON, XGS-PON, and Combo PON applications, Softel provides different options for operators planning new FTTH deployments or upgrading existing fiber access networks.
Frequently Asked Questions
Is XGS-PON better than GPON?
XGS-PON provides much higher bandwidth than GPON and offers symmetric 10G-class transmission. However, whether it is the better choice depends on the network's bandwidth requirements, existing infrastructure, and upgrade plans.
Can GPON and XGS-PON coexist in the same network?
They can coexist when the network uses appropriate PON equipment designed to support multiple PON technologies. Combo PON OLT solutions are one approach for supporting network evolution between GPON and higher-speed PON technologies.
What is the difference between XG-PON and XGS-PON?
The key difference is the transmission capability. XG-PON is designed around higher downstream capacity, while XGS-PON provides symmetric 10G-class upstream and downstream transmission.
What is a Combo PON OLT?
A Combo PON OLT is an OLT solution designed to support multiple PON technologies, such as GPON together with XG-PON or XGS-PON. It can help operators introduce higher-speed PON services while maintaining support for existing network deployments.
Which Softel OLT supports GPON, XG-PON and XGS-PON?
Softel's OLT-X7 Series supports GPON, XG-PON, XGS-PON, and Combo PON access methods. The XGSPON-08V also supports XGS-PON, XG-PON, and GPON modes.
