As more devices connect to the internet, choosing the right wireless router has become an important part of building a reliable home, FTTH, or small-business network. A router needs to do more than provide internet access. Wireless speed, network capacity, coverage, wired ports, and device compatibility can all affect the actual user experience.
For users comparing WiFi 5 and WiFi 6 routers, the choice is not always simply about selecting the newer technology. The right option depends on the internet connection, number of connected devices, coverage requirements, and expected network usage.
SOFTEL provides different dual-band Gigabit WiFi router solutions for these requirements. Two representative models are the SWR-2100 Dual-band WiFi 6 2100M Gigabit WiFi Router and the SWR-1200L4 FTTH Network 4 Antennas 1200M Gigabit Dual-band WiFi 5 Wireless Router.
So, what are the differences between these two routers, and which one is better for your network?
WiFi 5 vs WiFi 6: What Is the Difference?
WiFi 5 and WiFi 6 are different generations of WiFi technology.
WiFi 5, commonly associated with IEEE 802.11ac, has been widely used in home broadband, FTTH, offices, and other wireless networking applications. It provides good performance for everyday internet access and remains suitable for many networks.
WiFi 6 is the newer generation of WiFi technology. It is designed to provide better network efficiency and handle environments where more wireless devices are connected simultaneously.
However, choosing a WiFi 6 router does not automatically mean every application will experience a dramatic speed increase. The final network performance also depends on the broadband connection, client devices, Ethernet infrastructure, wireless environment, and network configuration.
For this reason, comparing the actual hardware specifications and application requirements is more useful than looking at the WiFi generation alone.
SWR-2100 vs SWR-1200L4: Key Differences at a Glance
Before looking at individual features, the main differences between the two SOFTEL routers can be summarized as follows.
| Feature | SWR-2100 Dual-band WiFi 6 Router | SWR-1200L4 Dual-band WiFi 5 Router |
| WiFi Generation | WiFi 6 | WiFi 5 |
| Maximum Wireless Rate | 2100Mbps | 1200Mbps |
| 2.4GHz Speed | 800Mbps | 300Mbps |
| 5GHz Speed | 1733Mbps | 867Mbps |
| Frequency Bands | 2.4GHz + 5GHz | 2.4GHz + 5GHz |
| Antennas | 4 × 2.4GHz + 4 × 5GHz | 2 × 2.4GHz + 2 × 5GHz |
| Chipset | MT7621A + MT7615N + MT7603E | MT7621D + MT7603E + MT7613B |
| Memory / Storage | 128MB / 16MB | 128MB / 8MB |
| LAN Ports | 4 × 10/100/1000Mbps | 4 × 10/100/1000Mbps |
| WAN Port | 1 × 10/100/1000Mbps | 1 × 10/100/1000Mbps |
| Wireless Modes | Wireless Router / WISP / AP | Wireless Router / WISP / AP |
| Power Supply | 12V DC / 1.5A | 12V DC / 1A |
| Dimensions | 234 × 148 × 31mm | 160 × 110 × 30mm |
| Certification | CE, RoHS | CE, RoHS |
| Button | WPS / Reset | WPS / Reset |
1. Wireless Speed: 2100Mbps vs 1200Mbps
One of the most obvious differences is the rated wireless speed.
The SWR-2100 provides a combined wireless rate of up to 2100Mbps, with up to 800Mbps on 2.4GHz and 1733Mbps on 5GHz.
The SWR-1200L4, meanwhile, provides a combined wireless rate of up to 1200Mbps, consisting of 300Mbps on 2.4GHz and 867Mbps on 5GHz.
This gives the SWR-2100 a considerable advantage on paper.
However, the rated wireless speed should not be interpreted as the actual internet speed that a user will always receive. Actual throughput depends on factors such as the connected device, broadband service, wireless interference, distance from the router, and network configuration.
For networks with higher broadband speeds or a larger number of connected devices, the higher wireless capacity of the SWR-2100 provides more room for network traffic.
For standard broadband applications, the 1200Mbps class of the SWR-1200L4 may already be sufficient.
2. WiFi 5 vs WiFi 6: Which One Handles More Devices?
The number of wireless devices in a network has increased significantly.
A typical network may include:
- Smartphones
- Laptops
- Smart TVs
- IP cameras
- Game consoles
- Tablets
- Smart home devices
- Network printers
- IoT equipment
This is where the difference between WiFi 5 and WiFi 6 becomes more relevant.

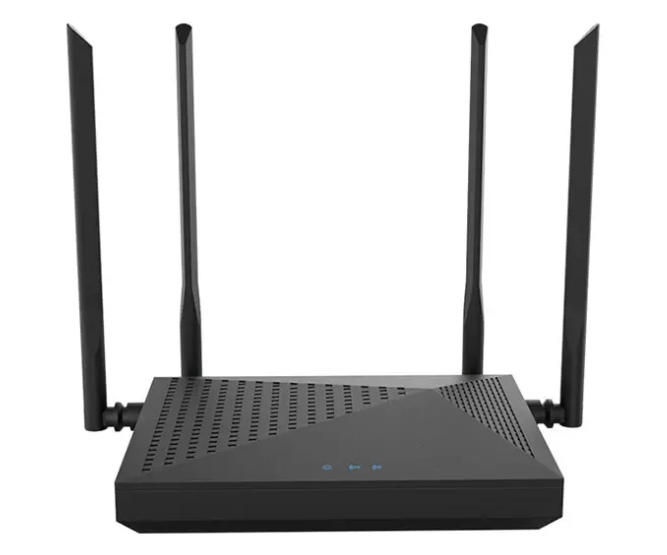

The SWR-1200L4 is a WiFi 5 dual-band router designed for FTTH networks and large apartments. It is suitable for users who need stable wireless connectivity, Gigabit Ethernet, and broad coverage without necessarily moving to the latest WiFi generation.

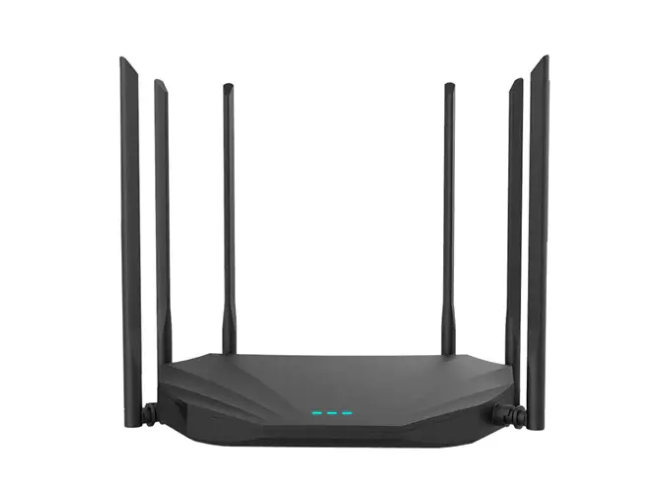

The SWR-2100, on the other hand, is positioned as a 2100M dual-band WiFi 6 Gigabit router with higher wireless capacity.
For a network where many users and devices need to access the wireless network at the same time, the SWR-2100 is the more suitable choice.
3. Antenna Configuration and Wireless Coverage
A router's coverage is affected by much more than the number of antennas. Antenna configuration, RF design, transmit power, router placement, building structure, interference, and client devices all affect the final coverage.
That said, the two models have different antenna configurations.
The SWR-2100 uses:
- 4 × 2.4GHz antennas
- 4 × 5GHz antennas
The SWR-1200L4 uses:
- 2 × 2.4GHz antennas
- 2 × 5GHz antennas
The SWR-1200L4 is designed with four external antennas and is intended for applications where wireless coverage and signal penetration are important.
Therefore, the SWR-1200L4 should not be viewed simply as a lower-performance router because it uses fewer antenna chains. It is designed around a different performance and application target.
For customers looking for higher wireless capacity and a newer WiFi platform, the SWR-2100 provides a stronger hardware configuration.
4. Gigabit Ethernet Ports for FTTH Networks
Both routers include full Gigabit Ethernet ports.
Each model provides:
- 1 × 10/100/1000Mbps WAN port
- 4 × 10/100/1000Mbps LAN ports
This is an important point for FTTH deployments.
Even when wireless performance is high, wired connections remain important for devices such as:
- Desktop computers
- Smart TVs
- Network video equipment
- Access points
- Switches
- Game consoles
- Other fixed network devices
Because both routers provide Gigabit WAN and LAN interfaces, they can be integrated into Gigabit Ethernet network environments without requiring users to rely entirely on wireless connections.
For an FTTH deployment, the router can therefore work as part of a broader network architecture rather than functioning only as a standalone WiFi access point.
5. Memory and Hardware Configuration
Hardware resources are another difference between the two models.
The SWR-2100 provides:
128MB memory + 16MB storage
while the SWR-1200L4 provides:
128MB memory + 8MB storage.
The SWR-2100 uses the MT7621A + MT7615N + MT7603E chipset combination, while the SWR-1200L4 uses MT7621D + MT7603E + MT7613B.
For an OEM or network equipment buyer, these specifications can be useful when evaluating the router for a particular deployment.
Instead of looking only at the advertised wireless rate, buyers should consider the complete hardware configuration, including processing resources, memory, Ethernet interfaces, wireless architecture, and required network functions.
6. Which Router Is Better for FTTH Applications?
FTTH networks are increasingly common in residential broadband deployments.
However, not every FTTH application has the same requirements.
For a relatively straightforward broadband deployment where the main requirements are:
- Dual-band WiFi
- Gigabit Ethernet
- Stable wireless connectivity
- Large-area coverage
- Cost-effective deployment
the SWR-1200L4 can be a practical choice.
It is particularly suitable for residential FTTH environments such as apartments, villas, and other applications where reliable dual-band WiFi and signal coverage are important.
For higher-performance networks with more wireless traffic, the SWR-2100 provides a higher rated wireless capacity and a larger storage configuration.
This makes it more suitable for applications where network capacity is a priority.
7. SWR-2100 vs SWR-1200L4: Which Router Should You Choose?
There is no single router that is best for every network.
The better choice depends on the deployment requirements.
Choose the SWR-2100 if you need:
- WiFi 6 technology
- Up to 2100Mbps combined wireless rate
- Higher 2.4GHz and 5GHz wireless capacity
- More antenna resources
- 128MB memory and 16MB storage
- A router for higher-density wireless environments
- A solution designed with future network upgrades in mind
The SWR-2100 Dual-band WiFi 6 2100M Gigabit WiFi Router is therefore a better fit for users and network operators looking for higher wireless performance and greater network capacity.
Choose the SWR-1200L4 if you need:
- WiFi 5 connectivity
- Up to 1200Mbps combined wireless rate
- Full Gigabit WAN and LAN ports
- Four external antennas
- FTTH network compatibility
- Large-area wireless coverage
- A practical solution for homes, apartments, and villas
The SWR-1200L4 FTTH Network 4 Antennas 1200M Gigabit Dual-band WiFi 5 Wireless Router is particularly suitable when reliable dual-band WiFi, Gigabit connectivity, and FTTH deployment are more important than moving to the latest WiFi generation.
WiFi 6 vs WiFi 5: Which One Is Better?
If the question is simply "Is WiFi 6 better than WiFi 5?", the answer is yes in terms of generation and overall network capability.
But "better" does not always mean "necessary."
For a basic broadband network with a limited number of devices, a well-designed WiFi 5 router can still provide reliable performance.
For networks with more connected devices, higher bandwidth requirements, and plans for future upgrades, WiFi 6 is generally the more forward-looking option.
The decision should therefore be based on the entire network rather than the WiFi version alone.
SWR-2100 vs SWR-1200L4: Final Comparison
The two SOFTEL routers target different deployment requirements.
The SWR-2100 focuses on higher wireless capacity, WiFi 6 connectivity, and performance for networks with heavier wireless traffic.
The SWR-1200L4 focuses on practical FTTH deployment, dual-band WiFi 5 connectivity, Gigabit Ethernet, and wide-area wireless coverage.
In simple terms:
SWR-2100 = higher wireless performance and capacity
SWR-1200L4 = practical FTTH connectivity and coverage
For home broadband, villas, apartments, small offices, and ISP deployments, the right choice should be based on the actual broadband speed, number of connected devices, coverage requirements, and expected network growth.
SOFTEL's router portfolio provides different wireless networking solutions for various deployment requirements, including WiFi 5 routers, WiFi 6 routers, Mesh routers, wireless APs, and CPE products.
